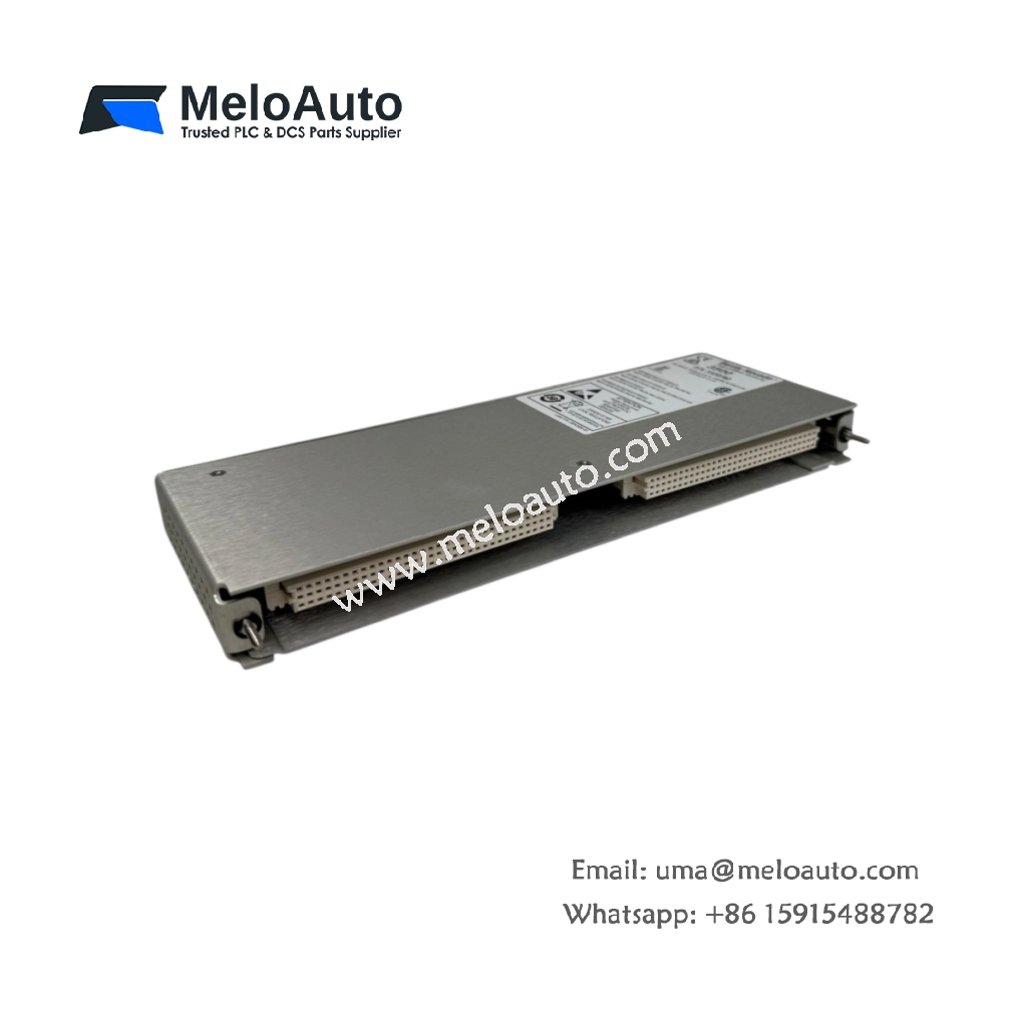

Bently Nevada 3500/40 126615-01 Proximitor I/O Module

Key Technical Specifications at a Glance

Product Overview and Core Functionality

This module serves as a critical front-end signal conditioner for the 3500 Series monitoring system. It accepts raw signals from up to four non-contact eddy current proximity probes. The 3500/40 126615-01 then converts these inputs into precise DC voltages proportional to shaft vibration and position. Furthermore, the module provides a buffered output for each channel. This feature enables direct connection to external diagnostic equipment like oscilloscopes or data acquisition systems. Consequently, field engineers gain a flexible interface for real-time machine health analysis. The module fits seamlessly into the standard 3500 rack and connects through both front and backplane interfaces.

Advanced Signal Processing and Monitoring Capabilities

The Bently Nevada 3500/40 126615-01 accepts the probe’s high-frequency AC signal and low-frequency gap voltage. It then processes these signals to extract critical parameters for machine protection. Specifically, the module provides outputs for radial vibration, thrust position, and eccentricity measurements. Each channel operates independently, offering redundancy for critical turbine and compressor applications. The module also incorporates internal peak detectors and averaging circuits. These circuits ensure stable and accurate readings even under rapidly changing rotor dynamics.

Physical Design, Interconnectivity, and Power Integrity

The module’s compact 25 mm width saves valuable panel space in a standard 3500 chassis. Its 241 mm height aligns with other modules for uniform installation. Moreover, the 200 mm depth ensures proper clearance for rear connections. The 20-pin front connector provides secure locking for reliable signal integrity. This interface reduces the risk of accidental disconnection during maintenance. Additionally, the backplane connector routes conditioned signals to the main monitoring system. The integrated 100 µF capacitance ensures transient power stability. This feature allows the 126615-01 to maintain operation during brief AC mains disturbances.

Installation and Environmental Compliance

Operational ambient temperature ranges from 0°C to +65°C for reliable performance. Storage temperature extends from -40°C to +85°C. The module also meets CE mark requirements for European standards. For proper operation, ensure a clean, dry environment with limited airborne contaminants. Therefore, install the module in a protected control cabinet. The four channels automatically calibrate when you install the module in a powered rack. This auto-zeroing function simplifies commissioning and reduces setup time. Regular calibration checks every 12 months sustain long-term accuracy.
