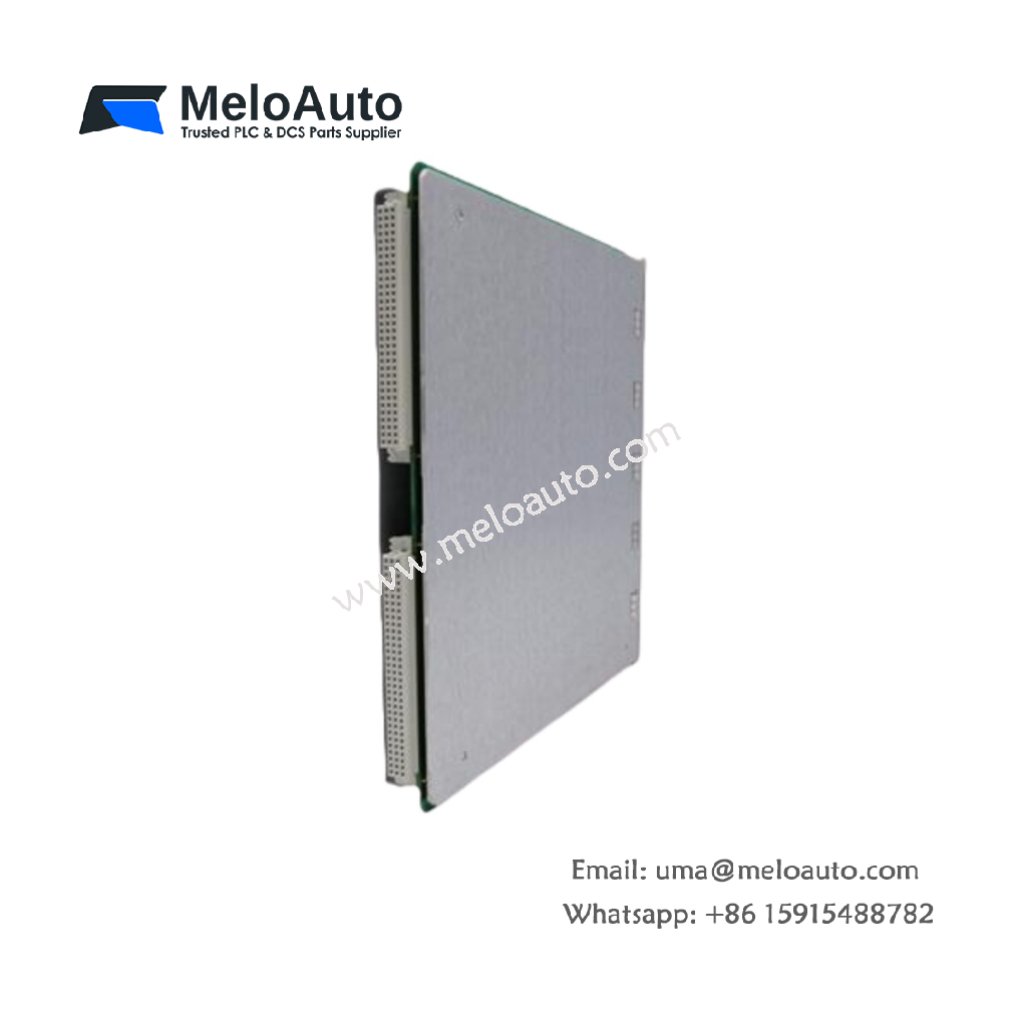

Bently Nevada 3500/32 4-Channel Relay Module

Overview

The Bently Nevada 3500/32 module integrates seamlessly with the 3500 monitoring system, additionally offering four fully programmable relay outputs. Moreover, it executes custom voting logic and Alarm Drive Logic, which ensures precise responses to Alert or Danger signals from multiple monitor channels. Consequently, this module enhances system reliability and operational safety.

Key Features

• Four Relay Outputs: Each relay performs independently, supporting AND/OR logic and flexible voting configurations.
• Alarm Drive Logic: Relays actively respond to alarm statuses from any combination of monitor channels.
• LED Indicators: OK, TX/RX, and CH ALARM LEDs provide visual feedback, allowing fast troubleshooting.
• Isolation: The module isolates inputs and outputs, thus protecting against electrical noise and ground faults.
• Arc Suppression: 250 Vrms suppressors improve relay durability and reduce electrical stress.
• Switchable Operation: Channels can switch between Normally De-energized or Normally Energized modes.
• Rugged Enclosure: The metal housing withstands harsh industrial conditions, therefore enhancing module longevity.

Technical Specifications

Applications

The Bently Nevada 3500/32 125720-01 module controls alarms, indicator lights, and shutdown valves in safety-critical industrial environments. Additionally, it ensures continuous monitoring and reliable operation in harsh conditions. Furthermore, its configurable relays allow operators to tailor responses for complex alarm scenarios.

Dimensions and Weight

• Height: 241 mm
• Width: 24.4 mm
• Depth: 99.1 mm
• Weight: 0.4 kg
• Country of Manufacture: United States
