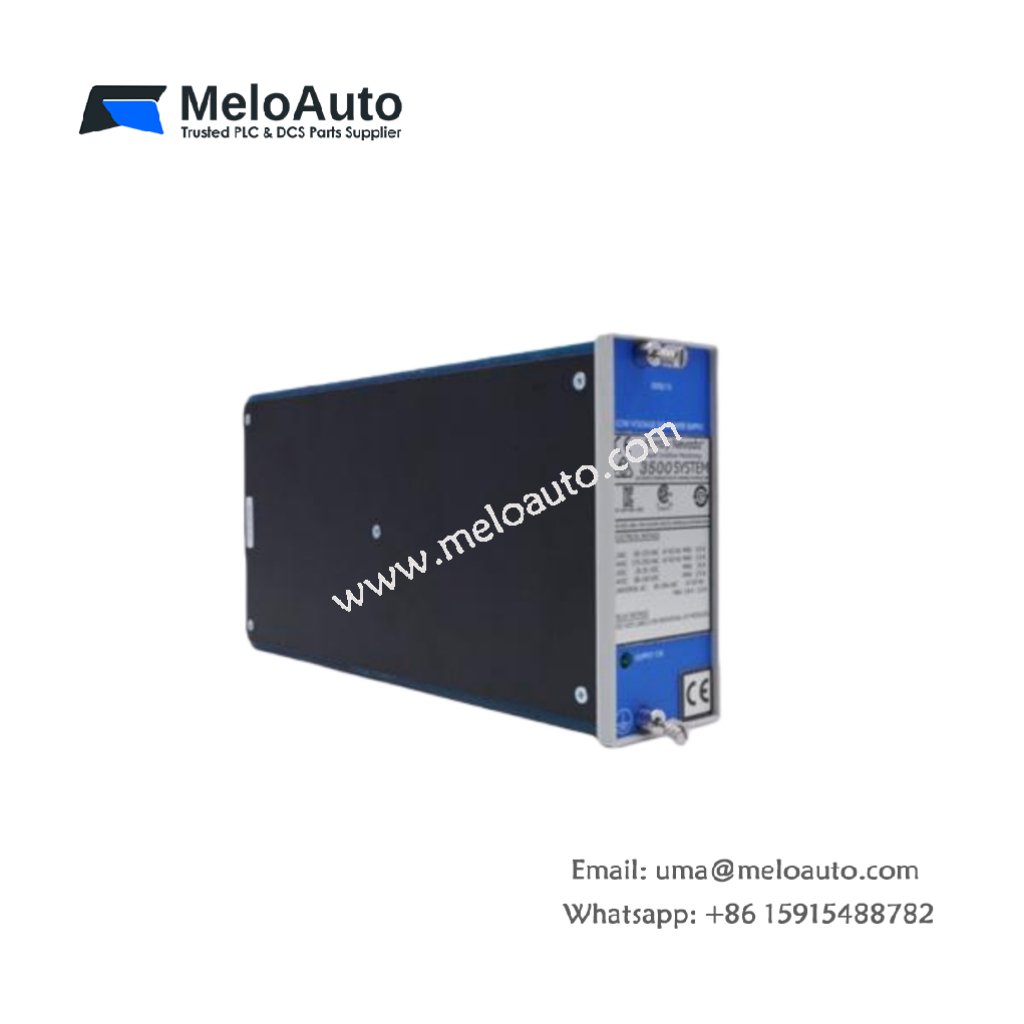

Bently Nevada 3500/15 AC & DC Power Supply

Reliable Power for the 3500 Series Machinery Protection System

The Bently Nevada 3500/15 AC and DC Power Supply Modules provide essential power to 3500 rack systems. Designed as half-height modules, they install into the designated left-side slots of the rack. These modules are flexible, supporting a variety of input voltages and offering reliable performance across different industrial applications.

You can install one or two 3500/15 power supply modules in the rack. The lower module acts as the primary power source, while the upper module serves as the backup. This dual setup ensures uninterrupted power, even during maintenance or module replacement. The system continues to operate smoothly as long as the backup power supply is in place.

Key Features

Dual Power Supply Configuration: Install one or two modules for flexibility. The lower module is primary, and the upper one is the backup.
Hot-Swappable Design: Replace or install modules without interrupting the system as long as a backup is available.
Wide Input Voltage Range: Supports various input voltages, making these modules versatile for many industrial environments.
Multiple Power Options: Choose between Universal AC, High Voltage DC, or Low Voltage DC options based on your system requirements.
Stable Operation: The power modules ensure constant power, providing reliable protection for machinery in real-time.

Technical Specifications

Feature	Specification
Product Type	3500/15 AC and DC Power Supply Module
Power Supply Options	Universal AC, High Voltage DC, Low Voltage DC
Power Input Modules	Universal AC Power Input Module, High Voltage DC Input Module, Low Voltage DC Input Module
Input Voltage (Universal AC)	110 to 220 Vac nominal (85-264 Vac rms)
Input Frequency (Universal AC)	47 to 63 Hz
Input Voltage (High Voltage DC)	88 to 140 Vdc
Input Voltage (Low Voltage DC)	20 to 30 Vdc
Physical Dimensions (Power Supply Module)	120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in)
Weight (Power Supply Module)	1.39 kg (3.06 lbs.)
Physical Dimensions (Power Input Modules)	120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x 4.5 in)
Weight (Power Input Modules)	0.34 kg (0.75 lbs.)
Rack Space Requirement	1 full-height front slot per power supply

Environmental and Operating Conditions

The 3500/15 power supply modules are designed to handle tough industrial conditions. They operate reliably in extreme temperatures and environments with high humidity, ensuring continuous system protection.

Operating Temperature: -30°C to +65°C (-22°F to +150°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Humidity: 95%, non-condensing

Installation and Mounting

You can easily integrate the 3500/15 power supply modules into the Bently Nevada 3500 rack system. These modules fit into the left-side slots of the rack. The installation process is straightforward, and when two power supplies are used, the lower one acts as the primary, while the upper one serves as the backup. This ensures the system continues operating without interruption.

Applications

The 3500/15 power supply modules are perfect for machinery protection, condition monitoring, and automation systems that require reliable power. They work seamlessly with the Bently Nevada 3500 Series, ensuring constant power delivery and optimal performance in industrial settings.
