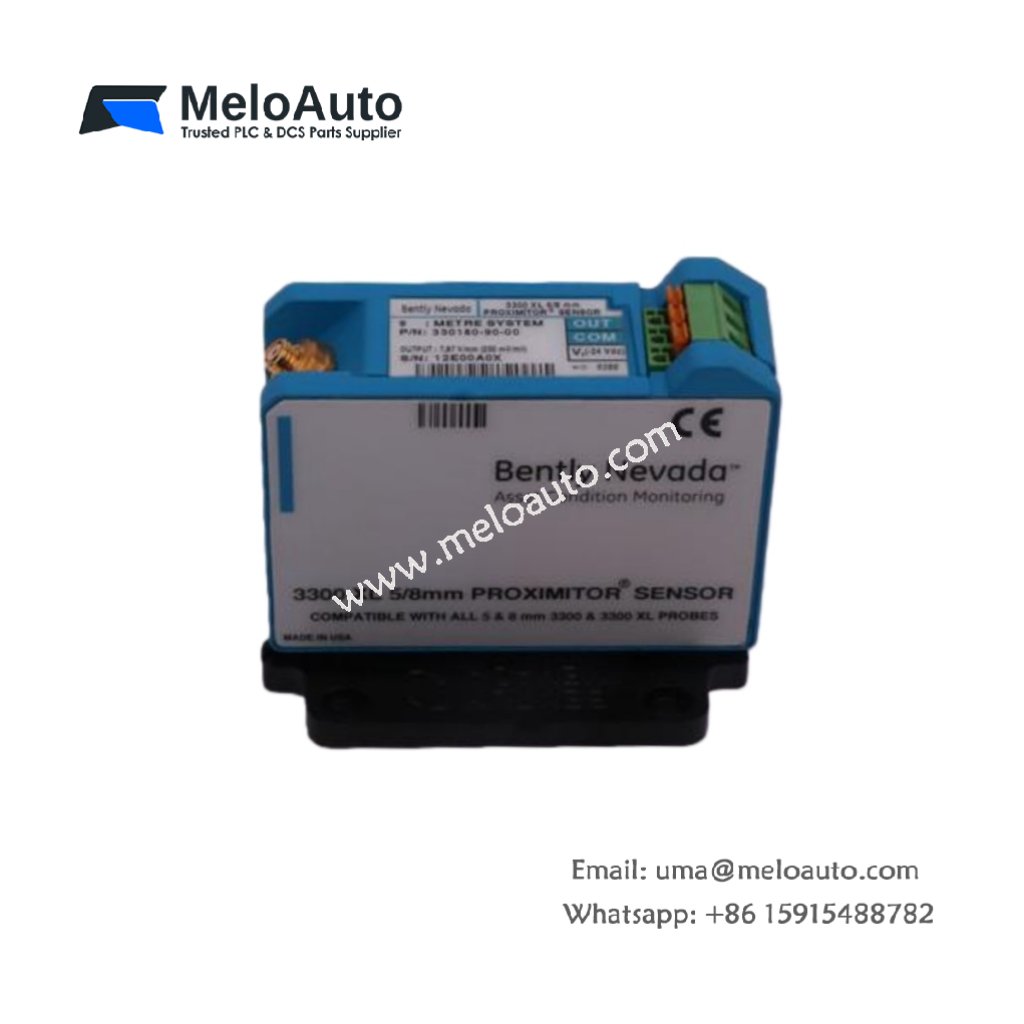

Bently 330180-90-00 3300 XL 8mm Proximity Transducer System

High-Performance Proximity Transducer for Precision Vibration and Position Measurements

The Bently Nevada 330180-90-00 is part of the 3300 XL 8 mm Proximity Transducer System, designed for accurate vibration and position measurements in critical industrial applications. This system includes:

One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor

This advanced system provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, measuring both static (position) and dynamic (vibration) values. It excels in applications involving fluid-film bearing machines, Keyphasor reference measurements, and speed monitoring.

The 3300 XL 8 mm Proximity Transducer System offers the highest performance in the eddy current proximity transducer category. Its robust design fully complies with the API 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability, ensuring reliability in demanding environments. The system also supports interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual component calibration.

Key Technical Specifications

Feature	Specification
Product Type	3300 XL 8 mm Proximity Transducer System
System Length	9.0 meters (29.5 feet)
Mounting Option	Panel mount
Probe Type	3300 XL 8 mm Probe
Extension Cable	3300 XL Extension Cable
Proximitor Sensor	3300 XL Proximitor Sensor
Power Supply	-24 Vdc
Load Resistance	10 kΩ
Target Type	AISI 4140 Steel Target
Gap Size	1.27 mm (50 mils)
Operating Temperature Range	+18°C to +27°C (+64°F to +80°F)
Altitude	Maximum of 2000 meters
Weight	0.246 kg
Shipping Weight	1.5 kg
Compliance	API 670 Standard (Mechanical configuration, linear range, accuracy, and temperature stability)

Features and Benefits

Precise Measurements: Accurately measures both static position and dynamic vibration using advanced eddy current technology.
Interchangeability: All components of the 3300 XL 8 mm system are interchangeable, eliminating the need for individual calibration.
API 670 Compliance: Fully meets API 670 requirements for mechanical configuration, linear range, accuracy, and temperature stability, ensuring industry-standard performance.
Reliable Performance: Designed to operate in challenging industrial environments, delivering dependable results even at high altitudes and varied temperatures.

Applications

Vibration Monitoring: Ideal for measuring vibrations in rotating machinery, ensuring early detection of mechanical faults.
Position Monitoring: Accurately tracks axial and radial positions in applications like turbines, compressors, and pumps.
Keyphasor Reference Signals: Provides reliable signals for synchronization in machinery monitoring systems.
