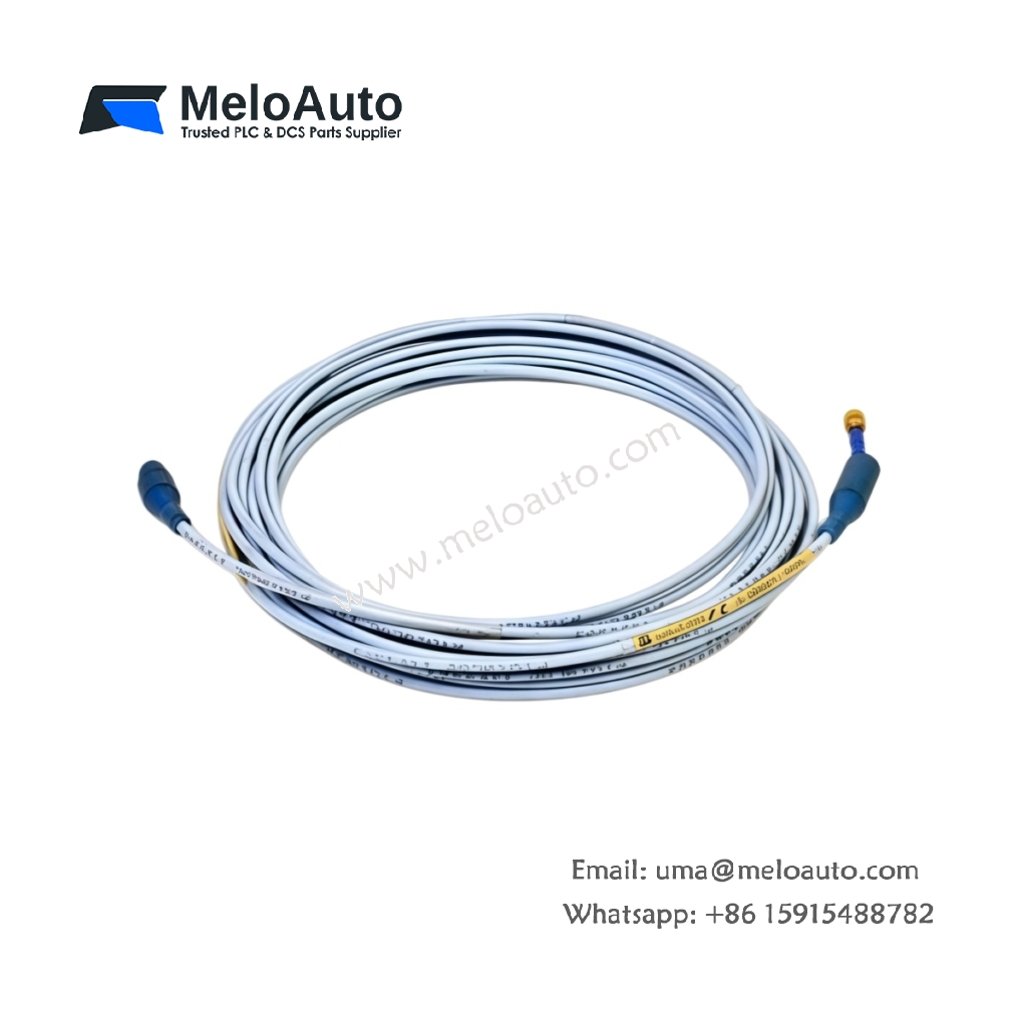

The 330130-085-02-CN extension cable connects 3300 XL proximity probes to Proximitor sensors with exceptional signal fidelity. Bently Nevada engineered this 8.5-meter cable with a connector protector for mechanically demanding installations. Engineers rely on its FluidLoc construction for dependable vibration monitoring in steam turbines and compressors.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330130-085-02-CN |
| Series | 3300 XL |
| Category | Standard Extension Cable |
| Cable Length | 8.5 meters (27.9 ft) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Capacitance | 69.9 pF/m typical |
| DC Resistance (RCORE) | 1.65 ± 0.25 Ω |
| DC Resistance (RJACKET) | 0.49 ± 0.10 Ω |
| Connector Type | Gold-plated ClickLoc coaxial |
| Connector Protector | Yes (02 option) |
| FluidLoc Option | Yes |
| Weight | 0.34 kg |
| Operating Temperature | -51°C to +177°C |
| Agency Approval | NEPSI, CCC, CE (CN option) |
| Certifications | API 670 compliant |
Key Features and Benefits
This extension cable maintains precise impedance matching between probes and Proximitor sensors. The FluidLoc design prevents oil leakage through the cable interior in turbine applications. Consequently, signal integrity remains stable even in wet or oily operating environments.
The 330130-085-02-CN incorporates patented TipLoc and CableLoc technologies for secure connections. The gold-plated ClickLoc connector requires only finger-tight torque during installation. Additionally, the connector protector shields the interface from mechanical damage and contamination.
Applications and Compatibility
This cable excels in steam turbine and compressor vibration monitoring systems. It connects directly to 3300 XL 8mm probes and Proximitor sensors. Furthermore, the China hazardous area approval package supports NEPSI and CCC compliant installations.
