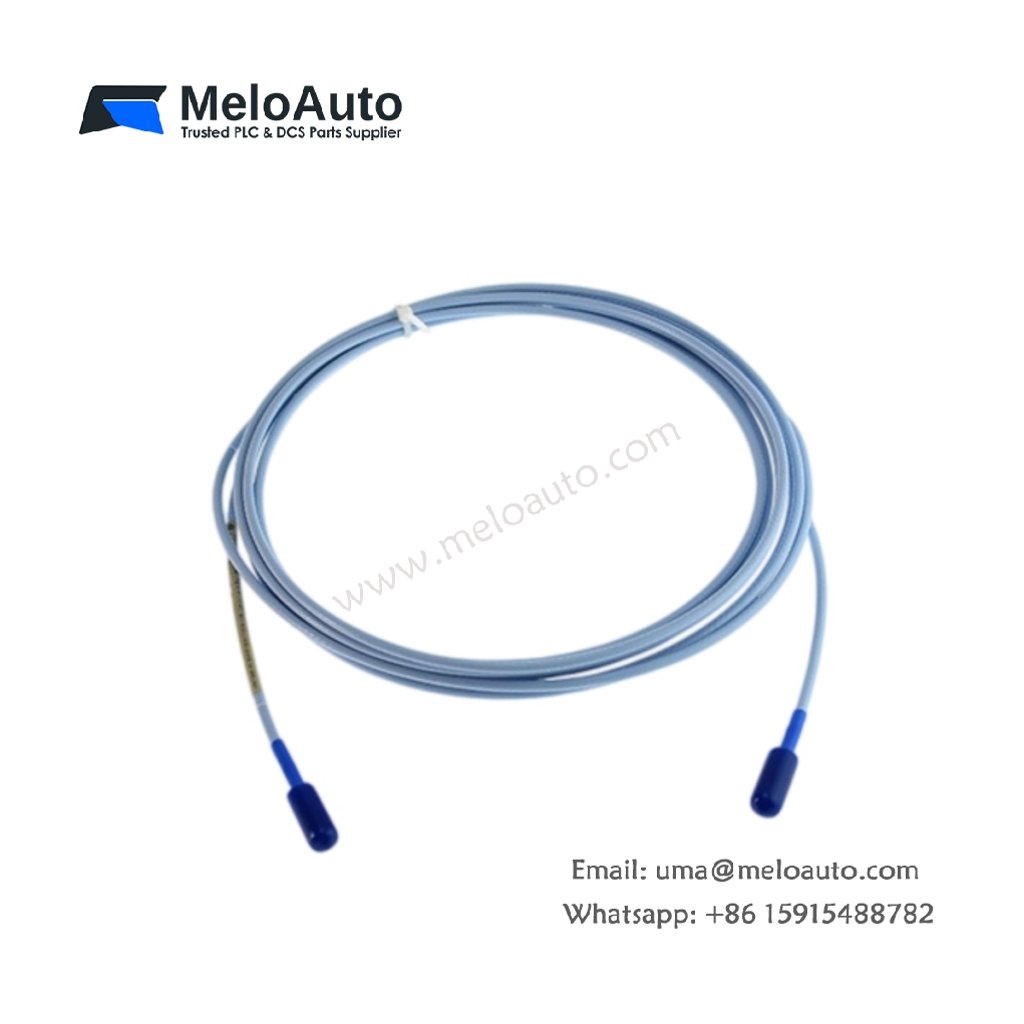

Bently Nevada 330130-045-01-05 Extension Cable

The 330130-045-01-05 serves as an extension cable within Bently Nevada 3300 XL vibration monitoring systems. This cable links proximity probes to their associated or transducer assemblies. Consequently, reliability engineers gain a dependable signal path across long machine runs.

Technical Specifications Overview

The 330130-045-01-05 combines a flexible coaxial jacket with rugged industrial connectors. Moreover, its parameter set helps engineers plan cable routing and mounting distances accurately.

Parameter	Specification
Product Type	Extension cable
Compatibility	Bently Nevada 3300 XL probe systems
Interface	Coaxial connectors at both ends
Length	Approx. 4.5 meters
Weight	Approx. 0.5 kg
Connector Count	Two coaxial connectors
Energy Storage	None (passive cable assembly)
Mounting	Flexible routing with strain relief
Operating Voltage	Signal-level only, no power feed

Interface and Connection Details

The joins a proximity probe to its module. Therefore, technicians complete signal runs without splicing or adapters. The coaxial connectors resist strain from vibration and repeated service cycles. In addition, the cable carries low-level signals only and needs no external power.

Physical Characteristics and Handling

This cable measures roughly 4.5 meters in length. Furthermore, its flexible jacket withstands bending inside crowded machine housings. The 330130-045-01-05 weighs about 0.5 kg. Consequently, one technician can route and connect it easily. Installation simply requires aligning each connector, then tightening the coupling nut.

Operational Role and Maintenance

Engineers apply the for turbine, compressor, and pump monitoring installations. Meanwhile, the coaxial shielding protects signals from electrical noise interference. The cable stores no energy and holds no battery or capacitor. Thus, it avoids periodic replacement tasks beyond visual inspection.
