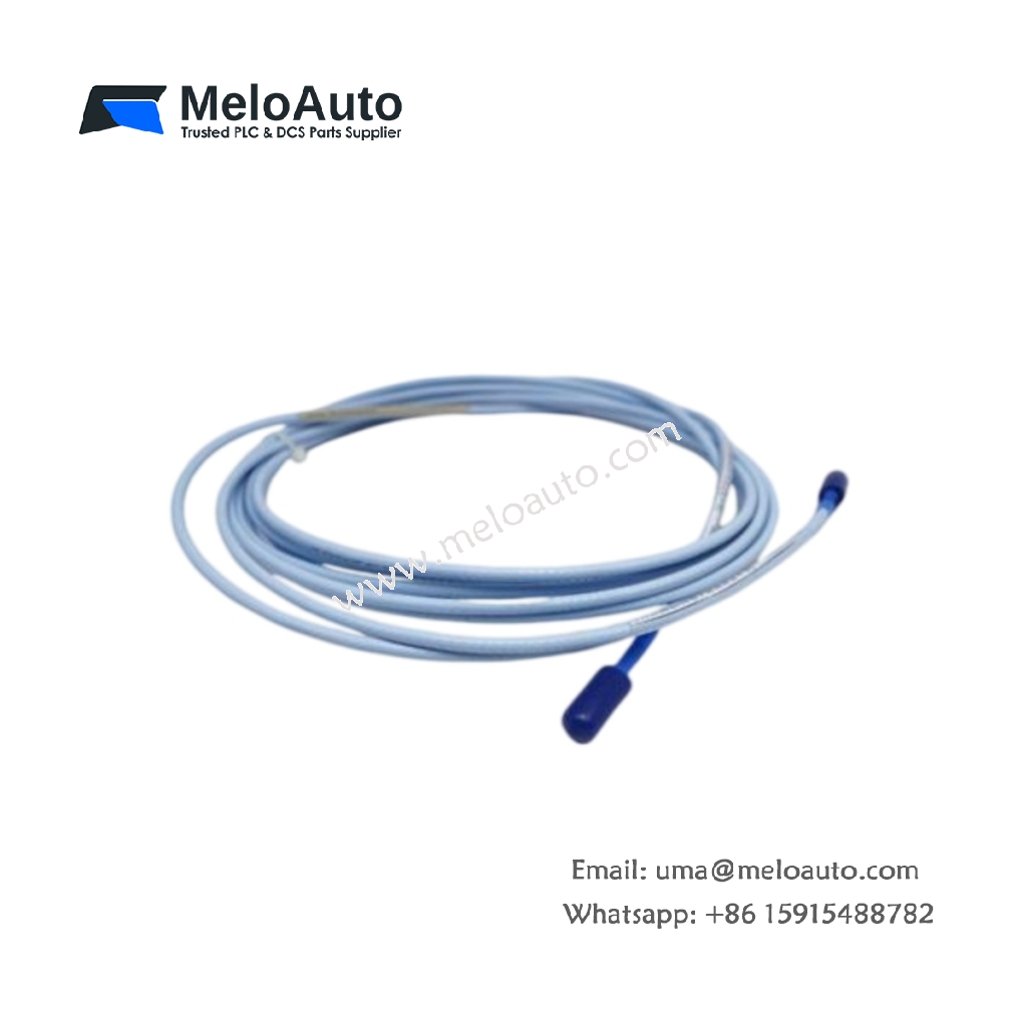

Bently Nevada 330130-030-00-05 3300 XL Extension Cable

Product Overview

The Bently Nevada 330130-030-00-05 serves as a standard extension cable within the 3300 XL series. Plant teams use this cable to link proximity probes with transducers across moderate distances. Consequently, it preserves signal integrity in harsh industrial environments.

Technical Specifications

Parameter	Detail
Model	330130-030-00-05
Series	3300 XL
Category	Extension Cable
Cable Length	3.0 meters
Connector Type	Male coaxial, 75 ohm triaxial
Weight	Approximately 0.40 kg
Outer Diameter	6.1 mm nominal
Jacket Material	Fluorinated ethylene propylene (FEP)
Operating Temperature	-35°C to +177°C
Storage Temperature	-51°C to +177°C
Capacitance	69.8 pF/m nominal
DC Resistance	0.31 ohm/m maximum
Component Count	Two connectors, one cable assembly
Energy Storage	Not applicable (passive design)

Design and Construction

This cable adopts a triaxial layout, which blocks electromagnetic interference effectively. Meanwhile, the FEP jacket withstands chemicals, moisture, and extreme heat. Therefore, it excels in turbine, compressor, and pump monitoring duties. Each assembly carries two precision connectors, and every connector locks firmly onto probes or transducers.

Compatibility and Installation

This cable connects directly with 3300 XL proximity probes and 3300 series transducers. During setup, technicians should avoid sharp bends, since tight radii may harm the shield. Furthermore, proper grounding cuts noise and maintains measurement accuracy. The 3-meter span gives flexibility for cabinet-mounted monitors.

Key Benefits

Industrial operators appreciate this cable for its stable impedance and rugged build. As a result, it reduces signal loss and extends probe reach without amplifiers. This model also satisfies API 670 requirements for machinery protection. Ultimately, its dependable performance lowers long-term maintenance expenses.
