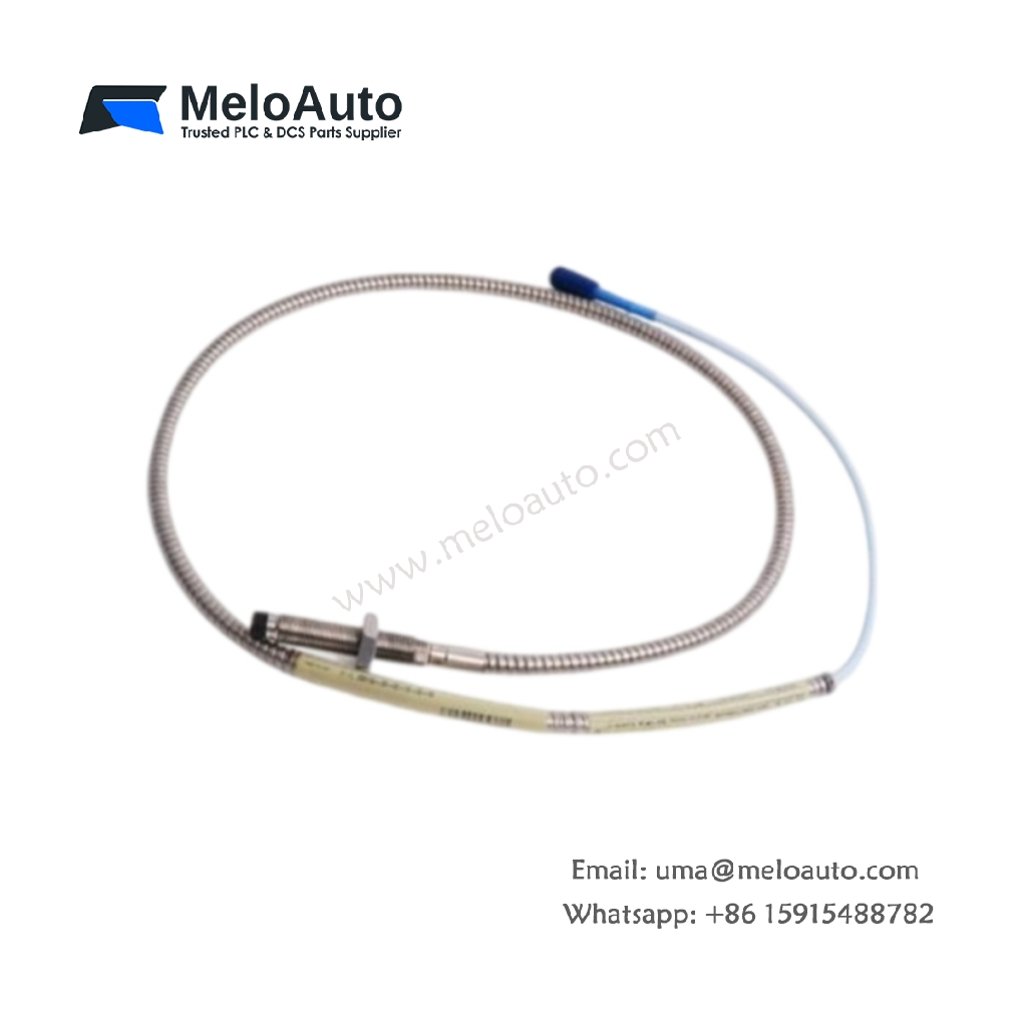

Bently Nevada 330104-00-20-10-01-CN

The 330104-00-20-10-01-CN is an 8 mm proximity probe from the Bently Nevada 3300 XL series. This component provides non-contact vibration and position measurement for critical rotating machinery. Consequently, engineers rely on it for accurate shaft displacement data in turbines and compressors.

Technical Specifications

The combines rugged construction with precise eddy current sensing technology. Each unit meets rigorous Bently Nevada standards for industrial reliability.

Parameter	Specification
Probe Diameter	8 mm
Thread Type	M10 x 1
Unthreaded Length	0 mm
Case Length	200 mm
Total Cable Length	1.0 meter (3.3 feet)
Connector Type	Miniature coaxial ClickLoc with protector
Probe DC Resistance	7.59 Ω ± 0.50
Tip Material	Polyphenylene Sulfide (PPS)
Case Material	AISI 303/304 Stainless Steel
Operating Temperature	-52°C to +177°C
Weight	0.2 kg
Agency Approval	CN (Country-specific for China)

Additionally, the stainless steel case protects internal components from mechanical damage. The 330104-00-20-10-01-CN features a molded PPS tip that encapsulates the sensing coil . Furthermore, the ClickLoc connector ensures secure signal transmission without special tools.

System Integration

The 330104-00-20-10-01-CN pairs with 3300 XL Proximitor sensors and extension cables. Therefore, technicians can achieve the standard 5-meter or 9-meter system length . The probe maintains consistent linearity across the full measurement range.

Installation requires attention to gap voltage settings. Engineers should verify the recommended gap of 1.27 mm (50 mils) during commissioning. Additionally, the minimum bend radius prevents signal degradation from mechanical stress.

Reliability and Application

Industrial environments demand robust components. Therefore, the undergoes testing for electromagnetic compatibility and thermal stability. Power generation, petrochemical, and manufacturing facilities rely on this probe for continuous machinery protection.

The supports predictive maintenance programs. By transmitting accurate vibration data, it enables early fault detection in rotating equipment. Consequently, maintenance teams can schedule repairs before costly failures occur.
