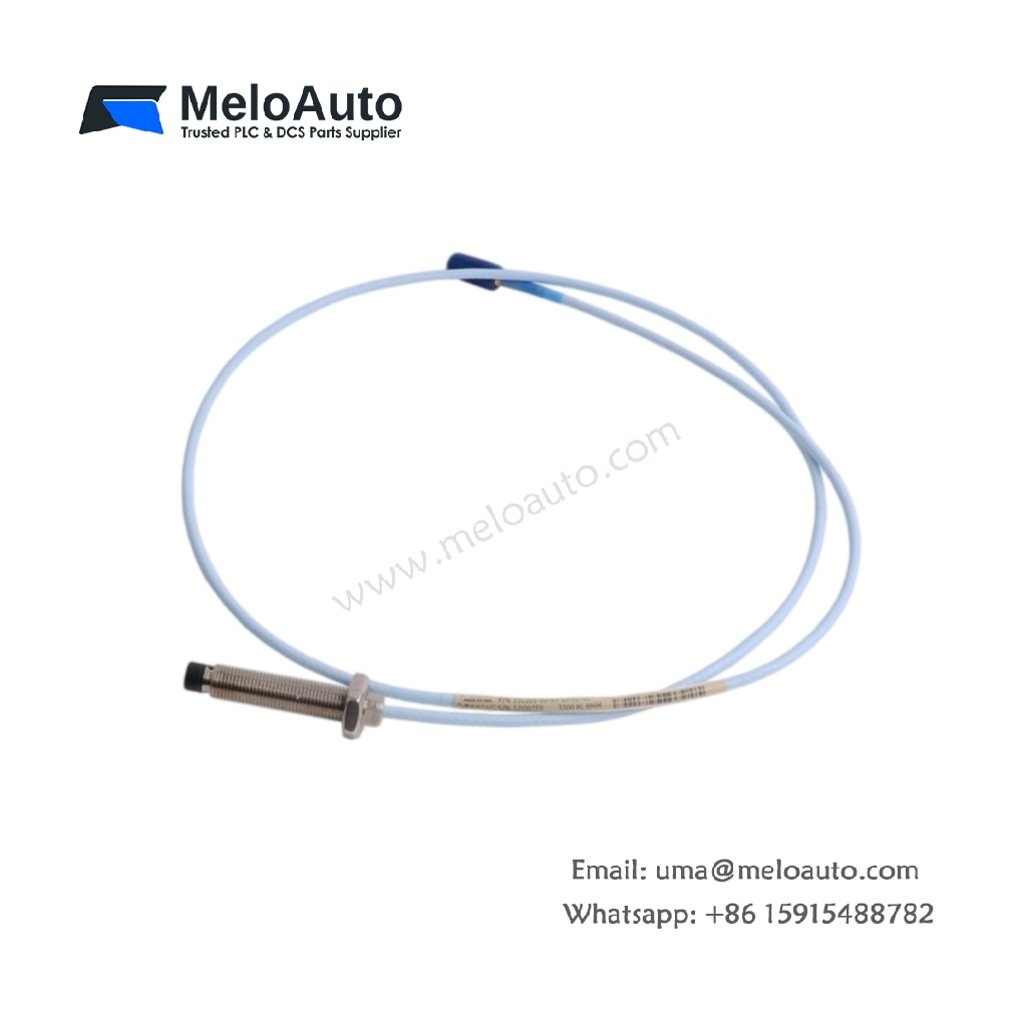

Bently Nevada 330103-05-15-10-02-00 Proximity Probe for Rotating Machinery

This sensor delivers accurate shaft vibration and position measurements for turbines and compressors. It integrates seamlessly into the Bently Nevada 3300 XL 8 mm monitoring system. Engineers select this probe for critical asset protection in power generation and oil refining. Its eddy-current technology enables non-contact sensing with exceptional signal stability.

Electrical Performance and Output Characteristics

The Bently Nevada 330103-05-15-10-02-00 provides a sensitivity of 7.87 mV/µm across its linear range. Its nominal gap voltage settles at -9.0 Vdc under normal operating conditions. The probe supports a frequency response extending from DC to 10 kHz. This wide bandwidth captures both slow shaft movement and rapid vibration events. Moreover, the built-in EMI shielding effectively reduces electrical interference from surrounding equipment.

Mechanical Design and Installation Features

The probe housing uses a 3/8-24 UNF-2A thread for straightforward mounting. Its total length reaches 51.8 mm, while the tip diameter measures 8.2 mm. This model includes a 7.6-meter extension cable with a durable coaxial connector. This cable length facilitates routing through tight machinery spaces. Furthermore, the single internal coil generates a stable high-frequency field for consistent gap voltage output.

Key Technical Specifications

The table below summarizes the critical parameters for the Bently Nevada 330103-05-15-10-02-00.

Environmental Durability and Service Life

Bently Nevada 330103-05-15-10-02-00 resists oil, hydraulic fluid, and mild corrosive agents effectively. The PPS tip material maintains structural integrity under repeated thermal cycling. All sealing components meet IP67 standards for dust and temporary water immersion. Consequently, this probe provides a service life exceeding 50,000 hours in harsh environments. The rugged construction lowers replacement frequency and reduces overall maintenance costs significantly.

Application Advantages and System Integration

This probe supplies reliable input for vibration monitoring and shaft positioning applications. Its output connects directly to 3300 XL rack-mounted monitors without extra adapters. The detailed specifications allow precise configuration for each unique rotor system. Therefore, plant engineers gain improved prediction of bearing wear and rotor imbalance. The combination of precision and durability effectively supports long-term predictive maintenance strategies.
