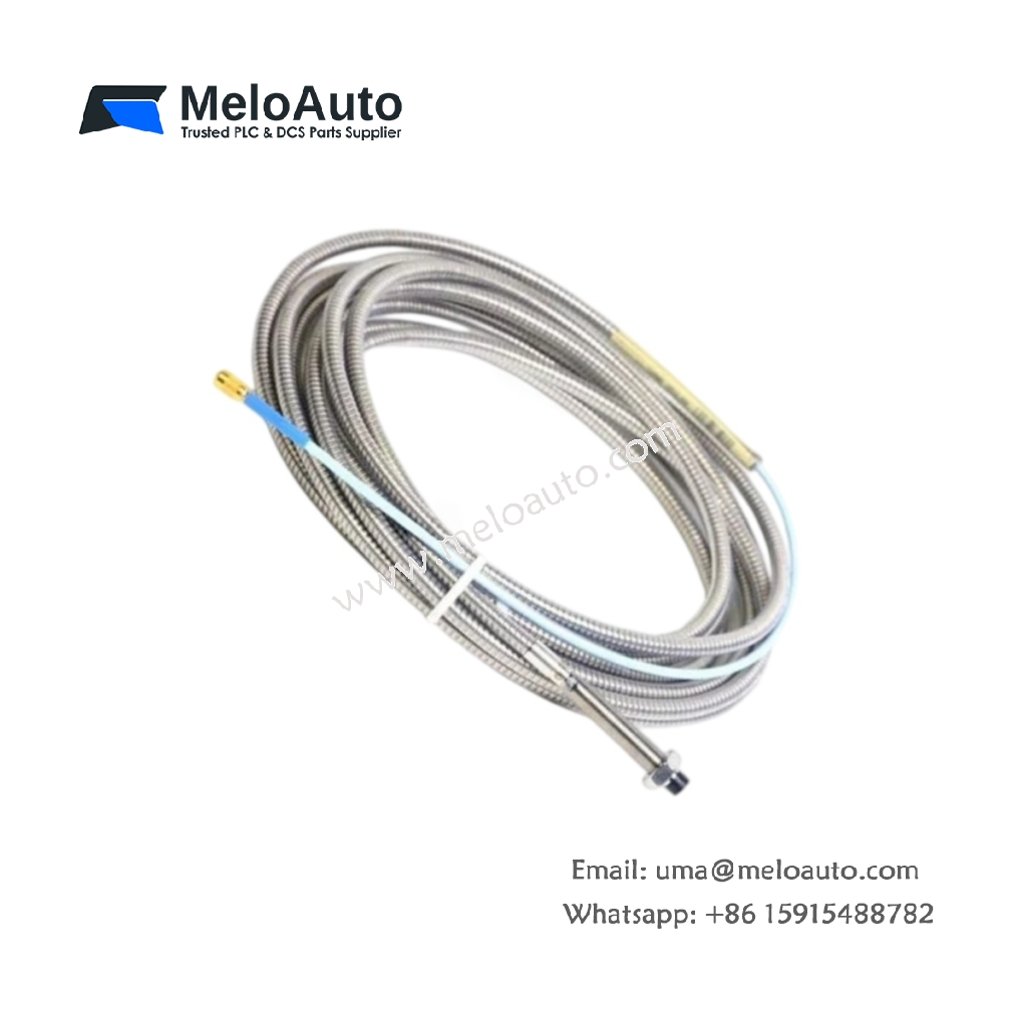

Bently Nevada 330102-00-28-05-02-05

Core Technical Specifications

The 330102-00-28-05-02-05 belongs to the Bently Nevada 3300 XL series and functions as an 8 mm eddy current proximity probe. It delivers non-contact displacement measurement for shaft vibration, axial position, and keyphasor monitoring. Therefore, maintenance teams depend on this probe for continuous rotating machinery protection.

Full Parameter Table

Parameter	Specification
Model	330102-00-28-05-02-05
Series	3300 XL
Thread Type	M10 × 1
Unthreaded Length	0 mm
Case Length	28 mm
Total Length	0.5 meter (1.6 feet)
Tip Diameter	8 mm
Tip Material	Polyphenylene sulfide (PPS)
Case Material	AISI 303/304 stainless steel
Connector	Miniature coaxial ClickLoc
Linear Range	2.0 mm (80 mils)
Scale Factor	7.87 V/mm (200 mV/mil)
Operating Temperature	-51°C to +177°C
Pressure Seal	7 bar (100 psi)
Weight	Approximately 0.13–0.5 kg depending on packaging

Physical Design and Interface Features

This probe features a fully threaded M10 × 1 case with a compact 28 mm body length. The short case suits tight mounting spaces where standard probes cannot fit. Furthermore, TipLoc molding bonds the PPS tip firmly to the stainless steel housing. Meanwhile, CableLoc construction provides 330 N of pull strength at the cable junction.

System Integration Notes

The operates as one component inside a complete 3300 XL transducer system. Consequently, it requires a matching extension cable and Proximitor sensor for accurate readings. A 0.5-meter probe typically pairs with a 4.5-meter cable, creating a 5-meter system length. However, users should always verify impedance compatibility before combining different cable lengths.
