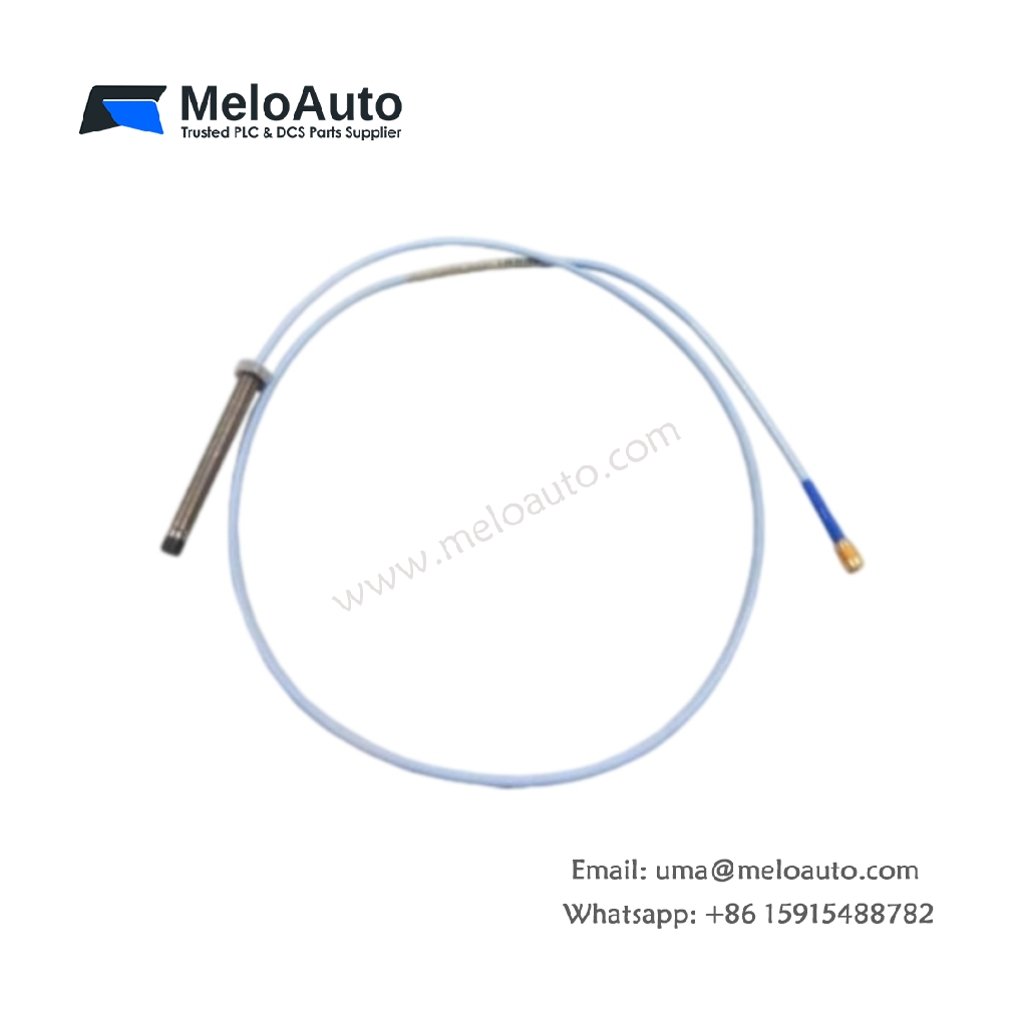

Bently Nevada 330101-15-35-10-02-05 3300 XL 8mm Proximity Probe

The 330101-15-35-10-02-05 operates as an 8 mm proximity probe within Bently Nevada 3300 XL measurement systems. This sensor measures shaft displacement, radial vibration, and axial position on rotating machinery. Consequently, reliability engineers gain precise data for turbine and compressor protection.

Technical Specifications Overview

This probe combines a sealed stainless steel body with a rugged industrial cable assembly. Moreover, its parameter set helps engineers plan mounting gaps and extension cable routing accurately.

Interface and Signal Connection Details

This probe connects through a coaxial connector at the cable end. Therefore, technicians achieve secure signal transfer to the前置器 module. The inductive sensing coil detects shaft position without physical contact. In addition, the probe receives excitation voltage from the前置器, not from external supplies.

Physical Characteristics and Mounting

The sensor features an 8 mm tip diameter and a 35 mm case length. Furthermore, its stainless steel housing resists oil, dust, and corrosive atmospheres. It weighs about 0.3 kg including the cable assembly. Consequently, it adds minimal load to bearing housings. Installation uses a threaded case with a locknut, then technicians set the target gap.

Operational Role and Maintenance

Engineers apply this probe for radial vibration monitoring, axial displacement measurement, and keyphasor reference tasks. Meanwhile, the non-contact design avoids wear across long service intervals. The sensor stores no energy and holds no battery or capacitor. Thus, it avoids periodic replacement tasks beyond cable inspection.
