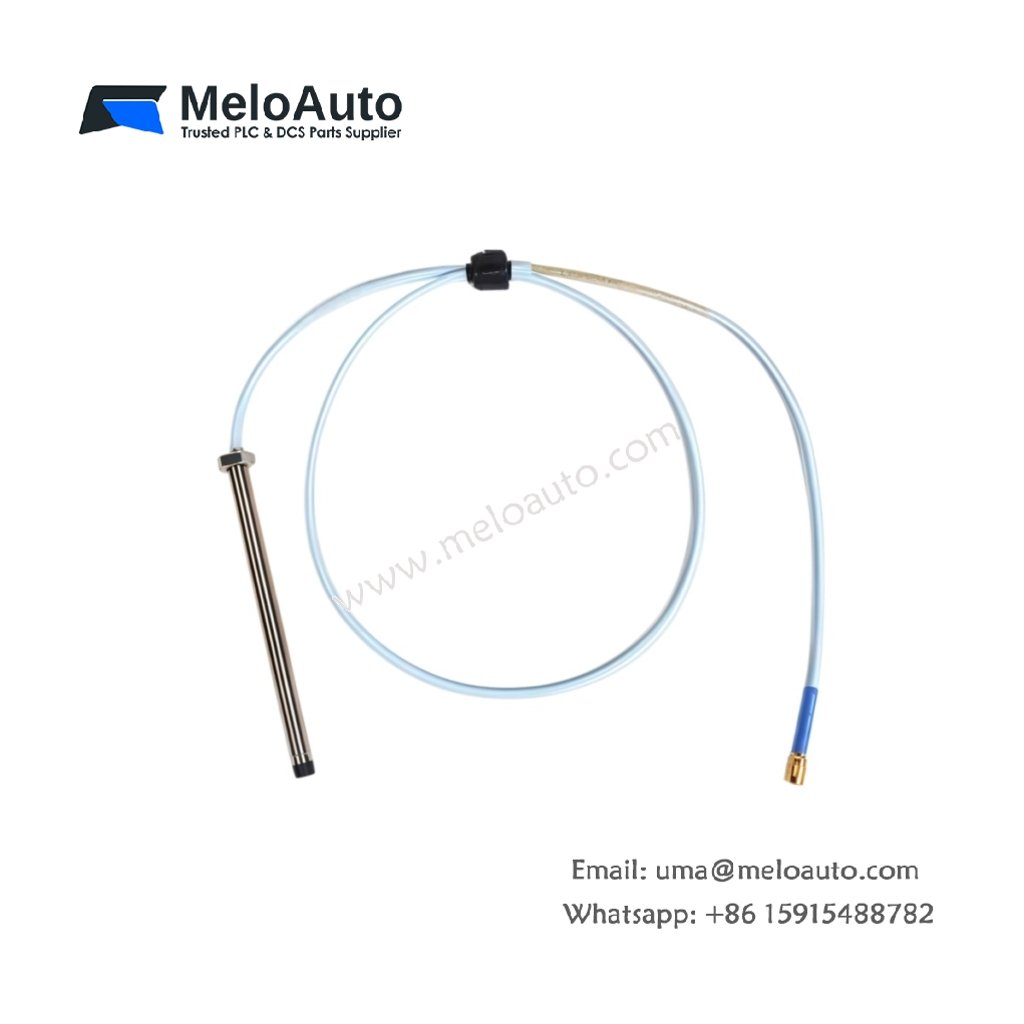

The 330101-00-50-10-02-00 belongs to the 3300 XL 8 mm series of eddy-current proximity probes. This sensor measures radial vibration and axial position on steam turbines, compressors, and large motors. Its 8 mm tip delivers a proven balance of sensitivity and linear range.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330101-00-50-10-02-00 |
| Category | 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Linear Range | 0 to 2 mm (typical) |
| Incremental Scale Factor | 7.87 V/mm ± 6.5% |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -35°C to +177°C (probe) |
| Cable Length | 5.0 m |
| Weight | Approx. 0.30 kg (probe with cable) |
| Connector | Coaxial, 3-pin Mil-spec |
| Mounting Thread | M10 × 1 or 3/8-24 UNF |
| Power Supply | -17.5 Vdc to -26 Vdc |
| Output Impedance | 50 Ω nominal |
| Part Count | Single probe assembly |
Measurement Principle and Interface
Eddy-current technology enables non-contact displacement measurement on ferrous targets. The driver sends a high-frequency signal through the coaxial cable to the probe coil. Subsequently, target movement modulates coil impedance and produces a proportional voltage output. The 330101-00-50-10-02-00 pairs with 3300 XL extension cables and Proximitor drivers for signal conditioning.
Installation and System Integration
Operators mount the probe through a threaded hole with a locknut. A minimum target size of 20 mm diameter ensures accurate linear response. Meanwhile, the 8 mm tip suits standard bearing housing and shaft monitoring points. This design reduces cross-talk in dense sensor arrays. The system also supports reverse-mount configurations for confined spaces.
Energy Storage and Power Considerations
The Proximitor driver draws power from a -24 Vdc rail, typically 12 mA maximum. No internal battery or capacitor stores energy in the probe itself. Instead, external modules handle signal demodulation and power regulation. Therefore, system designers must budget for a dedicated DC supply per channel.
