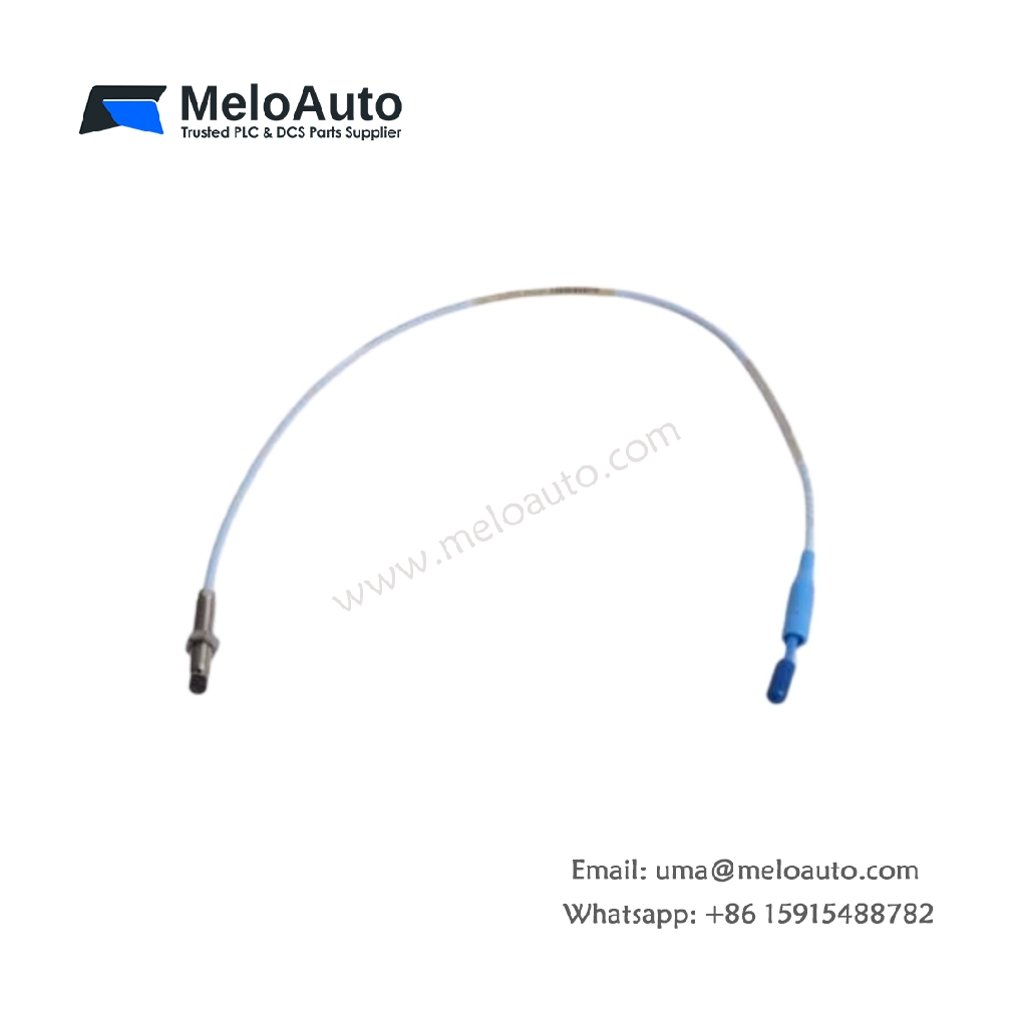

Bently Nevada 330101-00-11-10-02-05

Precision 8 mm Eddy Current Sensor for Shaft Monitoring

The Bently Nevada 330101-00-11-10-02-05 belongs to the 3300 XL series and performs non-contact vibration and position measurements. This sensor excels at monitoring shaft displacement in turbines, compressors, and pumps. Its design supports critical machinery protection and predictive maintenance strategies.

This model features a short overall case length of 11 mm and uses a compact 8 mm tip. A factory-matched configuration ensures consistent linearity without requiring field calibration. This model offers an M10 x 1.5 thread for straightforward installation in bearing housings.

Technical Specifications

Parameter	Specification
Model	330101-00-11-10-02-05
Type	8 mm Proximity Probe
Probe Diameter	8 mm
Overall Case Length	11 mm
Unthreaded Length	0 mm (flush mount)
Cable Length	1.0 meter (integral)
Cable Type	FEP-insulated, shielded
Connector Type	Miniature coaxial ClickLoc™
Thread	M10 x 1.5
Linear Range	2 mm typical
Operating Temp (Probe)	-52 °C to +177 °C
Weight	0.26 kg (probe approx.)
Compliance	API 670, ATEX, CSA, IECEx (05 suffix)

The extremely short 11 mm case length suits space-constrained installations within tight machinery casings. Its flush-mount design positions the tip directly at the casing surface for optimal gap control. The FEP cable insulation offers excellent resistance to oil, moisture, and chemical contaminants.

The integrated eddy current technology delivers high-resolution displacement readings. This sensor reliably detects early wear, imbalance, or misalignment. Consequently, operators reduce unplanned downtime and lower overall maintenance costs.

The 330101-00-11-10-02-05 integrates seamlessly with 3300 XL Proximitors and 3500 monitoring systems. Its intrinsic safety certification (Zone 0/1) makes it suitable for hazardous areas like refineries and chemical plants. Standardized connectors and components simplify spare parts management across multiple installations.
