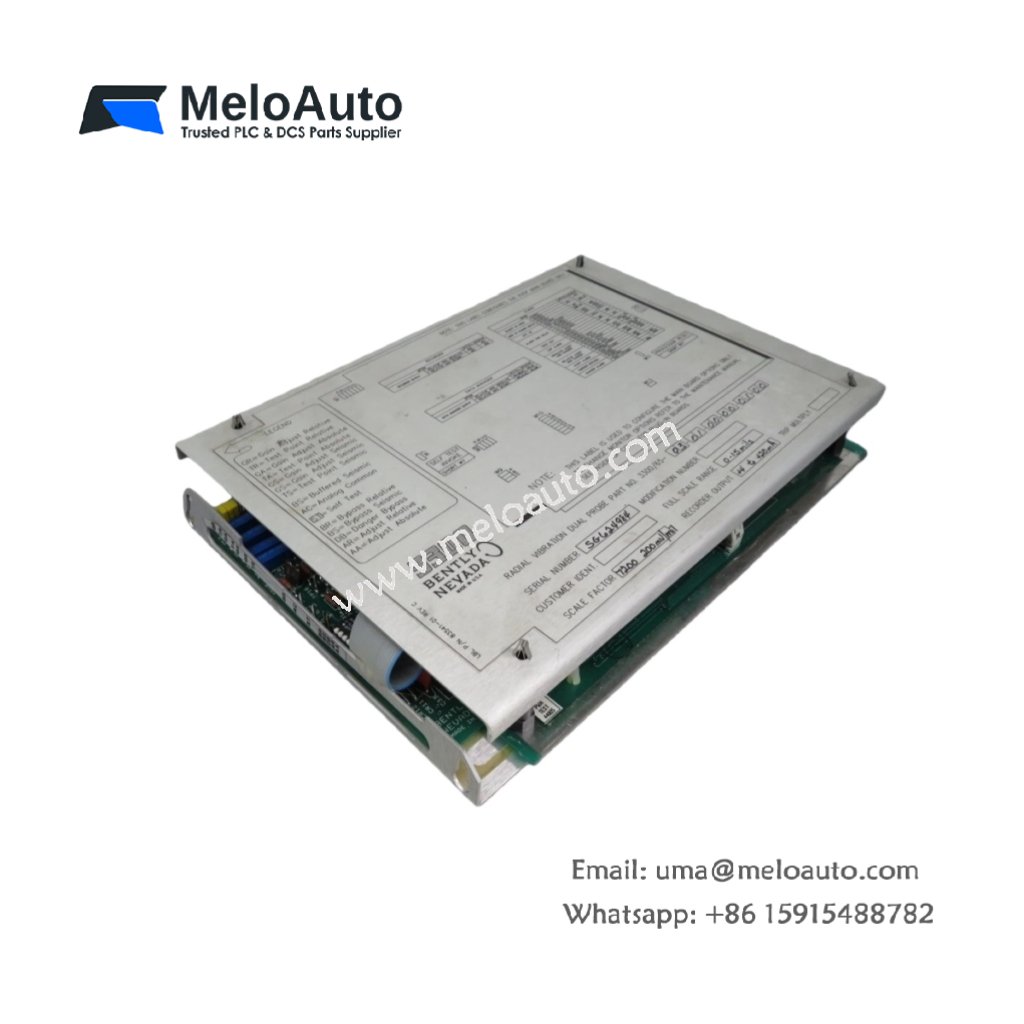

Bently 3300/65-13-01-00-00-00-00 Dual Probe Vibration Monitor

Overview

The Bently Nevada 3300/65-13-01-00-00-00-00 is a highly specialized vibration monitor designed for assessing the radial vibration of rotating machinery. It is widely used in industrial environments for monitoring the health and performance of large rotating machines, such as turbines, pumps, and compressors. With its dual probe technology, this monitor provides accurate and real-time vibration data essential for maintaining operational efficiency and avoiding costly failures.

Key Features and Functions

Dual Probe Monitoring: The system uses two probes positioned at perpendicular axes to measure vibration in two directions, ensuring a comprehensive view of the machine’s vibrational behavior.
High-Precision Measurement: It delivers precise readings of vibration amplitude, frequency, and phase, allowing for early fault detection and accurate diagnostics.
Robust Design: Built to withstand harsh industrial conditions, the 3300/65-13-01-00-00-00-00 ensures reliable, continuous operation in demanding environments.
Data Acquisition: The monitor collects and stores vibration data over time, supporting trend analysis and enabling proactive, predictive maintenance.
Integration Capabilities: Seamlessly integrates into larger machinery monitoring systems, enhancing condition-based monitoring and system control.

Applications

Predictive Maintenance: Detect faults early to avoid unplanned downtime and expensive repairs, keeping operations running smoothly.
Condition Monitoring: Provides continuous vibration monitoring to assess equipment health, helping to plan maintenance activities efficiently.
Fault Diagnosis: The system’s comprehensive vibration data allows for accurate identification of mechanical issues and root causes of failures.
Process Optimization: By closely monitoring vibration, the system helps optimize machine performance, improving efficiency and reducing energy consumption.

Technical Specifications

Specification	Details
Measurement Range	Wide range from low-level vibrations to severe faults
Frequency Range	Captures a broad spectrum of vibration frequencies, including those linked to mechanical faults
Sensitivity	High sensitivity for early detection of faults
Accuracy	Meets stringent accuracy standards for reliable diagnostics
Environmental Rating	Rated for industrial environments, resistant to dust, moisture, and extreme temperatures
Communication Protocols	Supports Modbus and Ethernet for integration with control systems
Power Supply	Typically operates with 24 VDC power, ensuring energy efficiency
Mounting	Designed for easy installation on industrial equipment
Compatibility	Integrates with Bently Nevada machinery protection systems

Measurement Features

Shaft Relative Vibration: Proximity probe measures shaft vibration relative to the bearing housing.
Bearing Housing Vibration: Seismic measurement of bearing housing vibration relative to free space.
Shaft Absolute Vibration: Vector summation of shaft relative vibration and bearing housing vibration for overall shaft condition assessment.
Radial Position: Measures shaft’s average radial position relative to bearing clearance using proximity probe DC gap measurement.
