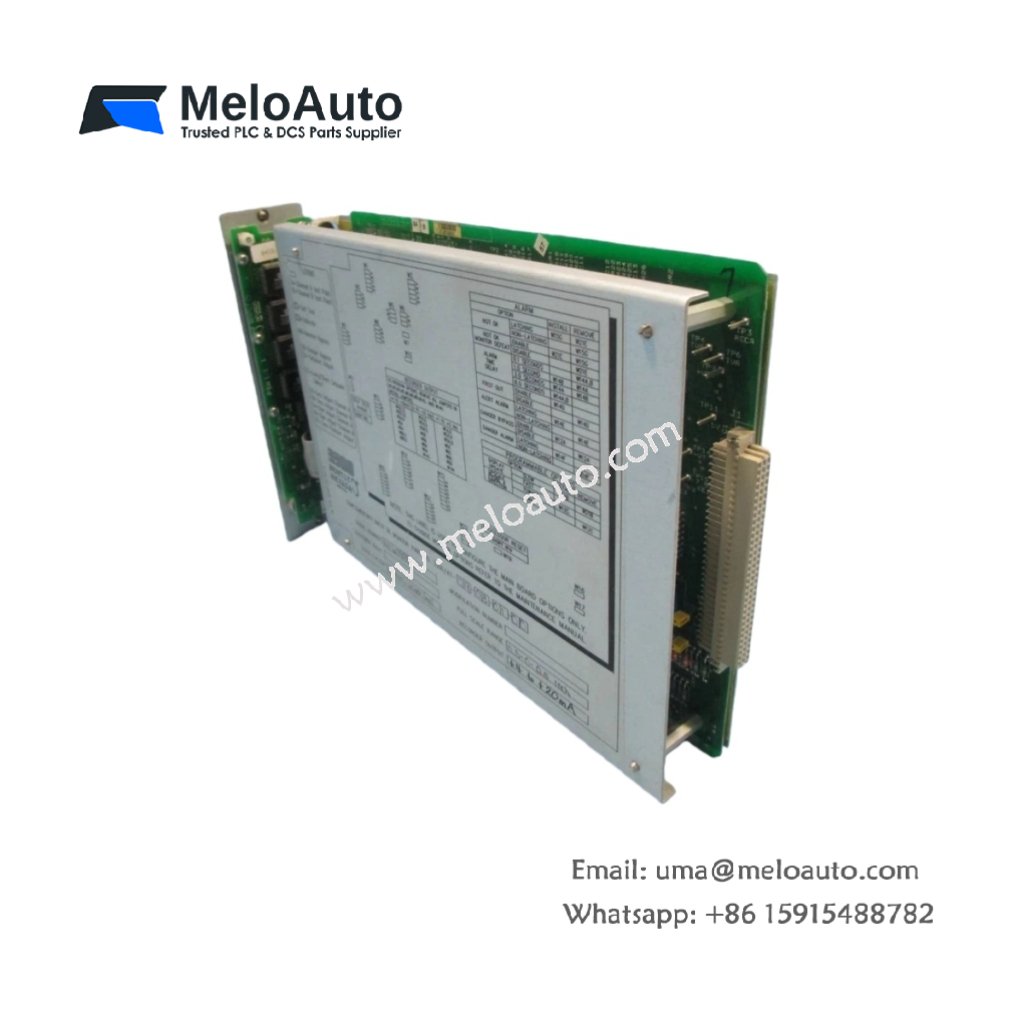

Bently Nevada 3300/47-XX-03-01-00 Differential Expansion Monitor

Overview

The Bently Nevada 3300/47-XX-03-01-00 Differential Expansion Monitor is designed to accurately measure the expansion or contraction of rotating machinery components. This system is essential for monitoring differential expansion in critical industrial machines like turbines, pumps, and compressors, helping to prevent thermal stress and mechanical failures.

Key Features and Applications

Measures Differential Expansion: Accurately detects the difference in expansion between two points on rotating machinery components, crucial for maintaining operational integrity.
Wide Measurement Range: Offers flexibility to accommodate various expansion ranges based on specific application needs.
High Accuracy: Delivers precise readings, ensuring minimal error for reliable performance monitoring.
Rugged Design: Built to withstand the harsh conditions often found in industrial environments, ensuring long-lasting reliability.
Seamless Integration: Easily integrates with existing machinery protection and monitoring systems for hassle-free installation.

Applications

Turbines: Monitors differential expansion of turbine casings and rotors, preventing issues like thermal stress and unwanted vibrations.
Pumps: Measures the expansion of pump shafts and impellers, ensuring they stay aligned and operate at peak performance.
Compressors: Tracks the expansion of compressor cylinders and pistons, helping to prevent overheating and mechanical failure.
Other Rotating Machinery: Ideal for any rotating equipment where monitoring differential expansion is critical for safe and efficient operation.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Part Number	3300/47-XX-03-01-00
Type	Differential Expansion Monitor
Measurement Function	Measures expansion difference between two points on rotating machinery
Accuracy	High-precision measurements with minimal error
Range	Wide range of expansion values supported, specific to model
Construction	Rugged design for industrial environments
Installation	Simple integration with existing monitoring systems
Applicable Machines	Turbines, pumps, compressors, other rotating machinery

Dimensions and Weight

Dimensions: 5.1 cm x 20.3 cm x 33.0 cm
Weight: 1.4 kg

Country of Origin

Manufactured in: United States

Conclusion

The Bently Nevada 3300/47-XX-03-01-00 Differential Expansion Monitor is a vital tool for ensuring the health of rotating machinery. By accurately measuring and monitoring differential expansion, this device helps prevent costly breakdowns, reduces maintenance efforts, and enhances machine performance.
