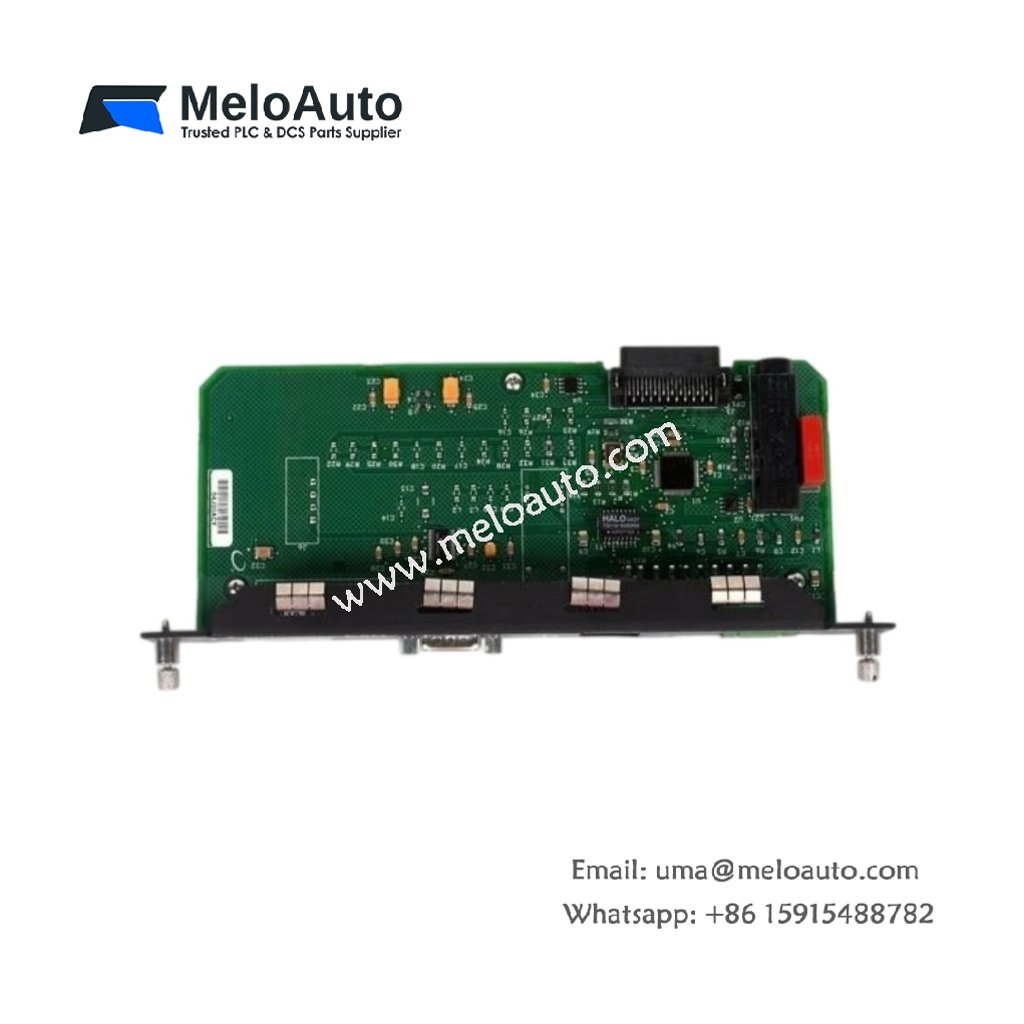

Bently Nevada 149776-01 Copper Ethernet Card

The 149776-01 copper Ethernet card from Bently Nevada links machinery protection racks to plant networks through standard copper cabling. Plant engineers install this card whenever monitor data must reach control systems and diagnostic workstations. Consequently, it delivers condition data reliably across the plant network without fiber infrastructure.

Key Technical Specifications

The table below outlines the main physical and electrical parameters of the 149776-01 card.

Parameter	Specification
Product Type	Copper Ethernet Card
Compatibility	Bently Nevada machinery protection systems
Dimensions	Approximately 200 mm x 130 mm x 40 mm
Weight	Approximately 0.6 kg (1.3 lbs)
Mounting	Rack frame or panel mounting base
Interface	Backplane bus and copper Ethernet network port
Connectors	Multi-pin connector and RJ45 network port
Component Count	Multiple network controllers, processors, and driver circuits
Energy Storage	On-board capacitors for buffer and signal stabilization
Port Count	Multiple copper Ethernet ports
Network Protocol	Standard Ethernet communication support
Operating Temperature	0 degrees C to 60 degrees C
Storage Temperature	-40 degrees C to 85 degrees C
Humidity	5% to 95% non-condensing

Functional Overview

This card handles network communication between the protection rack and external systems. Therefore, it lets operators and engineers access condition data from remote locations. The 149776-01 also manages protocol handling so that plant networks receive data in usable form. Meanwhile, its onboard energy storage protects data buffers during brief power interruptions.

Installation and Handling Notes

Always confirm network addressing before inserting the 149776-01 into an active rack. In addition, use shielded Ethernet cable in electrically noisy plant areas. Secure all connectors fully to prevent intermittent data loss. Finally, document IP assignments for future troubleshooting.
