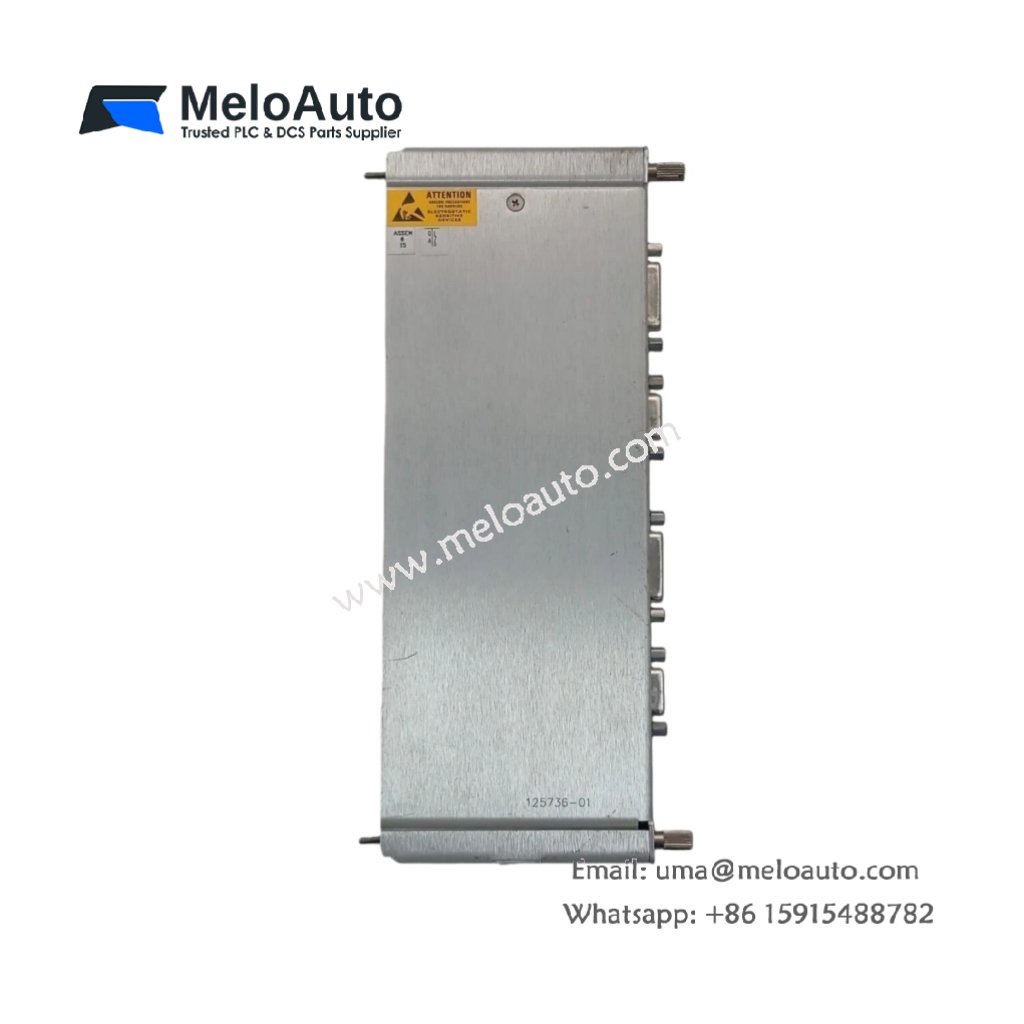

Bently Nevada 125736-01 Modbus I/O Communication Module

The Bently Nevada 125736-01 module facilitates seamless communication between the Bently Nevada 3500/92 Communication Gateway and external equipment. This versatile module supports both serial and Ethernet communications, offering reliable data transfer for industrial applications.

Key Features

Ethernet TCP/IP Communication: The module enables robust communication of all rack-monitored values and statuses. Ethernet TCP/IP capabilities allow integration with process control and automation systems, enhancing operational efficiency.
Serial Communication Support: It supports RS232, RS422, and RS485 protocols, ensuring compatibility with a wide range of industrial equipment.
Configurable Modbus Register Utility: This utility replicates the functionality of the primary value Modbus registers, offering flexibility in system integration and data management.
LED Indicators: The module features OK and TX/RX LEDs, clearly indicating system operation and communication status for quick troubleshooting.
High Humidity Tolerance: With a relative humidity tolerance of up to 95%, the module is designed to operate in harsh industrial environments.

Applications

The 125736-01 module is ideal for industries requiring seamless integration of process control and automation systems. It is widely used for connecting and exchanging data with various industrial equipment, contributing to the optimization of processes in applications such as:

Power generation
Oil & Gas
Manufacturing
Chemical processing

Technical Specifications

Parameter	Specification
Model	125736-01
Communication Protocols	Modbus RS232, RS422, RS485
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +85°C
Dimensions	241 mm x 24.4 mm x 99.1 mm
Weight	0.44 kg
Relative Humidity	95%, non-condensing
Ethernet Connection	RJ45 Ethernet (10BASE-T)
LED Indicators	OK and TX/RX for system and communication status
Modbus Utility	Configurable Modbus Register Utility
