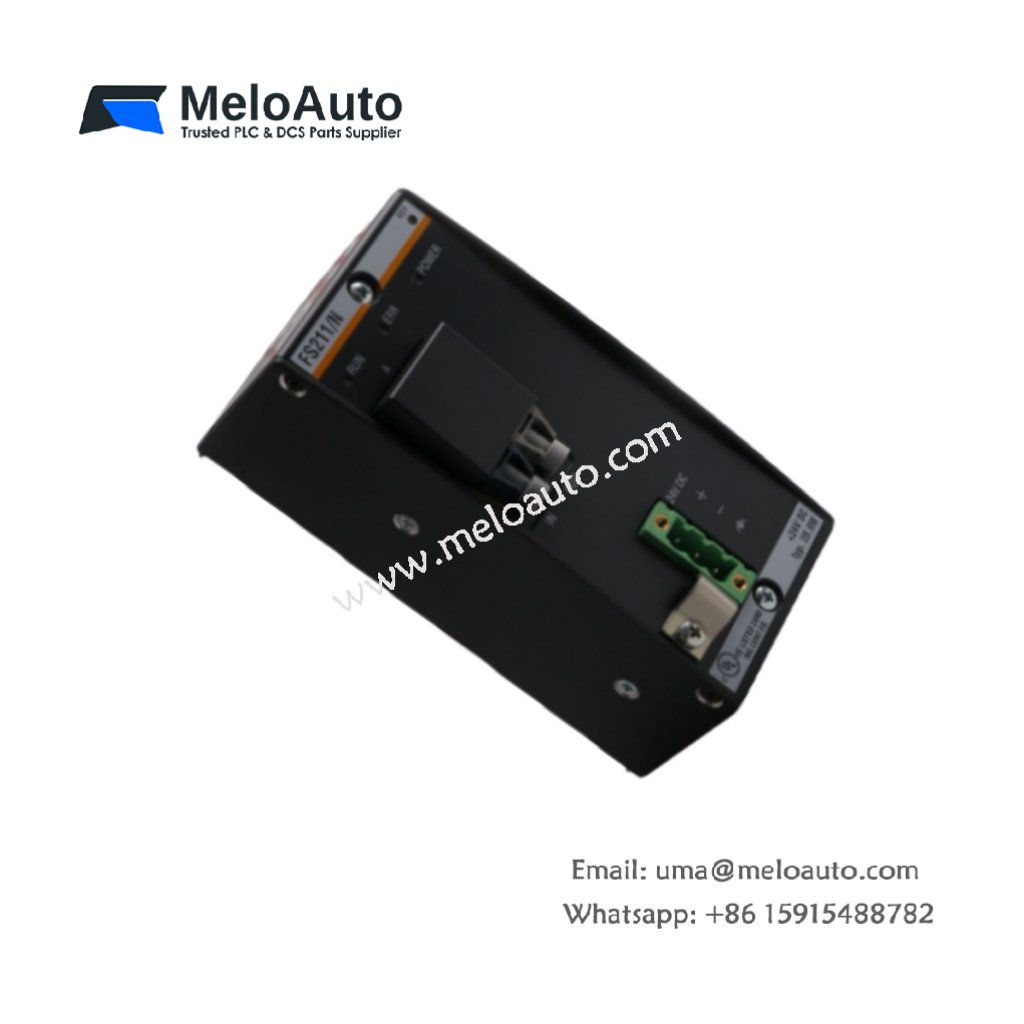

Bachmann FS211/N FASTBUS Slave Module

Reliable and Low-Latency Communication for Distributed SubDevices

The FS211/N from Bachmann is a FASTBUS slave module designed to facilitate long-distance distribution of SubDevices with minimal signal delay. Equipped with an integrated power supply, it can efficiently power I/O modules within a SubDevice network. The FS211/N supports up to 15 distributed SubDevices, ensuring stable and fast communication across extended distances.

Key Features and Performance

The FS211/N features one or two fiber optic interfaces for seamless communication. Depending on the cable type used, it supports distances of up to 180 meters for special HCS cables, 150 meters for HCS cables, and 40 meters for POF cables. Additionally, the FS211/N offers a clear status display with RUN/ERR indicators and fiber type indication, helping to monitor the system’s health in real-time.

Technical Specifications

Communication and Power Supply

Parameter	FS211/N
Cable Length	40 m (POF), 150 m (HCS), 180 m (Special HCS)
Max Stations	16
Transmission Medium	POF, HCS, Special HCS
Power Supply Input Voltage	24 V DC (18 V to 34 V)
Max Power Consumption	1.2 A at 24 V DC
Nominal Power Output	17 W
Output Current at +5 V	2800 mA
Output Current at +15 V	250 mA
Output Current at -15 V	200 mA
Galvanic Isolation	500 V
Reverse Polarity Protection	Yes

Environmental and Certification Details

Category	Details
Operating Temperature	0 °C to +60 °C
Storage Temperature	-40 °C to +85 °C
Operating Humidity	5% to 95% non-condensing
Storage Humidity	5% to 95% non-condensing
Pollution Degree	2 (non-condensing)
Certifications	CE, UKCA, cULus, Marine ABS, BV, DNV, KR, LR, NK, RINA

Performance Benefits for Industrial Networks

The FS211/N offers a highly reliable and cost-effective solution for distributed systems. With its integrated power supply, the module reduces the need for additional power components, simplifying the system’s architecture. The use of fiber optic communication ensures low latency and high immunity to electromagnetic interference, making it ideal for industrial environments that demand precise and stable data transmission.
