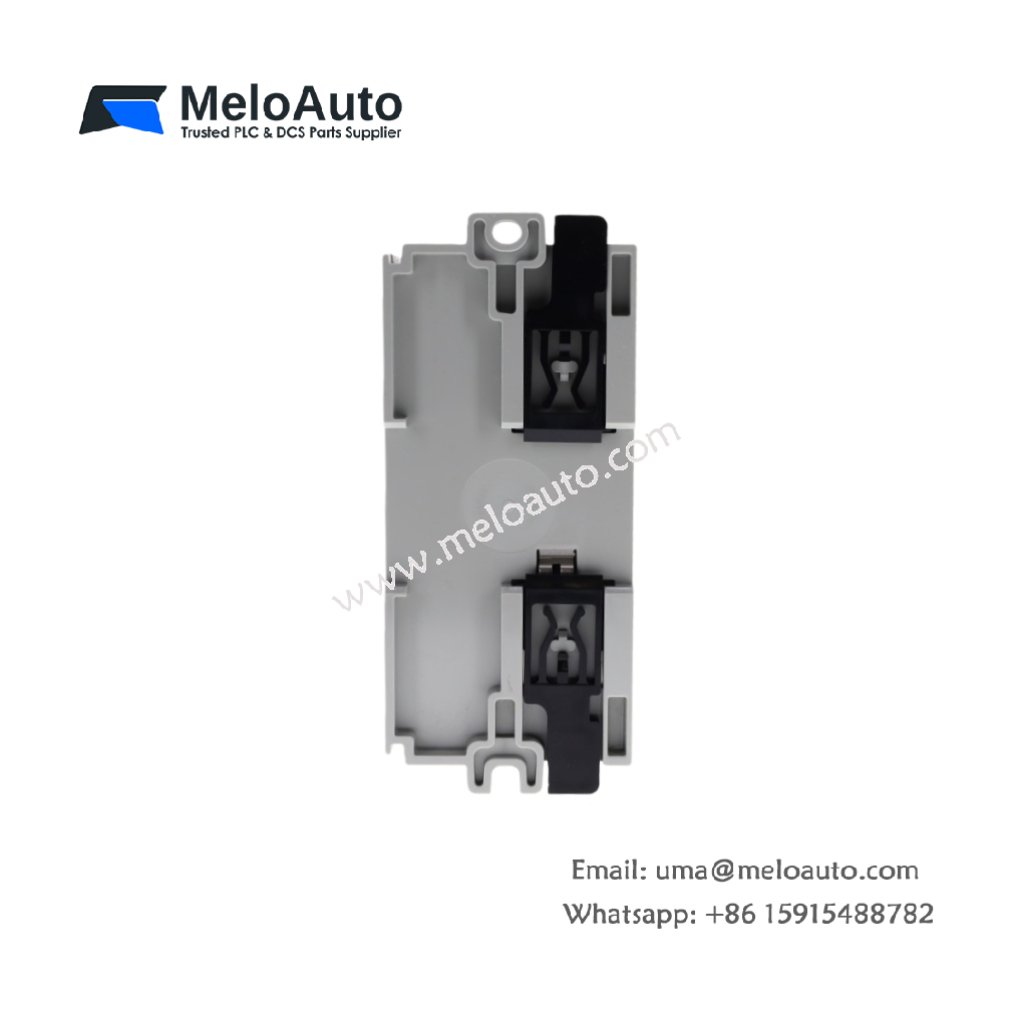

Allen-Bradley 1769-L30ER-NSE CompactLogix Controller

The Allen-Bradley 1769-L30ER-NSE is a reliable and efficient CompactLogix controller designed for demanding industrial automation applications. Manufactured by Rockwell Automation, this versatile controller is part of the 1769 series, ensuring high performance and robust communication features. Furthermore, it includes dual Ethernet ports and an integrated EtherNet/IP switch, which significantly enhances communication flexibility.

Key Features

Dual Ethernet Ports: Two EtherNet/IP ports with an embedded switch and a single IP address for streamlined communication.
USB Client Port: Provides an easy and fast connection to a PC for programming and configuration.
1MB Memory: Supports up to 32 tasks and 1000 programs, offering ample memory for complex control tasks.
Expandable: Compatible with local expansion modules for more versatile applications.
SD Card Support: Comes with a 1GB SD card, supporting additional storage up to 2GB.

In addition, these features allow the 1769-L30ER-NSE to be highly adaptable to various automation requirements.

Technical Specifications

Specification	Value
Manufacturer	Allen-Bradley / Rockwell Automation
Product Line	CompactLogix
Model Number	1769-L30ER-NSE
Memory Capacity	1MB
Number of Tasks	32
Supported Programs	1000
Ethernet Ports	2 (EtherNet/IP with embedded switch)
USB Port	Yes (for programming)
Power Consumption	4.5 Watts
Current Draw	500mA at 5V DC
Shipping Dimensions	279.4 x 203.2 x 152.3 mm
Weight	0.91 kg
Operating Temperature Range	0 to 60°C (32 to 140°F)
Wire Size (Solid)	22-14 AWG
Wire Size (Stranded)	22-16 AWG
Wire Type	Copper, 90°C

Additionally, these specifications make the 1769-L30ER-NSE a highly efficient and reliable controller suitable for a range of industrial applications.

Installation and Power Requirements

The 1769-L30ER-NSE is easy to install, as it comes with an integrated power supply. Moreover, simply mount the unit next to a power supply for seamless operation. It uses 22-14 AWG solid or 22-16 AWG stranded copper wires for reliable connections, making it suitable for industrial wiring setups.

Performance and Durability

Operating within a temperature range of 0 to 60°C (32 to 140°F), the 1769-L30ER-NSE guarantees reliable performance in harsh industrial environments. Furthermore, it meets industry standards for shock and vibration resistance, ensuring long-lasting durability and stability.

Shipping and Packaging

The 1769-L30ER-NSE is securely packaged with dimensions of 279.4 x 203.2 x 152.3 mm (11 x 8 x 6 inches). Due to its lightweight design (approximately 2 lbs or 0.91 kg), it is ideal for tight spaces, simplifying the installation process.
