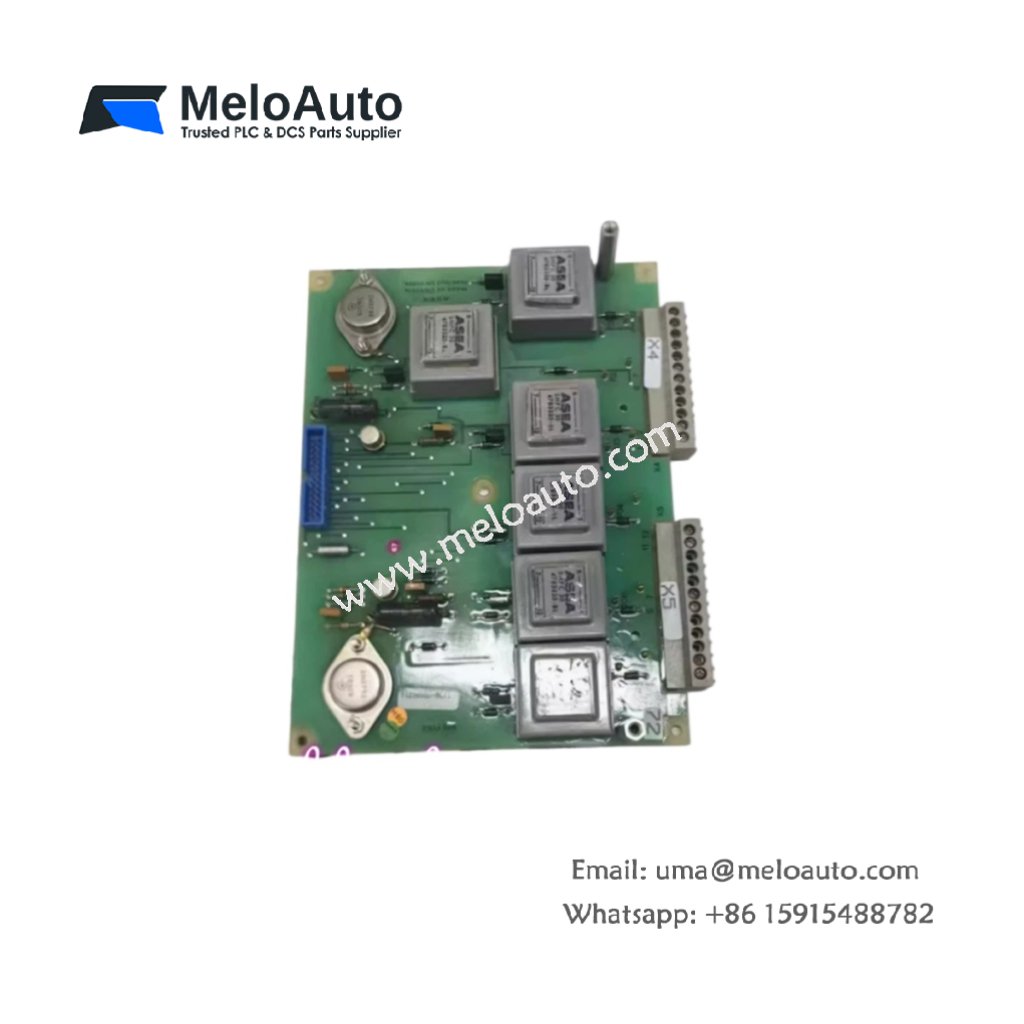

ABB YXU144 YT296000-MC Pulse Transformer Unit: Reliable Signal Isolation

Overview of the ABB YXU144 Pulse Transformer Unit

The ABB YXU144 YT296000-MC functions as a precision pulse transformer unit for industrial control systems. We engineer this component to provide reliable electrical isolation between control circuits and power devices. Its robust construction ensures accurate signal transmission in demanding automation environments.

Key Technical Specifications and Design Features

Engineers will find the ABB YXU144 YT296000-MC exceptionally well-suited for gate drive applications. This unit measures approximately 85 mm in height, 55 mm in width, and 40 mm in depth, with a total weight of just 0.28 kilograms. It features six primary interface pins arranged in a dual-row configuration for secure connections.

The transformer core utilizes high-permeability ferrite material with three separate winding sections. Additionally, the unit incorporates insulation materials capable of withstanding 2500 VAC isolation voltage. This design maintains signal integrity while protecting sensitive control electronics from high-voltage transients. You can integrate it alongside protection modules like the RMS-TSG-TZ-C Static Trip Unit for comprehensive system safety.

Performance Parameters and Integration

We designed the ABB YXU144 YT296000-MC for consistent pulse transmission across various load conditions. Its operating frequency range spans from 10 kHz to 50 kHz, making it ideal for switching power supplies and inverter drives. The unit’s compact form factor allows easy mounting on standard DIN rails within control panels. Consequently, this pulse transformer unit delivers the isolation and reliability that modern industrial applications demand.

Technical Specifications Table
