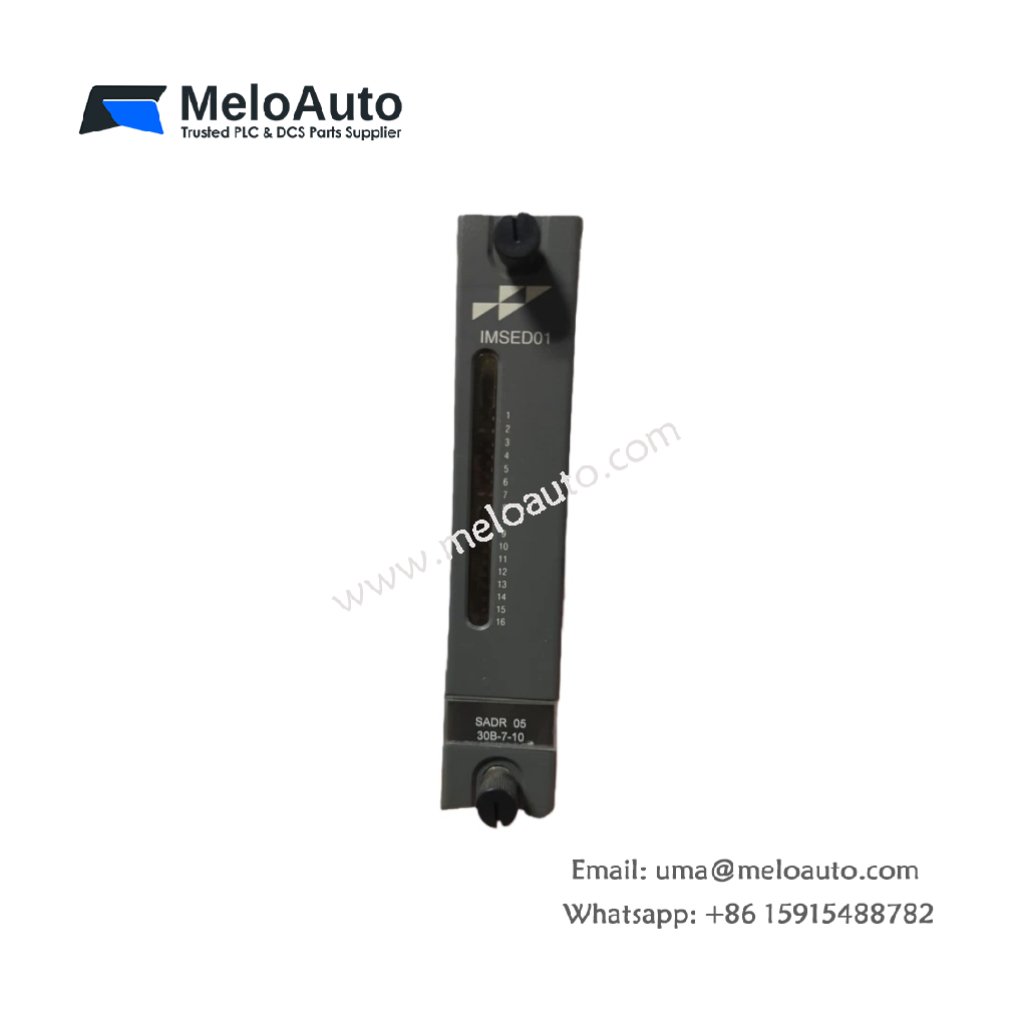

ABB IMSED01 Digital Input Module

The ABB IMSED01 is a digital input module specifically designed for industrial automation systems. Capable of processing up to 16 digital field inputs, it plays a key role in data acquisition and control processes. This module provides reliable input handling for various applications, while offering a functional approach to time synchronization and configuration, differing from the IMSETO1 module.

Key Features

16 Digital Field Inputs: The ABB IMSED01 can process up to 16 digital field inputs, allowing for efficient monitoring of on/off signals from external devices.
Time Synchronization: Unlike the IMSETO1 module, the ABB IMSED01 does not support time synchronization link information, making it ideal for applications that do not require time-sensitive data.
Flexible Function Code: The module uses function code 242 (SOE digital event interface), allowing flexible configuration to meet different system needs.
Expandable I/O Bus: It supports up to 63 IMSED01 modules on an I/O expander bus segment, along with one IMSETO1 module, providing scalable solutions for large systems.
Termination Unit: The ABB IMSED01 employs the NTDIO1 termination unit for easy and reliable field wiring termination.

Technical Specifications

Specification	Details
Product Type	Digital Input Module
Field Inputs	Up to 16 Digital Inputs
Time Synchronization	No time synchronization link support
Function Code	242 (SOE Digital Event Interface)
I/O Expander Bus	Supports up to 63 IMSED01 modules
Termination Unit	Uses NTDIO1 for field wiring termination
Dimensions	17.8 cm (Depth) x 5.1 cm (Height) x 33.0 cm (Width)
Weight	0.4 kg

Why Choose the ABB IMSED01 Digital Input Module?

The ABB IMSED01 module provides efficient digital input handling for industrial systems. With the capability to process up to 16 digital inputs, it ensures smooth monitoring of field devices and supports expansion with up to 63 modules. It is well-suited for applications that do not require time synchronization but still demand reliable data processing.

Thanks to its flexible configuration and scalability, the ABB IMSED01 is an excellent choice for complex systems requiring reliable and efficient digital event monitoring. Whether you’re working with sensors, actuators, or control systems, this module integrates easily into existing infrastructures for enhanced operational performance.
