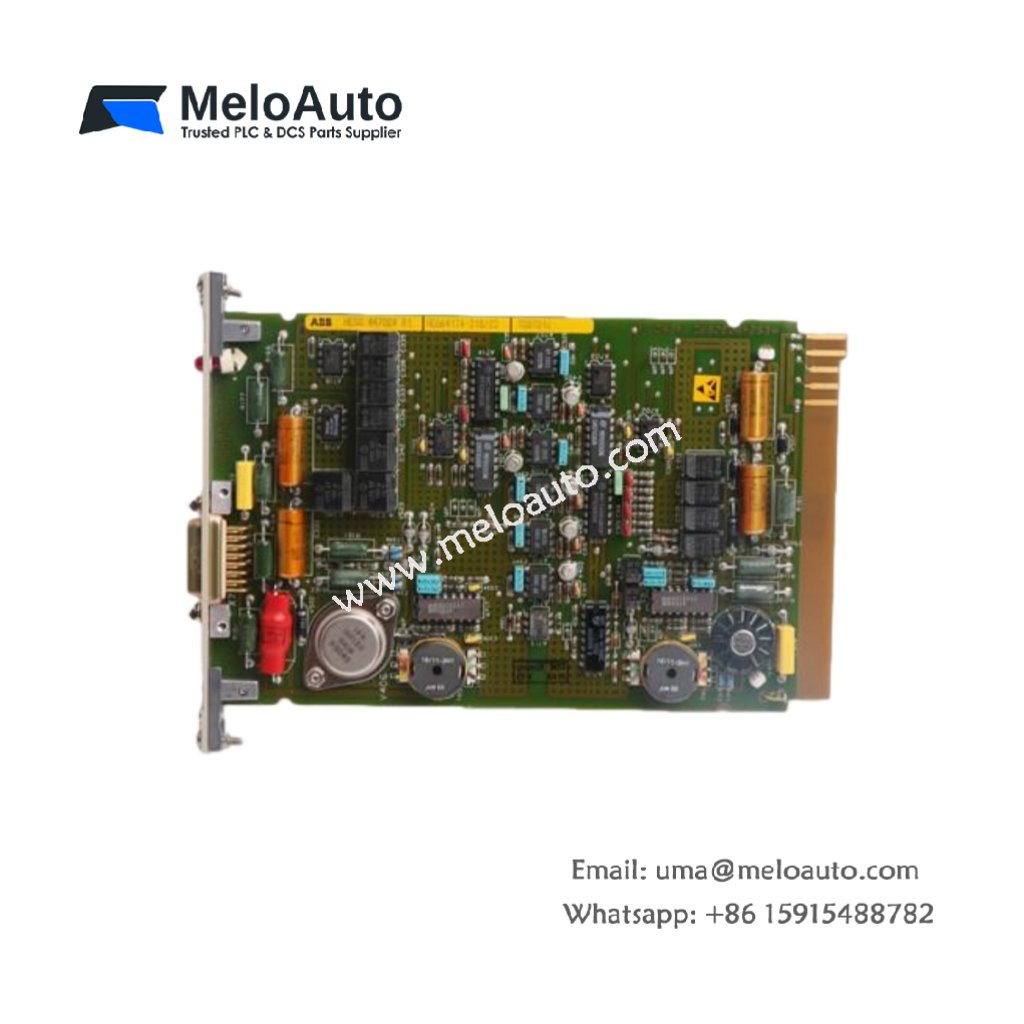

ABB HESG447024R1 HE664174-318/23 70BT01C Module

The ABB HESG447024R1 HE664174-318/23 70BT01C bus transmitter module is designed for the PRoCONTRoL-P system. It facilitates reliable, isolated communication between the PRoCONTROL-PS protection system and the main control system. This module efficiently converts analog signals into digital form, enabling precise data acquisition and fast industrial data transmission.

Key Features

Model: HESG447024R1 HE664174-318/23 70BT01C
Category: Bus Transmitter Module
Manufacturer: ABB

Technical Specifications

Parameter	Value
Function	Bus Transmitter Module
Input Voltage	24 VDC ±10%
Power Consumption	Less than 4 W
Communication Protocol	Modbus RTU or system-specific protocols
Data Rate	9600 to 115200 bps
Digital I/O	Configurable digital inputs and outputs
Analog I/O	Supports 0-10 V and 4-20 mA signal ranges
Mounting Type	DIN Rail Compatible
Protection Class	IP20
Operating Temperature	-20°C to +60°C (typically 0°C to 60°C)
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95% RH, non-condensing
Dimensions	20.3 cm x 17.8 cm x 5.1 cm
Weight	0.28 kg

The HESG447024R1 HE664174-318/23 70BT01C is compact and lightweight, measuring just 20.3 cm x 17.8 cm x 5.1 cm and weighing only 0.28 kg. This makes integration into existing systems quick and straightforward. With its robust design, it ensures stable operation in challenging industrial environments.

The module operates within a wide temperature range, from -20°C to +60°C, and can withstand extreme storage temperatures between -40°C and +85°C. It also offers flexible analog and digital input/output options, with support for 0-10 V and 4-20 mA signal ranges.

Applications

You can rely on the HESG447024R1 HE664174-318/23 70BT01C in applications that demand precise analog-to-digital conversion. It is ideal for industrial automation systems, process control, and other environments where reliable data transmission and signal processing are essential.
