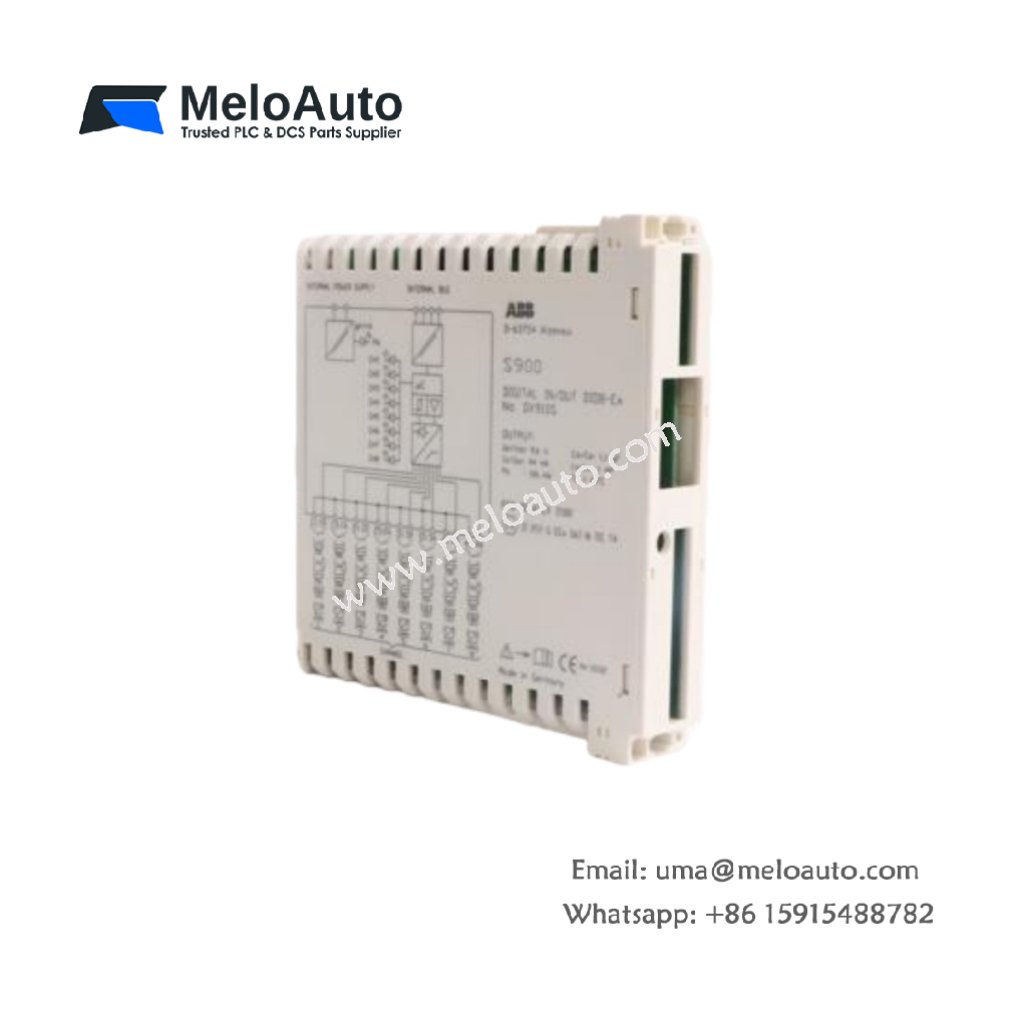

ABB DX910 Industrial Automation Module

The ABB DX910 is a versatile industrial automation module designed for high-performance applications. This module offers reliable data processing and control capabilities, ensuring smooth operation in various industrial systems. With robust electrical features and a durable design, the DX910 integrates easily into manufacturing, energy, and process control systems.

Key Features of the DX910

Manufacturer: ABB
Product Line: DX Series
Part Number: DX910
Type: Industrial Automation Module
Dimensions: 100 mm (W) x 120 mm (H) x 45 mm (D)
Weight: 0.45 kg
Input Voltage: 24 VDC
Output Voltage: 24 VDC (adjustable)
Current Rating per Channel: 1 A
Maximum Channels: 16
Total Output Current: 2 A
Operating Temperature Range: -20°C to 60°C
Mounting Type: DIN Rail

Electrical Specifications

The DX910 module features high-performance electrical specifications, ensuring precision and reliability for your automation systems:

Specification	Value
Manufacturer	ABB
Product Line	DX Series
Part Number	DX910
Dimensions	100 mm (W) x 120 mm (H) x 45 mm (D)
Weight	0.45 kg
Input Voltage	24 VDC
Output Voltage	24 VDC (adjustable)
Current Rating per Channel	1 A
Maximum Channels	16
Total Output Current	2 A
Operating Temperature Range	-20°C to 60°C
Mounting Type	DIN Rail

Advanced Features and Benefits

Flexible Input/Output: The DX910 provides 16 channels with adjustable 24 VDC output, suitable for various automation tasks.
Efficient Power Management: With 1 A current per channel and a total output current of 2 A, this module ensures efficient power distribution.
Wide Temperature Range: Operating within -20°C to 60°C, it maintains optimal performance in diverse environmental conditions.
Space-Saving Design: The module’s compact dimensions of 100 mm x 120 mm x 45 mm and lightweight build (0.45 kg) facilitate easy integration into your system.
DIN Rail Mounting: The DIN rail mounting option makes installation simple and secure in control panels or automation racks.

Applications of the DX910

The ABB DX910 is well-suited for a variety of industrial automation applications, including:

Manufacturing Automation: Controls machines and processes in automated production lines, enhancing productivity and efficiency.
Energy Management: Monitors and optimizes energy distribution systems, helping to reduce power consumption.
Process Control: Interacts with sensors and actuators to manage complex industrial processes with precision.

Conclusion

The ABB DX910 industrial automation module provides reliable control and data processing for diverse industrial systems. With 16 channels, adjustable output voltage, and efficient power management, it delivers exceptional performance. Its robust design and wide operating temperature range make it ideal for various demanding automation environments.
