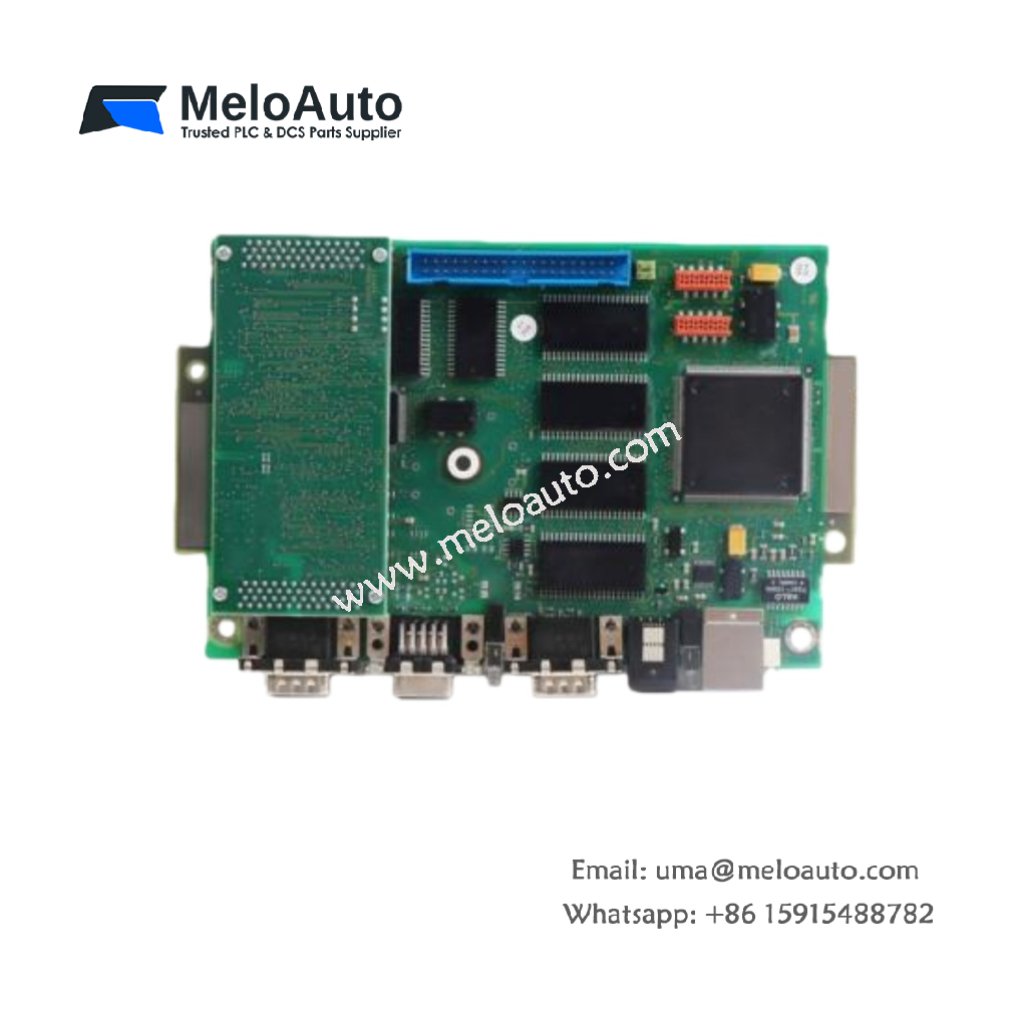

ABB DTPC721B 3EST126-236 Power Control and Terminal Point Controller

The ABB DTPC721B 3EST126-236 is a versatile and efficient component used in ABB’s industrial automation systems. This unit serves as both a Power Control Unit (PCU) and a Terminal Point Controller (TPC), playing a key role in managing electrical power distribution and facilitating seamless communication between field devices and control systems.

Key Features of the DTPC721B 3EST126-236

• Manufacturer: ABB
• Product Line: DTPC
• Part Number: DTPC721B 3EST126-236
• Type: Power Control Unit (PCU) and Terminal Point Controller (TPC)
• Dimensions: 180 mm (W) x 120 mm (H) x 50 mm (D)
• Weight: 0.8 kg
• Input Voltage: 24 VDC
• Output Voltage: 24 VDC
• Number of Inputs: 12
• Number of Outputs: 12
• Communication Ports: RS-485, Ethernet
• Operating Temperature Range: -10°C to 60°C
• Storage Temperature Range: -20°C to 70°C
• Mounting Type: DIN Rail

Technical Specifications

The DTPC721B 3EST126-236 is designed with robust electrical and mechanical specifications to ensure reliable performance in various industrial applications:

Advanced Features and Benefits

1. Power Control: The DTPC721B 3EST126-236 Power Control Unit (PCU) ensures a stable and reliable power supply to all components in the automation system, preventing interruptions and optimizing energy usage.
2. Terminal Point Control: As a Terminal Point Controller (TPC), it interfaces with sensors and actuators, collecting sensor data, transmitting control signals, and executing essential pre-processing tasks for efficient system operation.
3. Multiple Communication Options: Equipped with RS-485 and Ethernet communication ports, the module supports seamless integration with a variety of field devices and central control systems.
4. Robust Operating Conditions: The DTPC721B 3EST126-236 operates effectively within a wide temperature range of -10°C to 60°C, ensuring reliable performance in harsh industrial environments.
5. Compact Design: With a weight of only 0.8 kg and compact dimensions, the DTPC721B can be easily mounted on a DIN Rail for streamlined installation and space-saving integration.

Applications of the DTPC721B 3EST126-236

The ABB DTPC721B 3EST126-236 is widely used in industrial automation systems, particularly in applications requiring precise power control and communication between field devices and control systems. It is ideal for:

• Automation Control Systems: Manages power distribution and acts as an interface between field devices (e.g., sensors, actuators) and control systems.
• Energy Management: Optimizes energy distribution, ensuring stable power delivery to critical components.
• Manufacturing Systems: Ensures reliable power supply and data transmission for factory automation and machinery control.

Conclusion

The ABB DTPC721B 3EST126-236 Power Control and Terminal Point Controller is a versatile and reliable component designed to optimize both power control and data communication in industrial automation systems. Its compact design, combined with robust electrical specifications and flexible communication options, ensures it performs reliably in demanding environments. Whether used in energy management or industrial process control, the DTPC721B is a key component for enhancing the efficiency and stability of automation systems.
