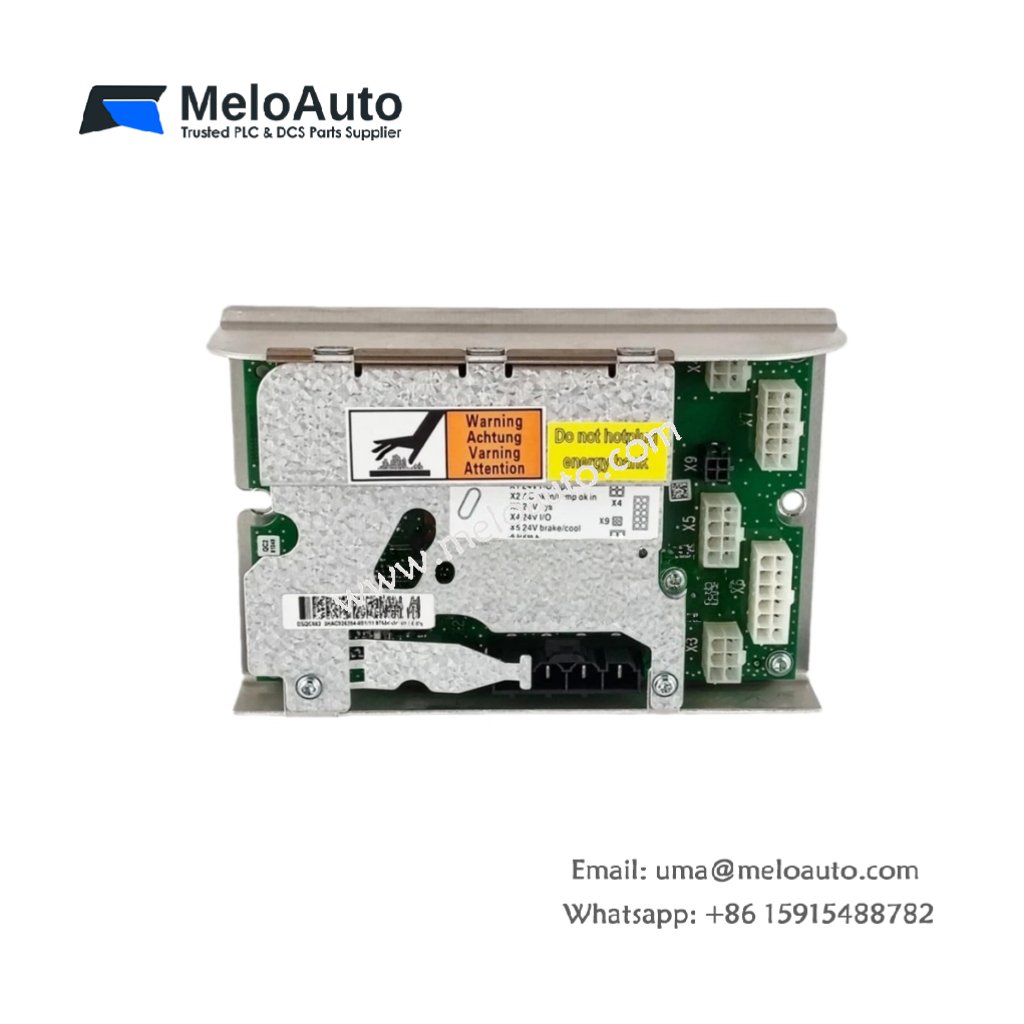

ABB DSQC662 3HAC026254-001/11 Power Distribution Unit

Overview

The ABB DSQC662 3HAC026254-001/11 is a versatile Power Distribution Unit (PDU) from ABB. It ensures efficient and reliable power distribution across various industrial automation and process control systems. With multiple output configurations and advanced protection features, it delivers stability and reliability in demanding environments. Designed for easy integration, this unit helps optimize your system’s performance.

Key Features

Compact and Efficient Design: The DSQC662 offers a compact form factor that fits in space-constrained installations, such as control cabinets and panel systems.
Multiple Voltage Outputs: This unit supports configurable voltage outputs, giving you the flexibility to power different equipment simultaneously.
Advanced Monitoring and Protection: The DSQC662 integrates features like current/voltage monitoring, overload, short-circuit, and ground fault protection, ensuring operational safety.
Flexible Installation: Mount the DSQC662 easily on DIN rails or directly onto panels for quick and secure setup.
Remote Monitoring (Optional): Some versions provide remote monitoring capabilities, helping you track system performance from a distance.

Technical Specifications

Parameter	Specification
Product ID	3HAC026254-001
Model	DSQC662
Manufacturer	ABB
Product Type	Power Distribution Unit (PDU)
Dimensions (W x H x D)	165 mm x 83.5 mm x 110 mm
Net Weight	0.42 kg
Gross Weight	0.42 kg
Voltage Input (Typical)	3x 400 VAC (3-phase) or 1x 230 VAC (single-phase)
Output Voltage	Configurable, depending on model
Monitoring and Protection Features	Current/Voltage Monitoring, Overload, Short-Circuit, Ground Fault Protection
Communication Capabilities	Available in select models
Installation	DIN Rail or Wall Mountable
Applications	Industrial Automation, Process Control, Building Automation

Description

The ABB DSQC662 3HAC026254-001/11 Power Distribution Unit offers reliable power management for industrial automation systems. It accepts 3-phase 400 VAC or single-phase 230 VAC inputs and provides various configurable output voltages depending on the application. This versatility makes it ideal for powering diverse industrial equipment such as sensors, actuators, and control panels.

Weighing only 0.42 kg and measuring 165 mm x 83.5 mm x 110 mm, the unit is both lightweight and compact, fitting easily into confined spaces. Advanced protection mechanisms, such as overload and short-circuit protection, along with ground fault protection, ensure that connected devices remain safe from electrical damage.

For installation, the DSQC662 is designed for DIN rail or wall mounting, offering flexibility during setup. Furthermore, some versions of this unit include remote monitoring capabilities, allowing you to manage your system’s performance from a central location.

Applications

Industrial Automation: Provides reliable power to robots, actuators, and sensors.
Process Control: Powers control panels and field devices in manufacturing systems.
Building Automation: Supplies power to systems like lighting, HVAC, and security systems.
