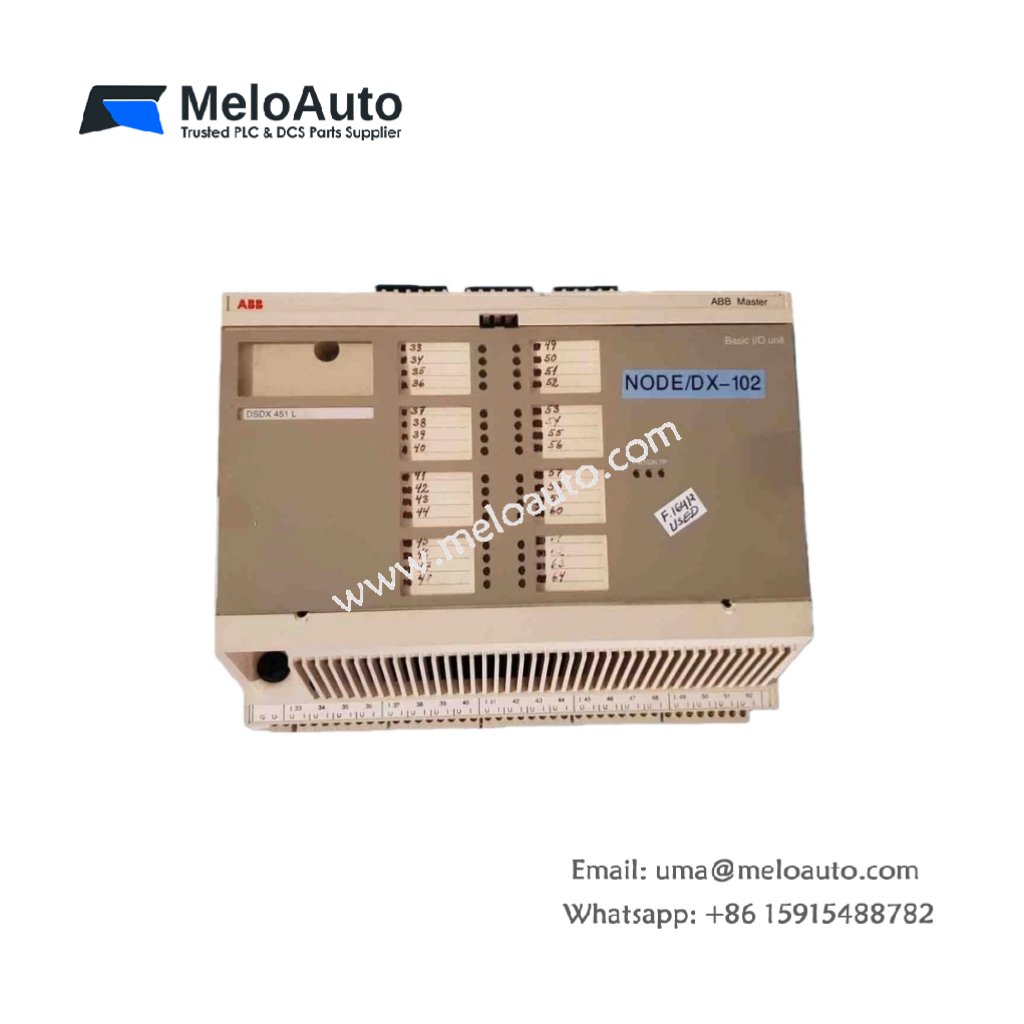

ABB DSDX451L Remote I/O Expansion Unit

Overview

The ABB DSDX451L is a high-performance remote input/output (I/O) expansion unit designed for easy integration into ABB automation systems. It provides 20 digital inputs and 12 relay outputs, significantly enhancing the flexibility and functionality of your industrial control system. Powered by 24V DC, this module efficiently supports low-level signal types, ensuring optimal communication with various connected devices.

Key Features and Specifications

The DSDX451L offers an impressive array of features that expand your system’s I/O capabilities. With 20 digital inputs and 12 relay outputs, this unit helps control multiple devices simultaneously. Additionally, it operates on a 24V DC power supply, making it energy-efficient and suitable for a wide range of industrial environments. The compact design allows for easy installation, while its rugged build ensures reliable performance in demanding settings.

Technical Specifications

Feature	Specification
Model	DSDX451L
Product Name	Remote Input/Output Expansion Unit
Manufacturer	ABB
Product Type	I/O Module
Input Configuration	20 Digital Inputs
Output Configuration	12 Relay Outputs (Low-Level Signal Type)
Power Supply	24V DC
Dimensions	22.9 cm x 1.2 cm x 2.4 m
Weight	2.4 kg
Customs Tariff Number	8538905999
WEEE Category	Product not in WEEE scope

The DSDX451L measures 22.9 cm in length, 1.2 cm in height, and 2.4 meters in width, making it compact yet powerful. At just 2.4 kg, it offers a solid, reliable solution without taking up excessive space.

Functionality and Use Cases

The ABB DSDX451L is an essential component for systems requiring scalable digital I/O. By adding 20 digital inputs and 12 relay outputs, the DSDX451L expands your system’s reach and allows you to control more devices simultaneously. Moreover, its low-level signal type relay outputs ensure smooth interaction with connected components.

This module seamlessly integrates with ABB’s automation systems, making it ideal for process control, factory automation, and remote monitoring applications. It provides a cost-effective solution for users looking to expand their systems without the need for additional control units.

Benefits

Seamless Expansion: Add 20 digital inputs and 12 relay outputs to your system, expanding its capabilities with minimal setup time.
Energy-Efficient Operation: Powered by 24V DC, the DSDX451L minimizes power consumption, ensuring an environmentally friendly operation.
Compact and Durable Design: With a compact size and lightweight build, it can easily fit into tight spaces while maintaining reliable performance.
Versatile Application: The module can be used in various industrial scenarios, including automation, process control, and real-time monitoring.

Manufacturer and Series

Manufactured by ABB, the DSDX451L is part of ABB’s advanced line of remote I/O modules. Renowned for their innovation and reliability, ABB provides a wide range of automation solutions that enhance operational efficiency in industrial systems.
