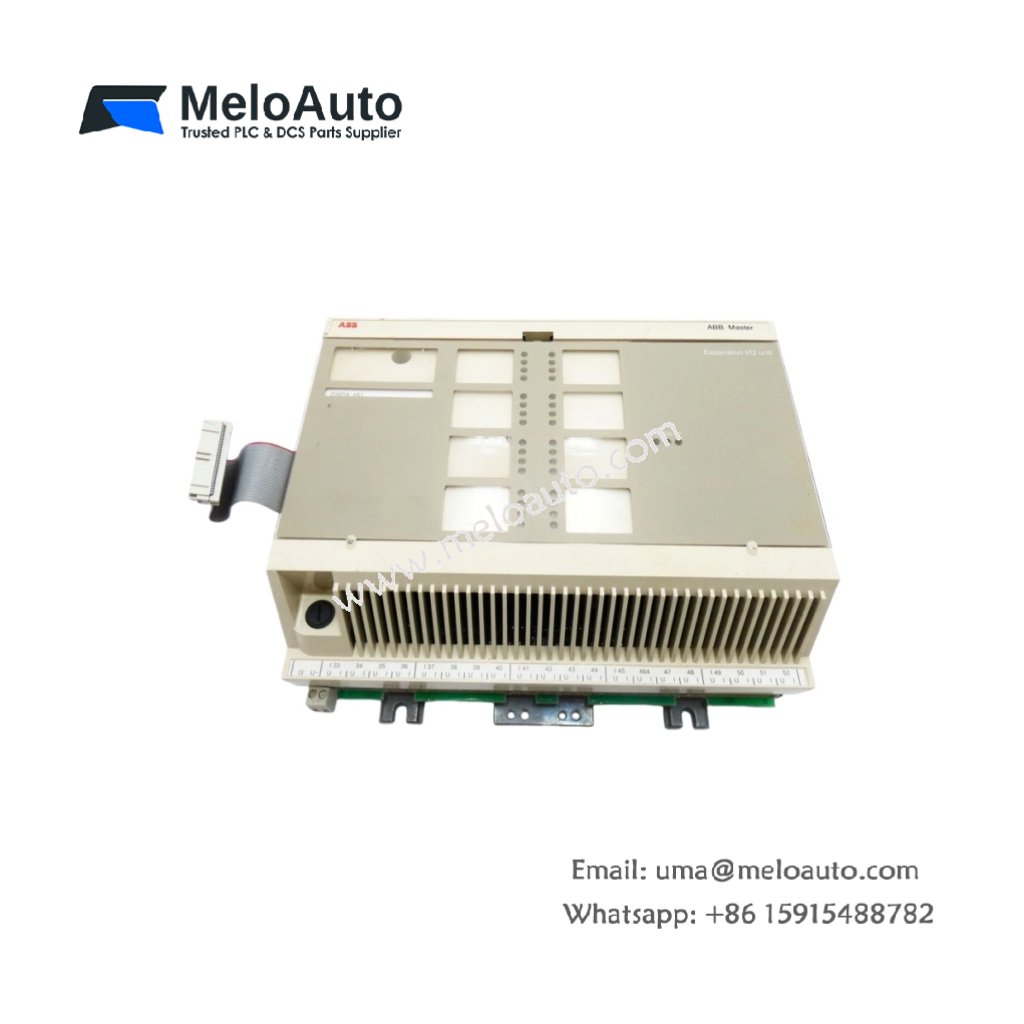

ABB DSDX451 5716075-K Remote I/O Expansion Unit

Overview

The ABB DSDX451 5716075-K is a versatile remote input/output expansion unit designed to extend the I/O capacity of industrial automation systems. With 20 channels (12 digital inputs and 8 digital outputs), this unit enables seamless communication and control. It operates on a 24V DC power supply and can handle current loads from 0.1A to 3A. Additionally, it integrates perfectly with ABB’s Advant Master Process Control System, expanding your system’s scalability and reliability.

Key Features and Specifications

The DSDX451 module provides 20 I/O channels, including 12 digital inputs and 8 digital outputs, allowing for flexible automation system expansion. It includes high-quality connectors such as 4-position, 2-position, and 8-position plugs, ensuring reliable and secure connections. Moreover, it offers robust performance with a current range from 0.1A to 3A, making it suitable for various industrial applications.

Technical Specifications

Feature	Specification
Model	DSDX451 5716075-K
Product Type	Remote Input/Output Expansion Unit
Manufacturer	ABB
I/O Channels	20 Channels (12 Digital Inputs, 8 Digital Outputs)
Power Supply	24V DC
Current Range	0.1A to 3A
Connectors	4-Position, 2-Position, 8-Position
Spare Parts	Fuse (500 mA), Cover
Dimensions	Not specified
Weight	Not specified
RoHS Status	Exempt (Article 2(4)(c), (e), (f), (j) of 2011/65/EU)
HS Code	Not specified

The DSDX451 features 4-position, 2-position, and 8-position connectors, allowing for easy installation and customization. It operates efficiently within a wide current range, from 0.1A to 3A, and is powered by 24V DC.

Functionality and Use Cases

The ABB DSDX451 excels in applications that require scalable digital I/O management. It is ideal for remote control of sensors, actuators, and other industrial devices. By adding 20 additional I/O channels, this module significantly expands the control capabilities of your automation system.

Furthermore, the DSDX451 integrates seamlessly with ABB’s Advant Master Process Control System, providing a flexible, cost-effective way to enhance system performance. Whether in process control, factory automation, or robotics, this module delivers reliable and efficient digital signal processing.

Benefits

Scalable Expansion: With 20 I/O channels, the DSDX451 expands your system’s I/O capacity, allowing you to manage more devices.
Flexible Connectivity: The high-quality 4-position, 2-position, and 8-position connectors ensure a stable connection to various industrial components.
Reliable Performance: The unit handles a current range from 0.1A to 3A, supporting diverse industrial applications with ease.
Seamless Integration: It integrates effortlessly with ABB’s Advant Master Process Control System, enhancing automation capabilities.

Manufacturer and Series

Manufactured by ABB, a global leader in industrial automation, the DSDX451 5716075-K is part of ABB’s remote I/O expansion series. ABB has been at the forefront of industrial automation, providing innovative and reliable solutions for process control, factory automation, and more.
