ABB DSAX110A 3BSE018291R1 – Analog Input/Output Module

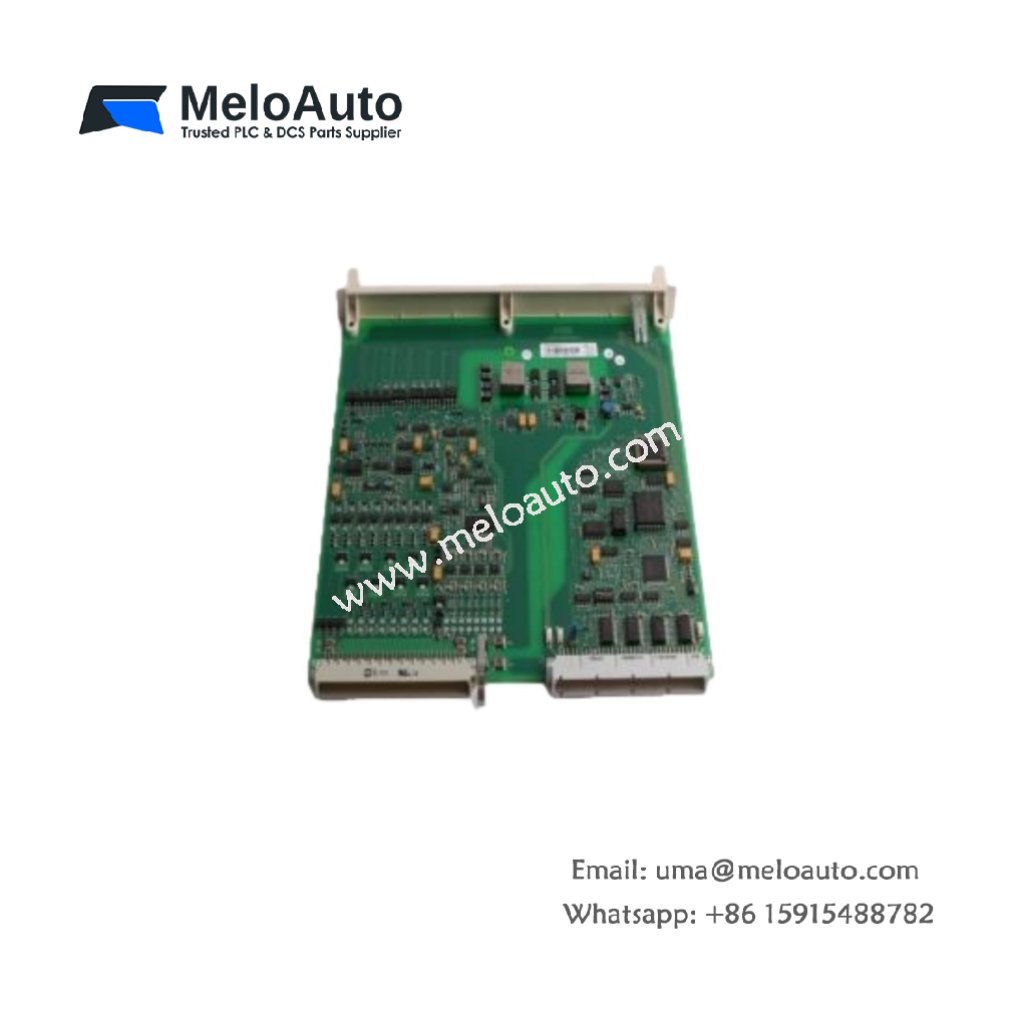

The ABB DSAX110A 3BSE018291R1 is a versatile analog input/output module, also known as an AI/AO module. Designed for use in industrial automation and process control applications, it is part of the ABB AC 800M family of modular controllers. The DSAX110A is engineered to efficiently manage both analog inputs and outputs, ensuring precise control and monitoring in complex industrial systems.

With its 8 analog input channels and 8 analog output channels, the DSAX110A offers comprehensive signal handling capabilities. It supports a variety of signal types, including 0-10V voltage and 4-20mA current, making it suitable for a wide range of sensors and actuators. The 16-bit resolution ensures high accuracy, and the +0.1% full-scale accuracy guarantees reliable performance in demanding environments.

Key Features and Specifications:

• Product ID: 3BSE018291R1
• ABB Type Designation: DSAX110A
• Product Type: Analog Input/Output Module
• Catalog Description: DSAX110A Analog Input/Output Module
• Part of: ABB AC 800M family of modular controllers

Technical Specifications:

Applications:

1. Process Variable Monitoring:
   • The DSAX110A is ideal for monitoring and controlling key process variables such as temperature, pressure, flow, and level in various industrial processes.
2. Interfacing with Sensors and Actuators:
   • It effectively connects sensors and actuators to the AC 800M controller, ensuring accurate signal communication for seamless automation control.
3. Data Acquisition:
   • The DSAX110A plays a key role in collecting data from sensors, which can be analyzed and used for control purposes to optimize industrial processes.

Dimensions & Weight:

• Length: 234 mm
• Width: 324 mm
• Height: 18 mm
• Weight: 0.5 kg

Environmental Compliance:

• RoHS Compliance: Fully compliant with EU Directive 2011/65/EU (RoHS).
• WEEE Category: Category 5 (Small Equipment, no external dimension exceeding 50 cm).
