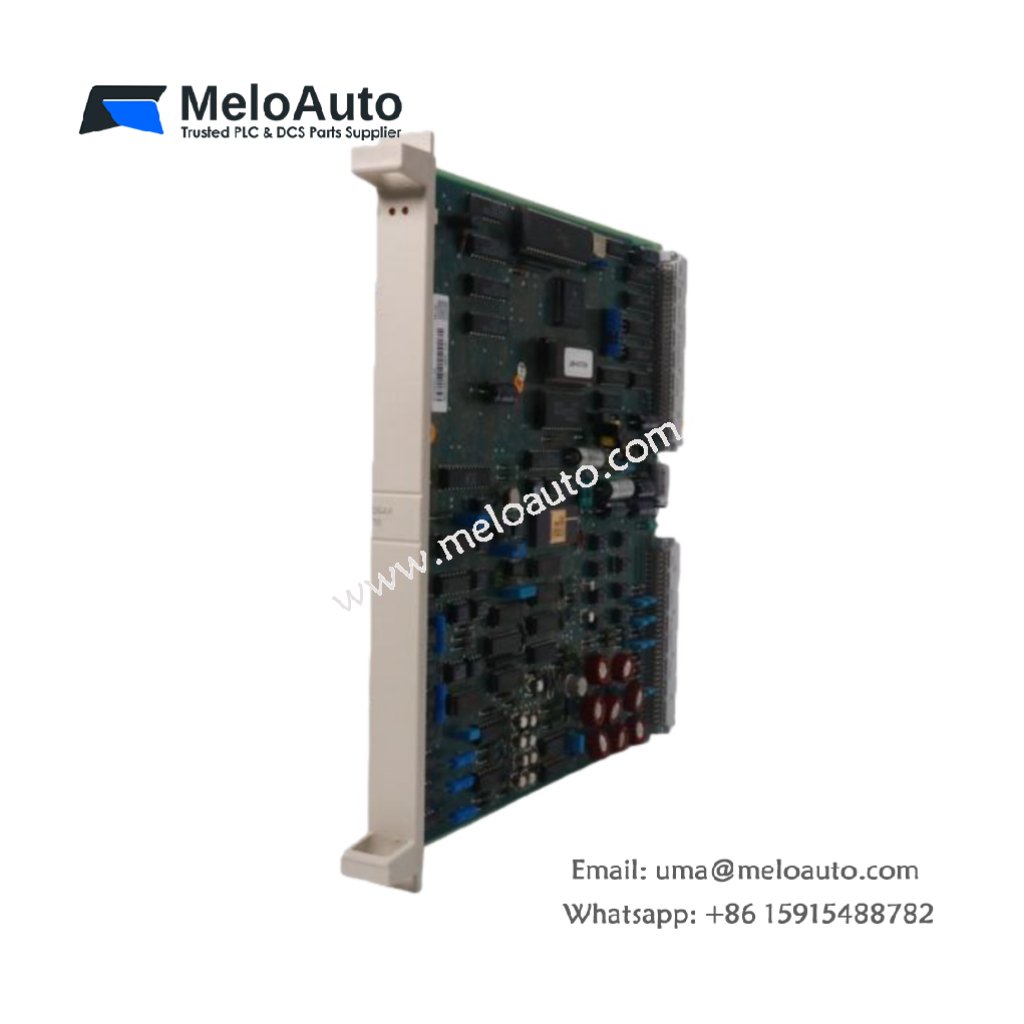

ABB DSAX110 57120001-PC Analog Input/Output Board

The ABB DSAX110 57120001-PC is a high-performance analog input/output board featuring 8 analog input channels. This I/O module is specifically designed for use in ABB Advant Master Process Control Systems, providing reliable data acquisition and signal transmission. Its versatility makes it ideal for industrial applications that require precise and scalable input/output operations.

With directly grounded single-ended inputs and a 12-bit resolution, the DSAX110 guarantees accurate data readings. It supports a wide range of input voltage and current, from 0 to +10V for voltage inputs to 0 to +20 mA for current inputs, offering flexibility for different control systems. Additionally, the board integrates shunt resistors with 0.05% and 0.1% accuracy, ensuring precise current measurement.

Key Features and Specifications:

Product ID: 57120001-PC
ABB Type Designation: DSAX110
Catalog Description: DSAX110 Analog Input/Output Board
Product Type: I/O Module
Channels: 8 analog input channels
Resolution: 12 bits (unipolar)
Input Voltage Range: 0 to +10V
Input Current Range: 0 to +20 mA, 4 to 20 mA with shunt resistors
Shunt Resistor Accuracy: 0.05% (250Ω), 0.1% (500Ω with DSTA 001)
RoHS Compliance: Exempt under EU Directive 2011/65/EU, Article 2(4)
HS Code: 853890
Customs Tariff Number: 85389091

Technical Specifications:

Parameter	Value
Product ID	57120001-PC
Manufacturer	ABB
Type Designation	DSAX110
Catalog Description	Analog Input/Output Board
Number of Channels	8
Input Type	Directly grounded, single-ended
Resolution	12 bits
Input Voltage Range	0 to +10V
Input Current Range	0 to +20 mA, 4 to 20 mA
Shunt Resistor Accuracy	0.05% (250Ω), 0.1% (500Ω)
RoHS Compliance	Exempt from RoHS
HS Code	853890

Physical Dimensions:

Net Weight: 0.4 kg

Environmental Compliance:

RoHS Status: Exempt under EU Directive 2011/65/EU
WEEE Category: 5 (Small Equipment, No external dimension exceeding 50 cm)
Batteries: None

Application:

The ABB DSAX110 57120001-PC is engineered for precision control in industrial automation. With its 8 analog input channels, it offers a highly flexible solution for data acquisition in process control systems. Whether measuring voltage or current, this board ensures accurate signal generation for actuators and instrumentation. It integrates seamlessly with the ABB Advant Master System, enabling high-performance control in various industrial applications.
