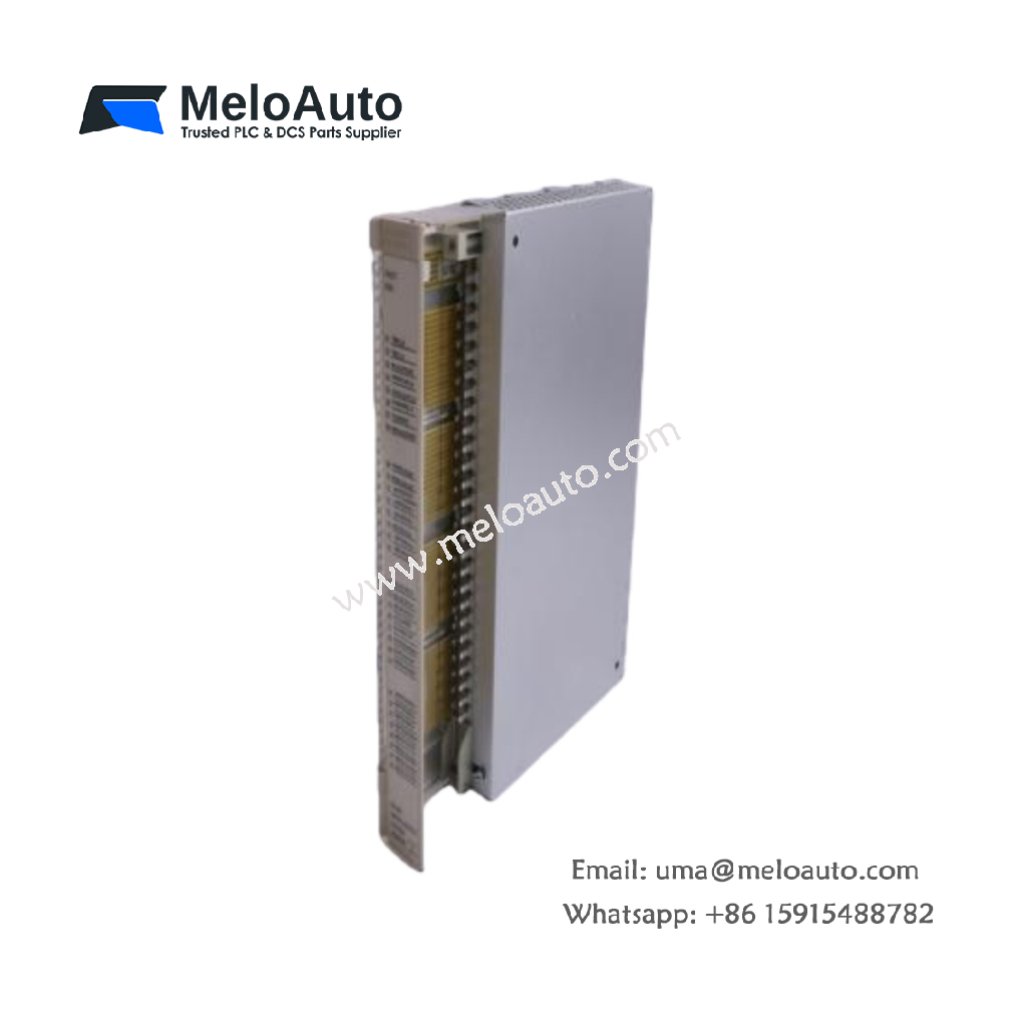

ABB DO620 3BHT300009R1 Digital Output Module

Overview

The ABB DO620 3BHT300009R1 is a high-performance digital output module, part of ABB’s versatile I/O system. It is designed for controlling a variety of field devices with reliable digital signals. Featuring 32 channels and a 60 VDC rated voltage, this module provides efficient output control and ensures seamless operation in demanding industrial environments. Its opto-isolated channels enhance protection from electrical interference, making it suitable for various industrial applications.

Key Features

32 Digital Output Channels: Allows for precise control over multiple field devices simultaneously.
60 VDC Rated Voltage: Ensures reliable and stable operation within a voltage range suitable for industrial equipment.
Opto-Isolation in 4 Groups: Provides enhanced protection from electrical noise, ensuring smooth operation in harsh environments.
Short-Circuit Proof Transistors: Built-in protection to prevent damage to the module, improving system reliability.
High Output Current: Supports a maximum output current of 0.5 A per channel to drive heavy-duty devices.

Applications

The ABB DO620 module is ideal for various automation tasks, including:

Machine control: Efficiently controls machines and actuators that require digital ON/OFF signals.
Process control: Offers reliable signal outputs for controlling valves, pumps, and other process equipment.
Field device control: Connects seamlessly to different field devices, ensuring stable operation in diverse industrial environments.

Technical Specifications

Parameter	Specification
Product ID	3BHT300009R1
ABB Type Designation	D0620
Catalog Description	D0620 Digital Output, 32 channels, 60VDC
Voltage Rating	60 VDC
Channels	32 Digital Output Channels
Max Output Current	0.5 A per channel
Opto-Isolation	4 groups
Module Type	I/O Module
Dimensions (L x H x W)	252 mm x 273 mm x 40 mm
Weight	1.2 kg
RoHS Compliance	Yes (EU Directive 2011/65/EU)
WEEE Category	5 – Small Equipment (External dimensions ≤ 50 cm)
HS Code	853890
Customs Tariff Number	85389091

Environmental and Compliance Information

RoHS Compliant: Fully adheres to the EU RoHS directive for restricted hazardous substances.
WEEE Compliant: Category 5 small equipment, ensuring safe disposal and recycling.

Additional Information

Manufacturer: ABB
Model: DO620
Category: Digital Output Module
Applications: Industrial automation, process control, machine control, field device management.

The ABB DO620 3BHT300009R1 module delivers robust performance and reliable control for a wide range of industrial applications. With 32 digital output channels, opto-isolation for protection, and a rated voltage of 60 VDC, it ensures safe and efficient operation, even in challenging industrial environments.
