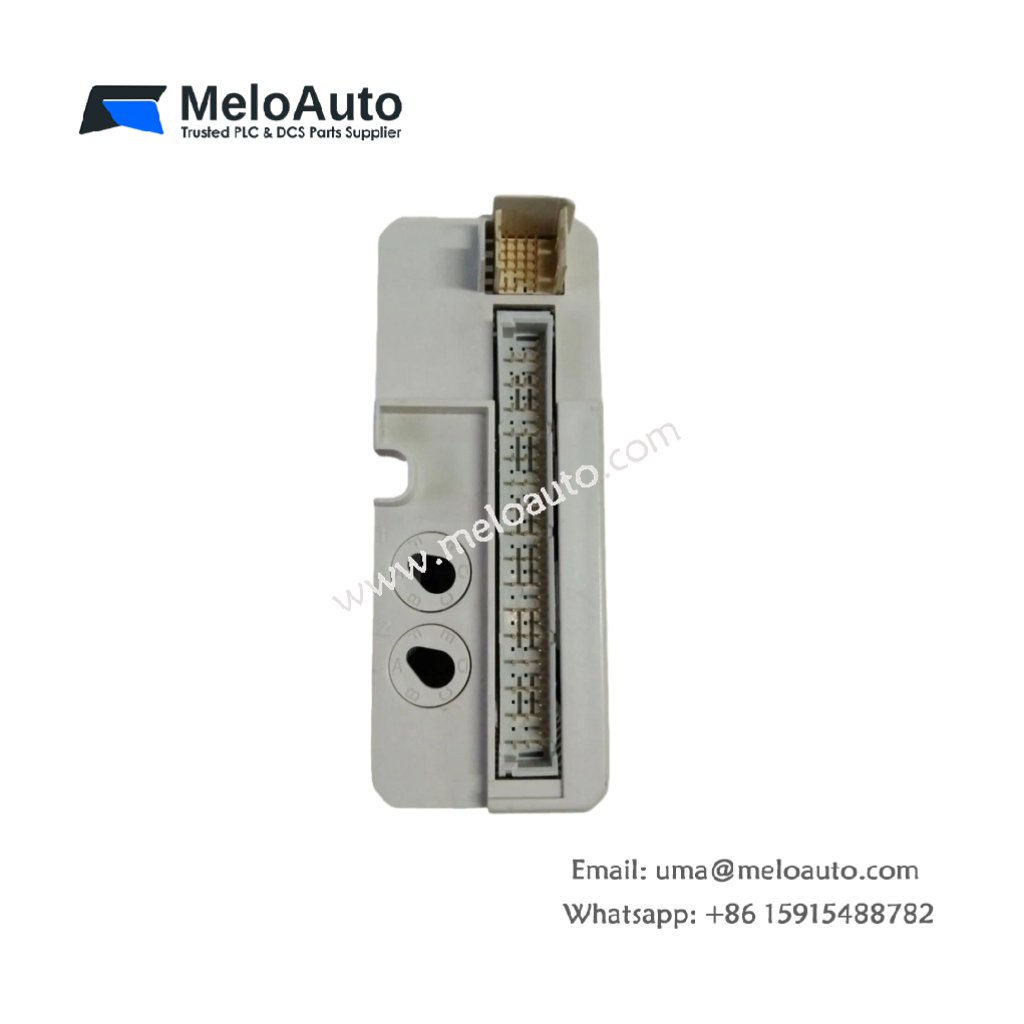

ABB DI810 3BSE008508R1 Digital Input Module

The ABB DI810 3BSE008508R1 is a highly reliable digital input module designed for industrial automation environments. It provides 16 digital input channels, each capable of handling 24V DC signals with current sinking capability. The module divides these channels into two isolated groups, each with eight channels, offering both flexibility and enhanced safety. Furthermore, the ABB DI810 3BSE008508R1 ensures robust performance, featuring voltage supervision and error signal functionality for maintaining system reliability.

Key Features:

Model Number: DI810 3BSE008508R1
Manufacturer: ABB
System Compatibility: ABB System
Product Type: Digital Input Module
Category: Industrial Automation, Digital Inputs

Functional Highlights:

16 Digital Inputs: This module provides 16 inputs designed for 24V DC signals. These channels feature current sinking capability, making it ideal for various industrial applications.
Isolated Groups: The inputs are divided into two isolated groups of 8, ensuring greater safety and preventing interference between channels.
Voltage Supervision: The module supports an input voltage range from 18V to 30V DC. In case of voltage disappearance, it provides error signals through the ModuleBus for early detection and prevention.
Current Limiting & Protection: Each channel is equipped with current-limiting components, EMC protection, and optical isolation barriers, ensuring safe and stable operation in noisy environments.
LED Indicators: Each channel features an LED for real-time status monitoring. This helps simplify troubleshooting and reduces maintenance time.

Technical Specifications:

Specification	Details
Input Voltage Range	18V to 30V DC
Input Current	6 mA at 24V DC
Input Channels	16 (2 groups of 8 isolated channels)
Current Sinking Capability	Yes
Voltage Supervision	Yes, provides error signals on voltage disappearance
Protection	Current limiting, EMC protection, optical isolation barrier
LED Indicators	Yes, for each input channel
Dimensions	(Dimensions available from ABB technical documentation)
Weight	(Weight available from ABB technical documentation)

Benefits:

Enhanced Safety: By using isolated groups and voltage supervision, this module significantly enhances operational safety. It ensures that voltage anomalies don’t affect other channels.
Easy Troubleshooting: With LED indicators and clear error signals, maintenance becomes quick and straightforward, reducing downtime.
Versatile Integration: Thanks to its 16 input channels, this module is ideal for a wide range of industrial applications, ensuring compatibility with various systems.

Applications:

The ABB DI810 3BSE008508R1 is perfect for a wide range of industrial automation applications, such as:

Process Control: Ideal for managing digital input signals in environments like chemical plants or power generation facilities.
Factory Automation: Perfect for controlling sensors, actuators, and other critical equipment in manufacturing settings.
Building Automation: Works well for controlling and monitoring devices within large commercial or industrial buildings.
Machine Monitoring: Reliable for real-time input signals that ensure the continuous operation of industrial machinery.
