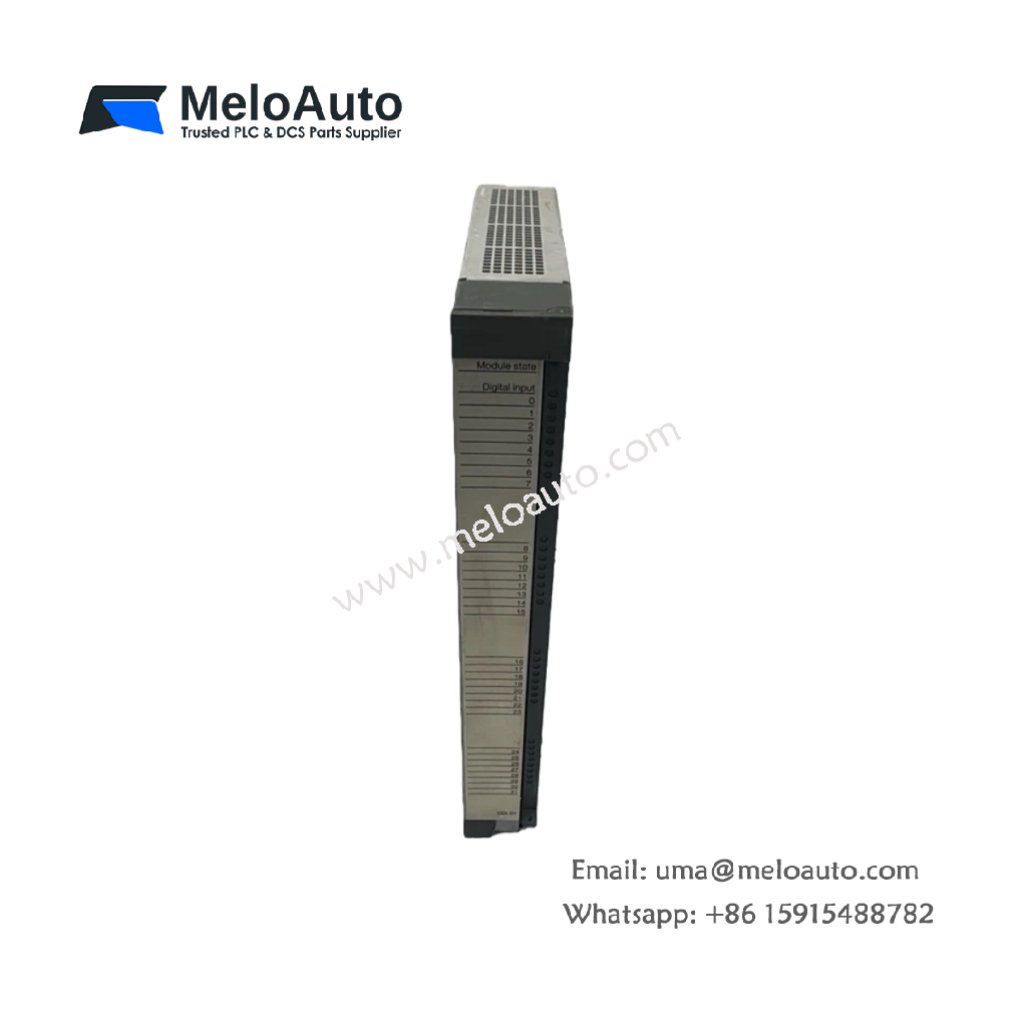

ABB DDI01 Digital Input Module

The ABB DDI01 is a versatile digital input module designed specifically for the ABB Freelance 2000 PLC system. It enables seamless interaction between the PLC and various digital sensors and actuators. By offering 16 discrete input channels, the DDI01 ensures reliable and precise signal processing for a wide range of industrial automation applications.

General Information:

Product Name: DDI01 Digital Input Module
Manufacturer: ABB
System Compatibility: H&B Freelance 2000
Product Type: Digital Input Module
Category: Industrial Automation, Control Systems
Country of Origin: Germany

Key Features:

16 Digital Input Channels: The ABB DDI01 supports up to 16 discrete input channels, allowing flexibility for various control applications.
Channel-to-Channel Isolation: It ensures interference-free operation, preventing cross-talk between individual input channels.
Configurable Input Voltage: The module supports both 24 VDC and 48 VDC input configurations, catering to different application requirements.
Precise Event Time-Stamping: The Sequence of Events (SOE) feature logs accurate timestamps for better diagnostics and monitoring.
Debounce Function: The integrated debounce function filters out noise, ensuring reliable signal processing without spurious inputs.

Technical Specifications:

Specification	Details
Input Channels	16 (individually configurable)
Input Voltage	24 VDC or 48 VDC
Input Current	1 mA per input
Isolation	1500 V (for up to 1 minute)
Operating Temperature	-40°C to +70°C
Humidity	20% to 95% RH, non-condensing
Dimensions	Length: 20.3 cm (8.0″)
	Height: 5.1 cm (2.0″)
	Width: 22.9 cm (9.0″)
Weight	1.8 kg (3 lbs 16 oz)

Benefits:

Improved Control Flexibility: With 16 configurable input channels, the ABB DDI01 allows for broad versatility in control systems.
Enhanced Signal Integrity: The module’s channel-to-channel isolation guarantees interference-free signal processing.
Adaptability: It supports both 24 VDC and 48 VDC inputs, offering flexibility for various industrial setups.
Accurate Event Monitoring: The SOE time-stamping feature enables detailed tracking of events, which is crucial for effective diagnostics and troubleshooting.
Noise-Free Operation: Thanks to its debounce function, the module ensures that noise does not interfere with accurate signal readings, improving system reliability.

Applications:

The ABB DDI01 module is well-suited for industrial automation systems, including:

Manufacturing: For controlling machinery and sensors in automated production lines.
Process Control: Used in chemical plants, oil refineries, and power generation to manage digital signals.
Building Automation: Suitable for controlling lighting, HVAC, and security systems.
Water Treatment: Employed in water and wastewater management for precise control of pumps and other devices.
