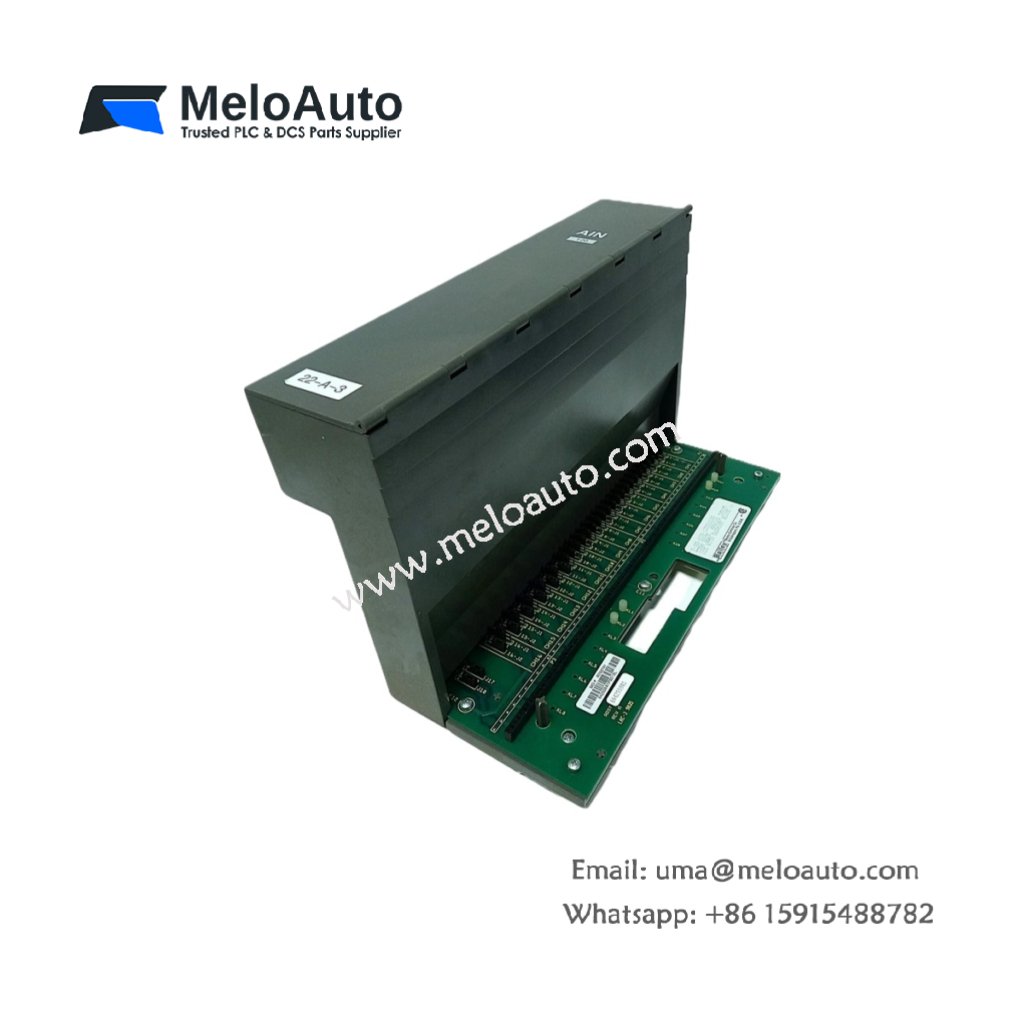

ABB Bailey PHBAIN2000C100 | Analog Input Base

This analog input base provides termination and signal conditioning for INFI 90 analog inputs. It connects field wiring to the analog input module in the rack. The unit mounts on a DIN rail as a complete termination assembly.

Technical specifications

Parameter	Specification
Brand	ABB Bailey
Model	ABB Bailey PHBAIN2000C100
Product Family	INFI 90
Category	Analog Input Base (Termination Base)
Number of Channels	16 (sixteen) analog inputs
Input Signal Types	0-20mA, 4-20mA, 0-10V (selectable)
Resolution	12 bits
Input Impedance	250 Ω (current), 100 kΩ (voltage)
Accuracy	±0.15% of full scale
Channel Isolation	None (common ground)
Terminal Type	Screw clamp (fixed)
Wire Gauge	24 to 14 AWG
Component Count	1 base plate, 16 terminal blocks, 2 ribbon headers
Power Supply	24V DC external (loop power)
Current Consumption	200 mA typical (logic)
Status Indicators	1 x LED (PWR)
Dimensions (L x W x H)	Approx. 28 cm x 15 cm x 8 cm
Weight	Approx. 0.6 kg
Energy Storage	None (no battery or capacitor)
Operating Temperature	-20°C to 60°C
Mounting	DIN rail (EN 50022)
Compatible Modules	IASI, IMASI series analog input modules

Detailed Technical Analysis

This analog input base provides termination for up to sixteen field current or voltage signals. It connects to the analog input module via a ribbon cable assembly. The base includes loop power distribution for 2-wire 4-20mA transmitters. You select input ranges using jumper blocks on the base plate.

Now let us examine its power distribution features. This base supplies 24V DC loop power to connected transmitters. Each channel includes a current limiting resistor for protection. The base draws 200 milliamps from an external 24V DC supply. Sixteen screw terminal blocks accept field wiring from sensors and transmitters.

This analog base weighs 0.6 kilograms for stable DIN rail mounting. A single green LED indicates that loop power is present. The base contains no batteries or capacitors for energy storage. Two ribbon cable headers connect to the analog input module above. The wide temperature range suits harsh industrial environments.

Installation and Wiring Guidelines

You mount this base on a standard DIN rail in your control cabinet. Connect the 24V DC loop power supply to the designated terminals. Wire each field transmitter to its designated screw terminal pair. Attach the ribbon cable from the base to the analog input module.

Select the input range for each channel using the jumper blocks. Use shielded twisted-pair cables for all analog signal wiring. Ground the shield only at the base end for noise reduction. Always power down the system before connecting or disconnecting the ribbon cable.

Practical Applications

Engineers use this analog base for INFI 90 system expansion and repair. It organizes field wiring for analog input signals. This component also works in legacy DCS retrofit projects. Its 16 channels suit medium to large process monitoring applications.

Summary of Features

To conclude, this analog input base provides 16 channels with selectable input ranges. It weighs 0.6 kilograms and includes loop power distribution. Choose ABB Bailey PHBAIN2000C100 for reliable analog signal termination in INFI 90 systems.
