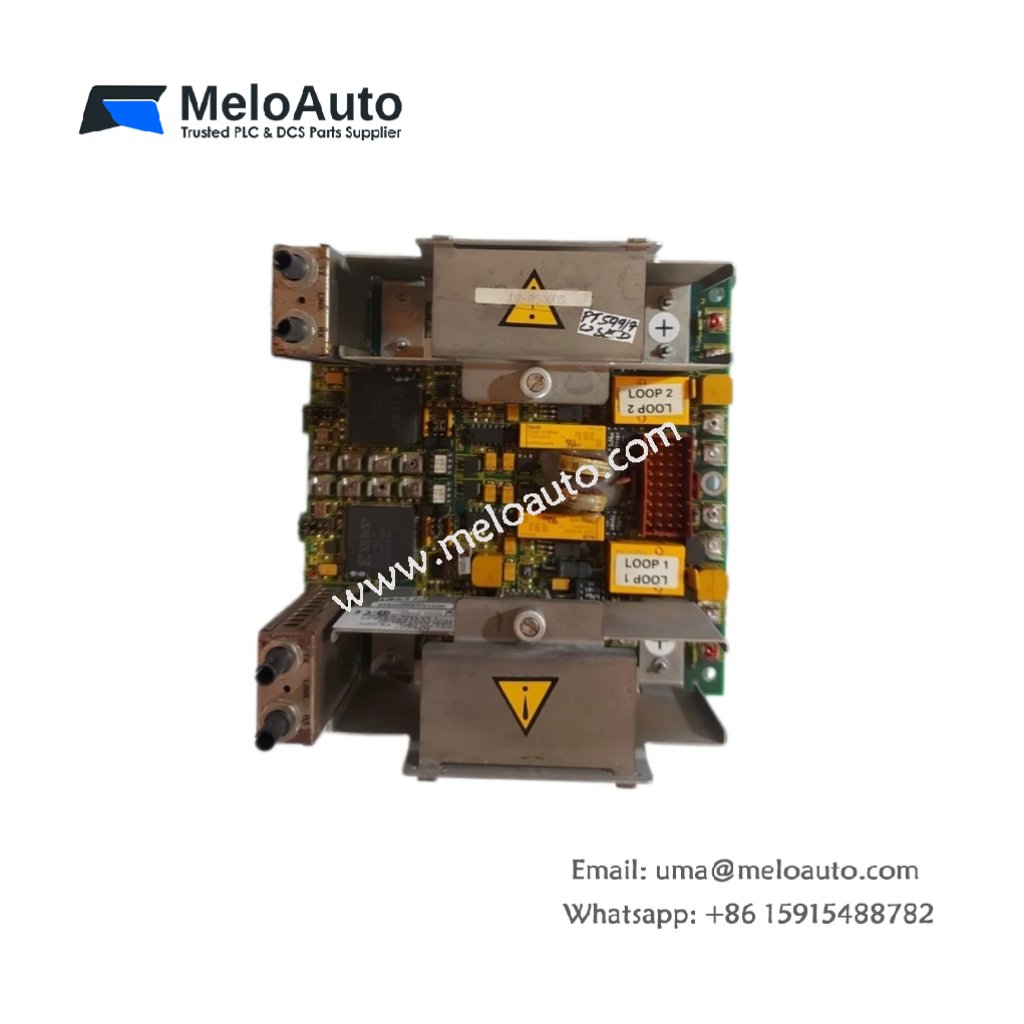

ABB Bailey NTCF01 | Optical Termination Unit for Infi 90 Networks

Reliable Signal Conversion for Industrial Control Systems

The ABB Bailey NTCF01 is an advanced optical termination unit specifically designed for use with the Infi 90 control system. This module efficiently converts optical signals, ensuring high-quality transmission over long cable runs while maintaining signal integrity. Ideal for industrial applications, it plays a crucial role in enhancing the communication reliability of control systems.

Key Features of the ABB Bailey NTCF01 Optical Termination Unit

The NTCF01 offers a reliable solution for managing optical signals in industrial networks. With its high-performance capabilities, it ensures seamless integration and operation within Infi 90 environments.

Manufacturer: ABB
Model: NTCF01
Category: Optical Termination Unit

Technical Specifications

Feature	Specification
Signal Type	Optical to Optical Conversion
Fiber Compatibility	Single-mode, Multi-mode
Insertion Loss	Low
Return Loss	High
Mounting	DIN Rail Mountable
Dimensions (L x W x H)	120mm x 75mm x 35mm
Weight	0.3 kg
Operating Temperature	-10°C to +60°C
Interface	Optical Fiber
Protection	No direct protection details available

Enhanced Performance and Reliability

The ABB Bailey NTCF01 ensures reliable optical signal conversion, providing both single-mode and multi-mode fiber support. With its low insertion loss and high return loss, the unit guarantees minimal signal degradation over long distances, improving overall network performance.

This optical termination unit is designed for industrial environments where maintaining high-quality communication is critical. It offers excellent signal integrity, making it ideal for systems requiring consistent, uninterrupted data transfer.

Effortless Installation and Flexible Usage

Designed for convenience, the NTCF01 features a DIN rail mount for quick installation in control cabinets. Its compact size makes it highly versatile, allowing easy integration into various Infi 90 network setups. The module’s optical-to-optical conversion ensures that it handles signal conversion efficiently without compromising performance.

Applications of the ABB Bailey NTCF01 Optical Termination Unit

The NTCF01 plays a vital role in extending the reach and improving the performance of Infi 90 control systems. Key applications include:

Extending the reach of Infi 90 networks: Facilitating longer cable runs while maintaining signal quality.
Connecting Infi 90 components: Enabling communication between devices in different locations of the system.
Improving signal quality: Reducing signal loss and ensuring reliable data transmission over long distances.

This unit is indispensable for maintaining high-quality data transfer in large, complex industrial environments.
