ABB Bailey NTAM01 Analog Master Termination Unit

Overview

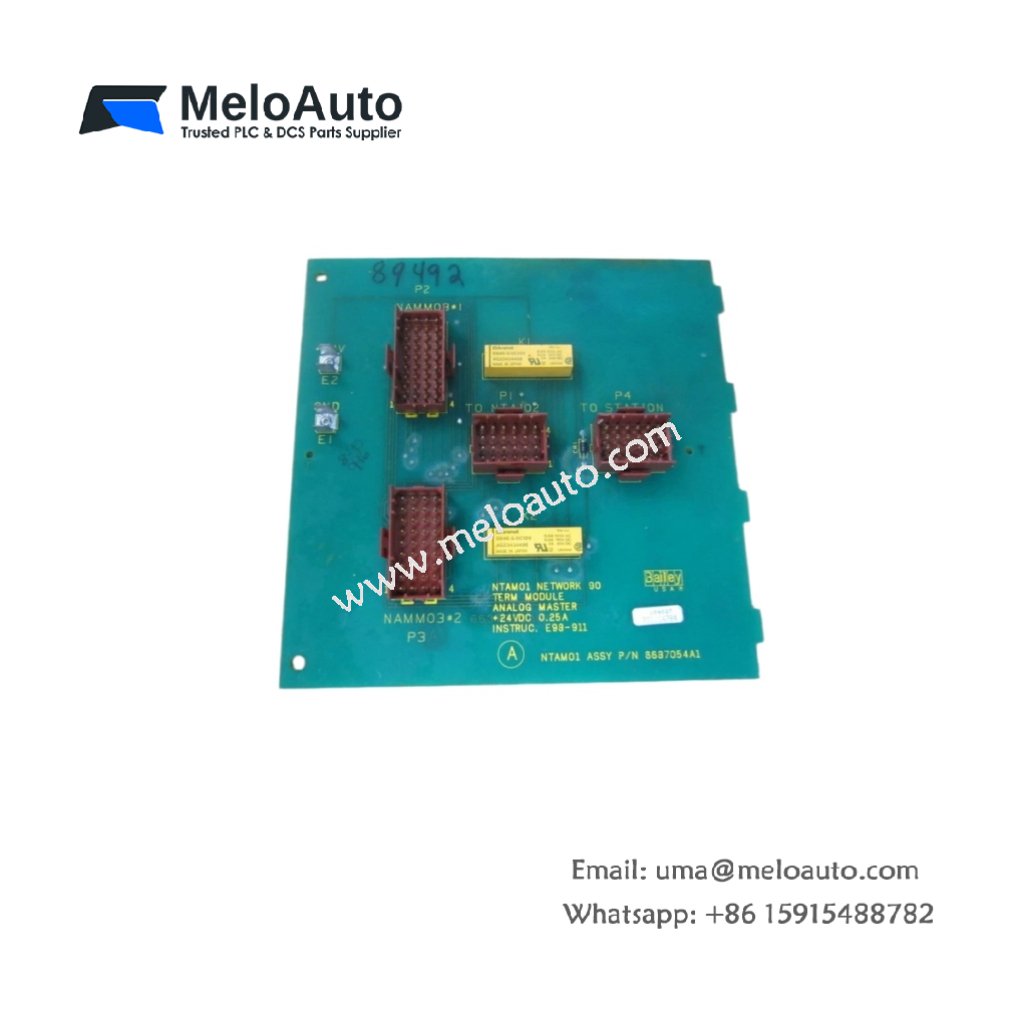

The ABB Bailey NTAM01 Analog Master Termination Unit is a high-performance solution designed to integrate seamlessly into industrial automation systems. It ensures stable and reliable connectivity by supporting multiple devices, including NTAI02 units and NDISe1 Digital Indicator Stations. Furthermore, it routes calibration voltage from the IMAMM03 module and passes cold junction references, enhancing measurement accuracy.

Key Features

The ABB Bailey NTAM01 offers superior features to improve system performance. It supports up to four NTAI02 units and four NDISe1 Digital Indicator Stations, making it ideal for large-scale automation systems. The unit also incorporates standardized cabling, providing easy and secure connections between modules and indicator stations. For mounting, the NTAM01 fits perfectly into the NFTP01 Field Termination Panel, simplifying installation.

Technical Specifications

Feature	Description
Model	NTAM01
Manufacturer	ABB
Type	Analog Master Termination Unit
Connectivity	Supports up to four NTAI02 units and four NDISe1 Digital Indicator Stations
Calibration and Compensation	Routes calibration voltage from the IMAMM03 module and passes cold junction references
Cabling	Factory-wired cables for easy connection between modules and indicator stations
Mounting	Fits into a standard NFTP01 Field Termination Panel
Temperature Range	-20°C to +60°C
Power Supply	24 VDC
Weight	600 g

Applications

The ABB Bailey NTAM01 is ideal for industrial applications requiring precise analog-to-digital conversions, calibration, and stable connectivity. It is particularly suited for systems in power plants, manufacturing facilities, and process control systems, where accurate data transmission and easy module integration are essential.

Advantages

Versatile Connectivity: The NTAM01 supports up to four NTAI02 units and NDISe1 Digital Indicator Stations, offering robust connections for large systems.
Accurate Calibration: By routing calibration voltage and cold junction references from the IMAMM03 module, it ensures precise signal measurement.
Easy Installation: With standardized, factory-wired cables, the NTAM01 simplifies setup and reduces installation time.
Seamless Integration: Designed to fit into the NFTP01 Field Termination Panel, this unit integrates smoothly into existing systems.

Conclusion

The ABB Bailey NTAM01 Analog Master Termination Unit is a reliable and essential component for any industrial automation system. Its excellent connectivity, calibration features, and easy installation make it a perfect fit for demanding environments that require high accuracy and seamless operation.
