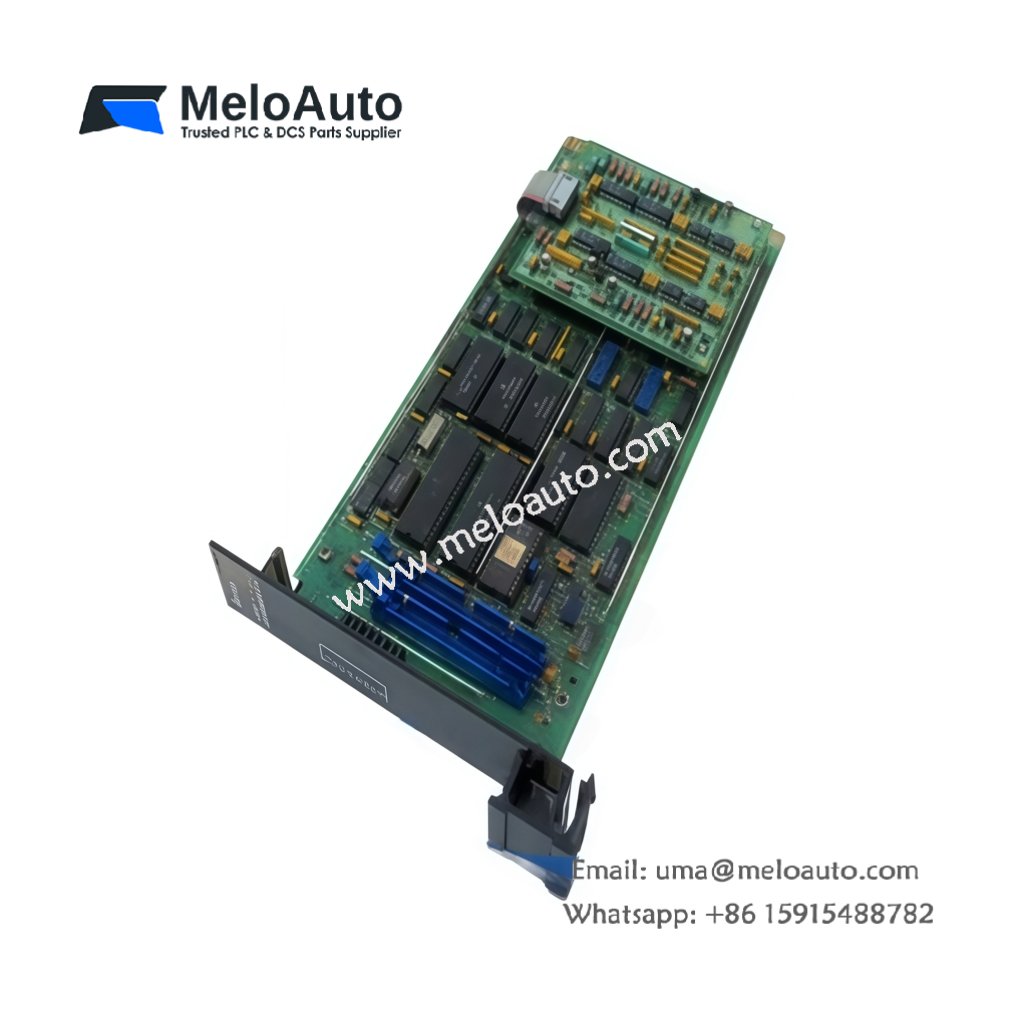

ABB Bailey NQRC01 Quick Response Controller

Technical Specifications

Parameter	Value
Brand	ABB Bailey
Model	NQRC01
Category	Quick Response Controller
Weight	1.98 lbs (0.90 kg)
Dimensions	8.2 x 5.7 x 3.1 inches
Component Count	312 discrete components
Processor Type	32-bit RISC
Clock Speed	66 MHz
Program Memory	512 KB flash
Data Memory	256 KB SRAM
Backup Memory	64 KB EEPROM
Processing Speed	0.15 µs per boolean instruction
Digital I/O Capacity	512 points
Analog I/O Capacity	64 channels
Communication Ports	2 x RS-485, 1 x Ethernet
Energy Storage	6 x 470µF, 4 x 100µF
Backup Battery	3.6V lithium (10 years life)
Operating Temperature	0°C to 55°C

Physical Construction and Component Layout

This NQRC01 quick response controller measures 8.2 inches in height. Its width reaches 5.7 inches with a depth of 3.1 inches. The total weight comes to approximately 1.98 pounds. Manufacturers placed 312 discrete components on this eight-layer PCB. These components include a 32-bit RISC CPU, memory banks, communication controllers, and power regulators. The high-density design enables fast signal processing.

Processing Power and Memory Architecture

NQRC01 features a 32-bit RISC processor running at 66 MHz. This CPU executes boolean instructions in just 0.15 microseconds. Program memory includes 512 KB of flash for user applications. Data memory provides 256 KB of SRAM for real-time variables. An additional 64 KB of EEPROM stores configuration parameters permanently. A 3.6V lithium battery backs up the SRAM contents. This battery lasts approximately 10 years under normal use. Consequently, the controller retains critical data through extended power outages.

I/O Capacity and Communication Ports

The quick response controller manages up to 512 digital I/O points. It also handles up to 64 analog I/O channels for process control. Three onboard communication ports support various network needs. Two RS-485 ports connect to Modbus networks and remote I/O. One Ethernet port enables high-speed data exchange with SCADA systems. The NQRC01 responds to input changes within milliseconds. Therefore, this controller suits time-critical applications like high-speed packaging.

Energy Storage and Application Use

NQRC01 integrates six 470µF capacitors for bulk energy storage. Four additional 100µF capacitors filter high-frequency power noise. You will find this controller in Bailey INFI 90 distributed control systems. It handles fast logic sequences and emergency shutdown routines. The NQRC01 operates reliably from 0°C to 55°C ambient. For example, it controls high-speed bottling lines or web printing presses. A real-time clock adds timestamps to all diagnostic events. Therefore, this quick response controller delivers high-speed performance for demanding industrial automation.
