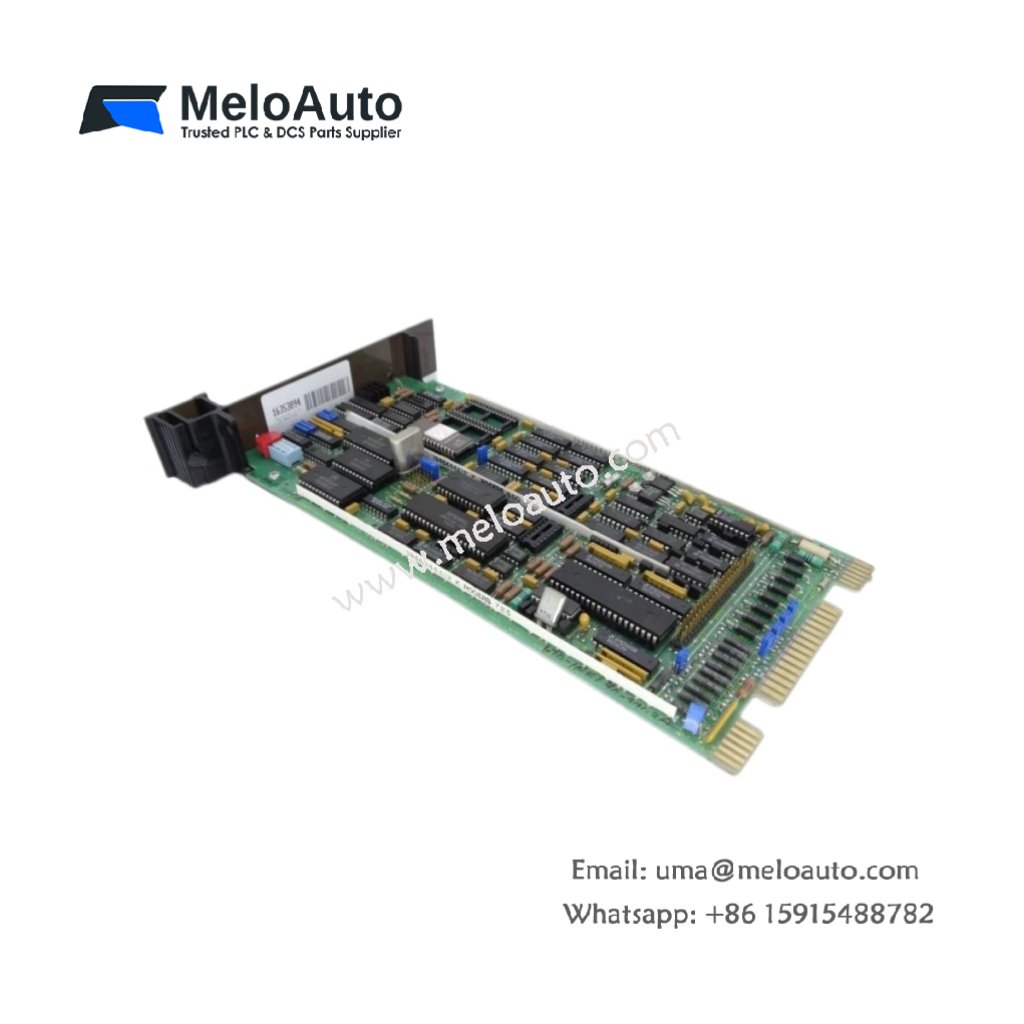

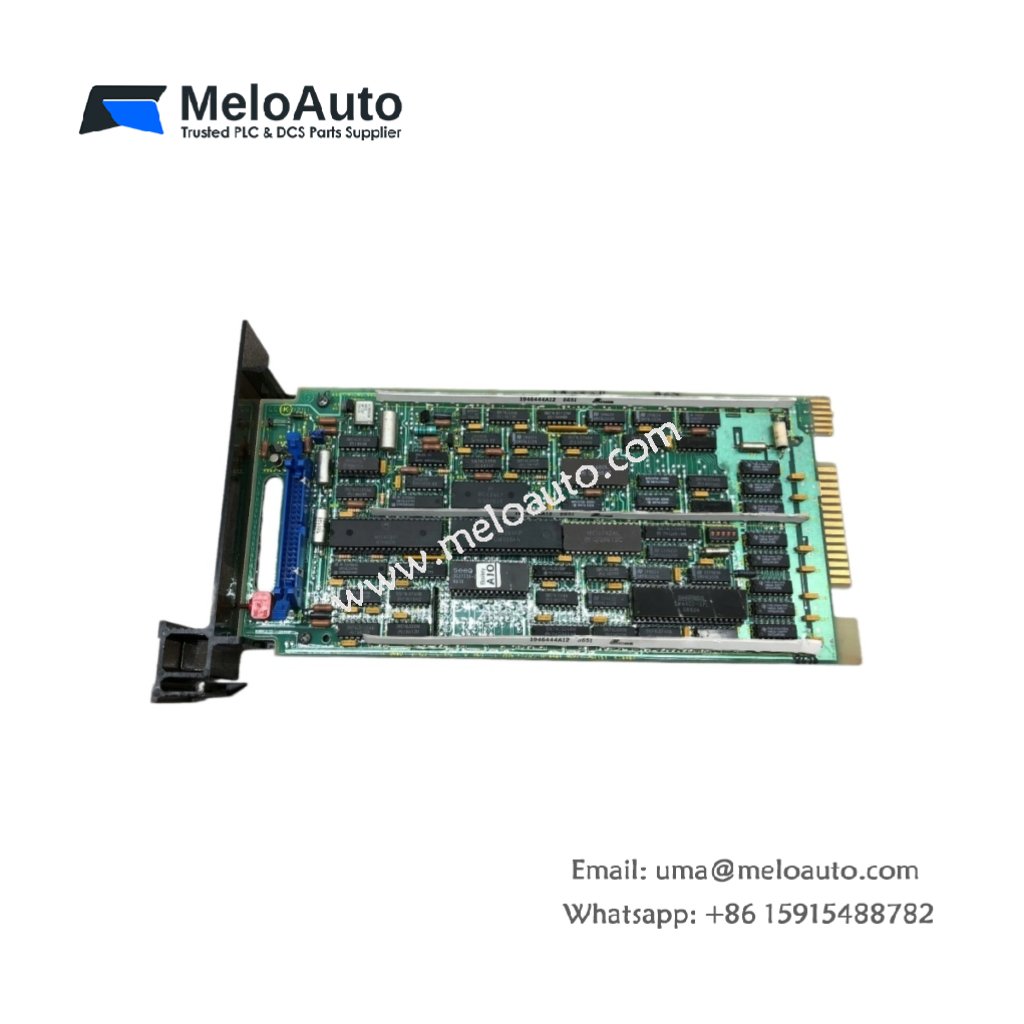

ABB Bailey NPTM01 Network 90 Point Table Module for Process Control

The NPTM01 serves as a dedicated point table module for ABB Bailey Network 90 systems. This ABB unit manages process variable mapping and data organization for distributed control. We engineered this module to streamline signal routing and enhance system configuration flexibility.

Technical Specifications and Design Features

This point table module weighs approximately 0.42 kilograms. Its dimensions measure 280 millimeters in height, 25 millimeters in width, and 280 millimeters in depth. The unit features a robust metal housing with integrated edge connectors for backplane installation.

Engineers will appreciate the flexible point mapping capabilities of the NPTM01. This module organizes up to 256 I/O points into logical tables for system access. Consequently, users can group related signals for simplified programming and maintenance.

Furthermore, the dedicated 16-bit processor handles all data organization tasks independently. This design offloads point management from the system master controller. The NPTM01 then provides organized data to the control processor through the Module Bus.

Data Storage and Configuration

The NPTM01 includes 128 kilobytes of RAM for dynamic point table storage. This memory holds current I/O assignments and signal routing information during operation. An additional 256 kilobytes of flash memory preserves configuration settings during power cycles.

Users can configure point tables to match specific process requirements. Each table defines signal sources, engineering units, alarm limits, and data scaling. For reference, other Bailey Network 90 modules share this same configuration methodology.

System Integration and Architecture

You can install this module directly into Network 90 rack systems. The NPTM01 communicates with I/O modules and the controller through the backplane bus. This integration enables seamless data exchange between field devices and control logic.

The module operates from 5V DC power supplied through the backplane. It consumes only 2.8 watts during normal operation. This low power draw allows users to maximize module density per rack. For reference, other Network 90 modules share this same form factor and installation method.

Diagnostics and Operational Reliability

The NPTM01 includes comprehensive diagnostic features for system verification. Status LEDs indicate power, communication activity, and configuration validity. The module performs continuous self-checks to detect point table errors. These diagnostics simplify troubleshooting and ensure reliable data mapping.
