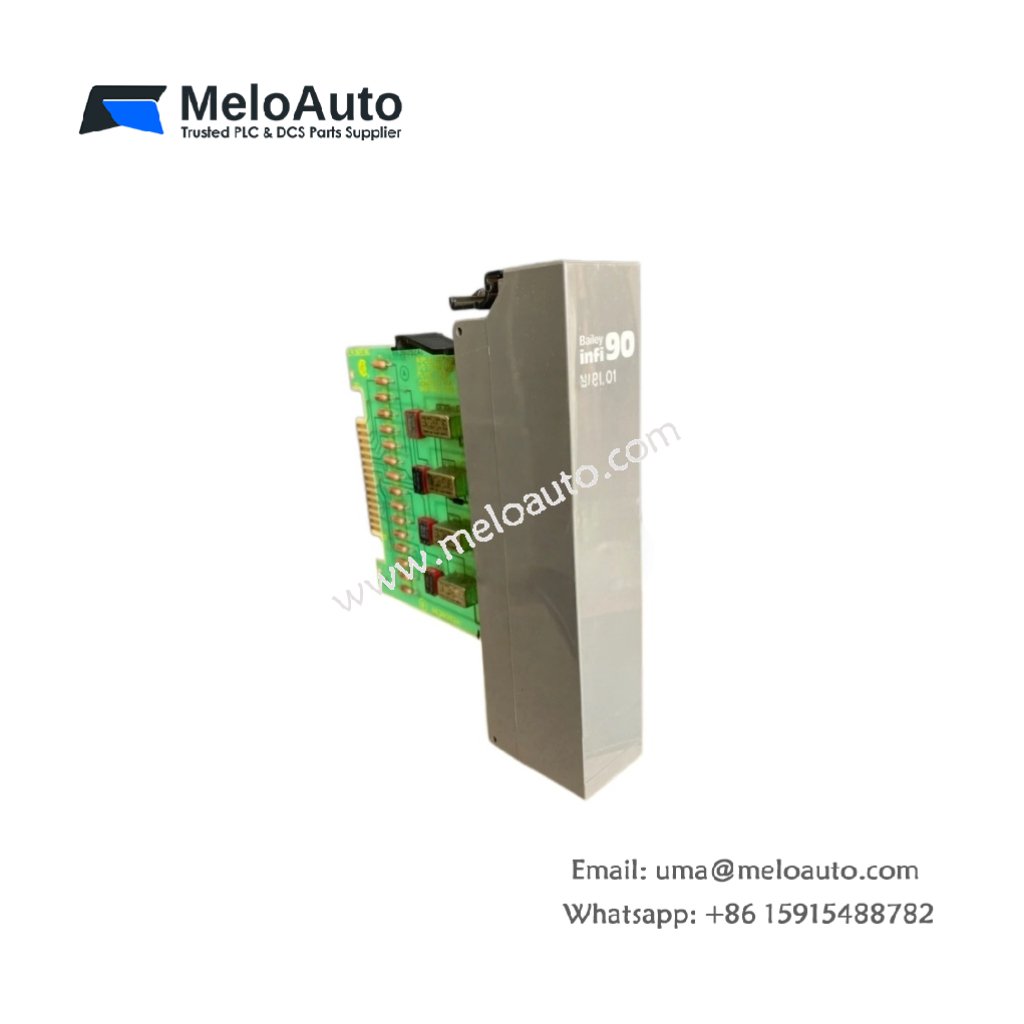

ABB Bailey NIPL01 Plant Loop Termination

This termination module provides field wiring connections for ABB Bailey plant loops. You will find the ABB Bailey NIPL01 Plant Loop Termination Module simplifying cable termination between field devices and I/O cards. Its passive design contains no active components for maximum reliability.

Technical Specifications

This module features thirty-two screw terminal positions across two removable blocks. You can also locate one ribbon cable header for connection to the I/O module. The ABB Bailey NIPL01 Plant Loop Termination Module stores no battery energy or electrical charge whatsoever. Instead, it uses only passive copper traces for all signal routing. Therefore, this module never needs any form of routine maintenance.

Parameter	Specification
Full Product Name	ABB Bailey NIPL01 Plant Loop Termination Module
Series	INFI 90 / Bailey
Product Type	Plant Loop Termination Unit
Weight	0.56 kg
Length	26.5 cm
Width	12.5 cm
Terminal Positions	32
Terminal Blocks	2 (removable, 16 each)
Cable Header	1 x 50-pin ribbon
Wire Gauge	14-22 AWG
Voltage Rating	300 V maximum
Current Rating	10 A per terminal
Operating Voltage	None (passive)
Energy Storage	None (complete passive)

Wiring Configuration Details

The ABB Bailey NIPL01 Plant Loop Termination Module requires no external power supply for its operation. You can wire field transmitters and actuators directly to the numbered screw terminals. Each terminal position includes a clear label for easy signal identification. Moreover, the two removable terminal blocks allow quick disconnection without rewiring work. This design saves significant time during cabinet maintenance or module replacement.

Mechanical Integration and Mounting

You must mount the ABB Bailey NIPL01 Plant Loop Termination Module onto a standard DIN rail inside the cabinet. After positioning, secure the module using the integrated rail clip at the rear. The module measures exactly 26.5 centimeters in length and 12.5 centimeters in width. Its total weight reaches approximately 0.56 kilograms for straightforward handling. Furthermore, the single 50-pin ribbon header connects directly to the upstream I/O card.

Environmental and Storage Guidelines

You should store this ABB Bailey NIPL01 Plant Loop Termination Module in a clean dry location away from dust. The module operates reliably between -20°C and +70°C ambient temperature. Likewise, keep the unit away from water spray or corrosive chemicals. Because the module contains no active components, it offers exceptional long-term reliability with zero power consumption.
