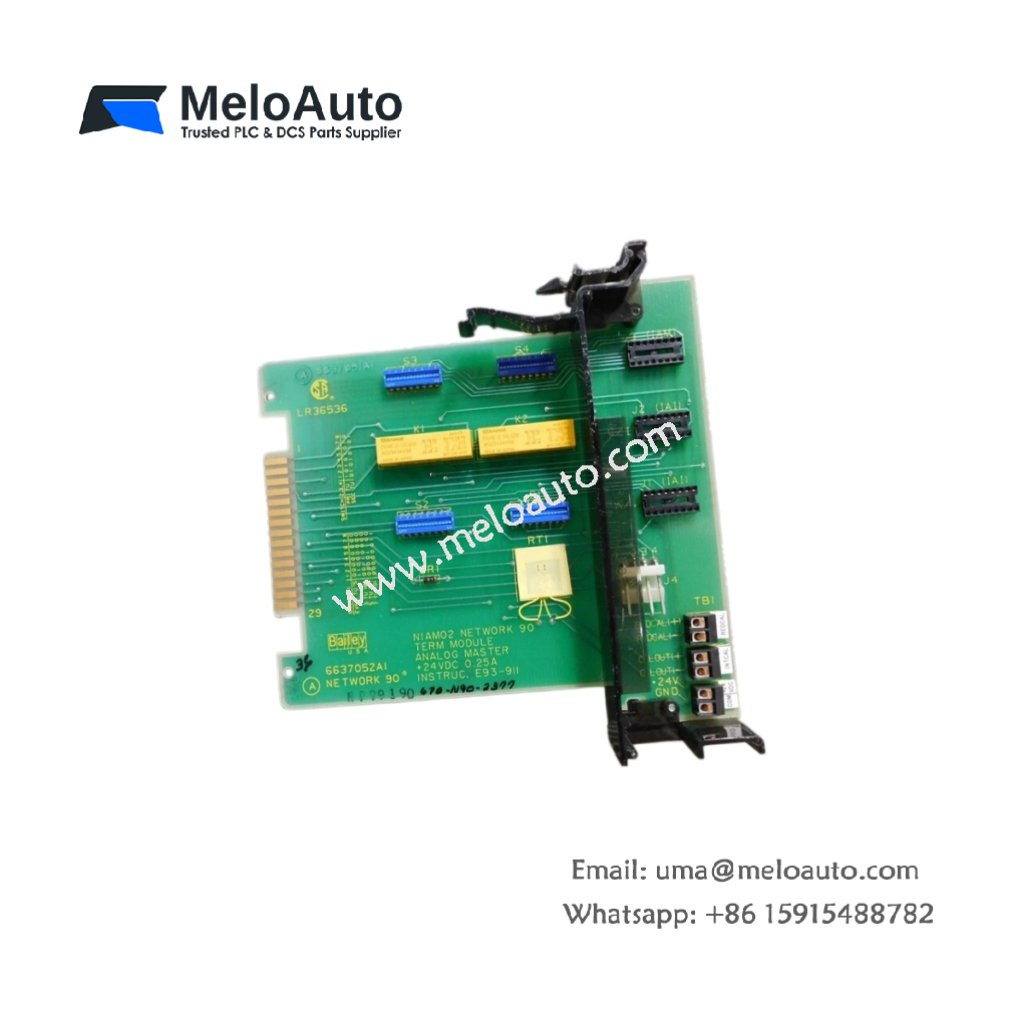

ABB Bailey NIAM02: Analog Master Termination Module

Analog signal processing requires precise termination for accurate measurement and control. The ABB Bailey NIAM02 analog master termination module delivers this critical interface function. This module terminates field analog signals for connection to the control system. It provides signal conditioning and isolation for up to eight input channels.

Technical Architecture and Specifications

This termination module features a compact footprint suitable for high-density cabinet layouts. Its dimensions measure 12.7 cm in width and 25.4 cm in depth. The ABB Bailey NIAM02 weighs approximately 0.9 kilograms for secure mounting. It connects to the system via a 50-pin ribbon cable header. This header carries both analog signals and power to the module.

The internal assembly contains a single integrated printed circuit board with eight independent channels. Each channel incorporates signal conditioning circuits and isolation barriers. Engineers will note the absence of internal battery backup or energy storage components. This passive design eliminates maintenance cycles associated with aging electrolytic capacitors. Consequently, system integrators achieve long-term reliability without periodic component replacement.

Connectivity and Signal Handling

The ABB Bailey NIAM02 accepts standard 4-20 mA analog input signals from field transmitters. Each channel features a dedicated screw terminal block for field wiring. These terminals accept AWG 14 to 22 gauge conductors securely. For loop power, it provides 24 V DC excitation to two-wire transmitters. Status indicators display channel activity and loop integrity at a glance.

Isolation and Signal Integrity

The ABB Bailey NIAM02 operates reliably across standard industrial environments. It functions within a temperature range of -20°C to 65°C. Isolation barriers protect the control system from field wiring faults effectively. These barriers prevent ground loops from affecting measurement accuracy. Field technicians can troubleshoot individual channels without disrupting other measurements. This modular approach reduces system downtime during maintenance activities.
