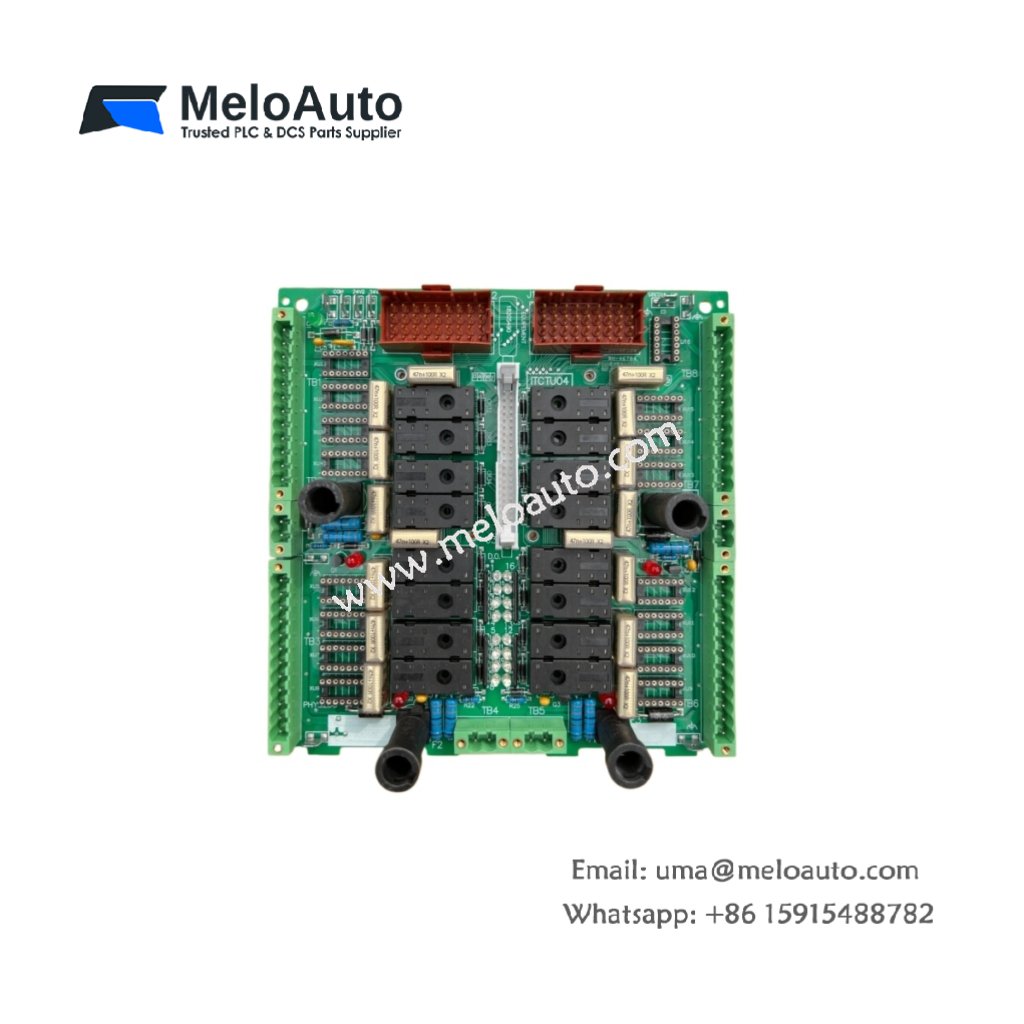

ABB Bailey ITCTU04: Reliable Field Termination Solution

The ABB Bailey ITCTU04 termination unit provides a robust interface for field wiring. This module ensures reliable signal transmission within distributed control systems. It simplifies the connection between field devices and the main controller. Consequently, this design reduces installation time significantly.

Technical Architecture and Specifications

This unit features a compact footprint for high-density cabinet layouts. Its dimensions measure 10.2 cm in width and 25.4 cm in depth. The ABB Bailey ITCTU04 weighs approximately 0.9 kilograms, ensuring structural stability. It accepts standard 24 V DC loop power for field devices. Additionally, the assembly contains a single, integrated termination board. This board eliminates the need for external wiring blocks.

Engineers will appreciate the absence of internal energy storage components. This design choice enhances long-term reliability in industrial environments. Furthermore, the ABB Bailey ITCTU04 uses high-grade epoxy for circuit protection. This material provides excellent resistance to humidity and vibration.

Connectivity and Integration

The unit utilizes 50-pin flat ribbon cable connectors for backplane communication. This interface supports high-speed data exchange with compatible ABB systems. For field wiring, it accepts AWG 12 to 22 wires directly. A single unit accommodates up to 16 discrete input or output channels. Therefore, it streamlines system architecture for complex automation tasks.

Operational Reliability

The ABB Bailey ITCTU04 operates within a temperature range of -20°C to 70°C. Its passive design contains zero electrolytic capacitors, which mitigates failure risks. This architecture ensures predictable performance over a 20-year lifecycle. Maintenance crews benefit from the clearly labeled terminal blocks. These blocks allow for quick troubleshooting without removing the unit.
