ABB Bailey IMFBM01 FIP Slave Module: High-Speed Fieldbus Communication

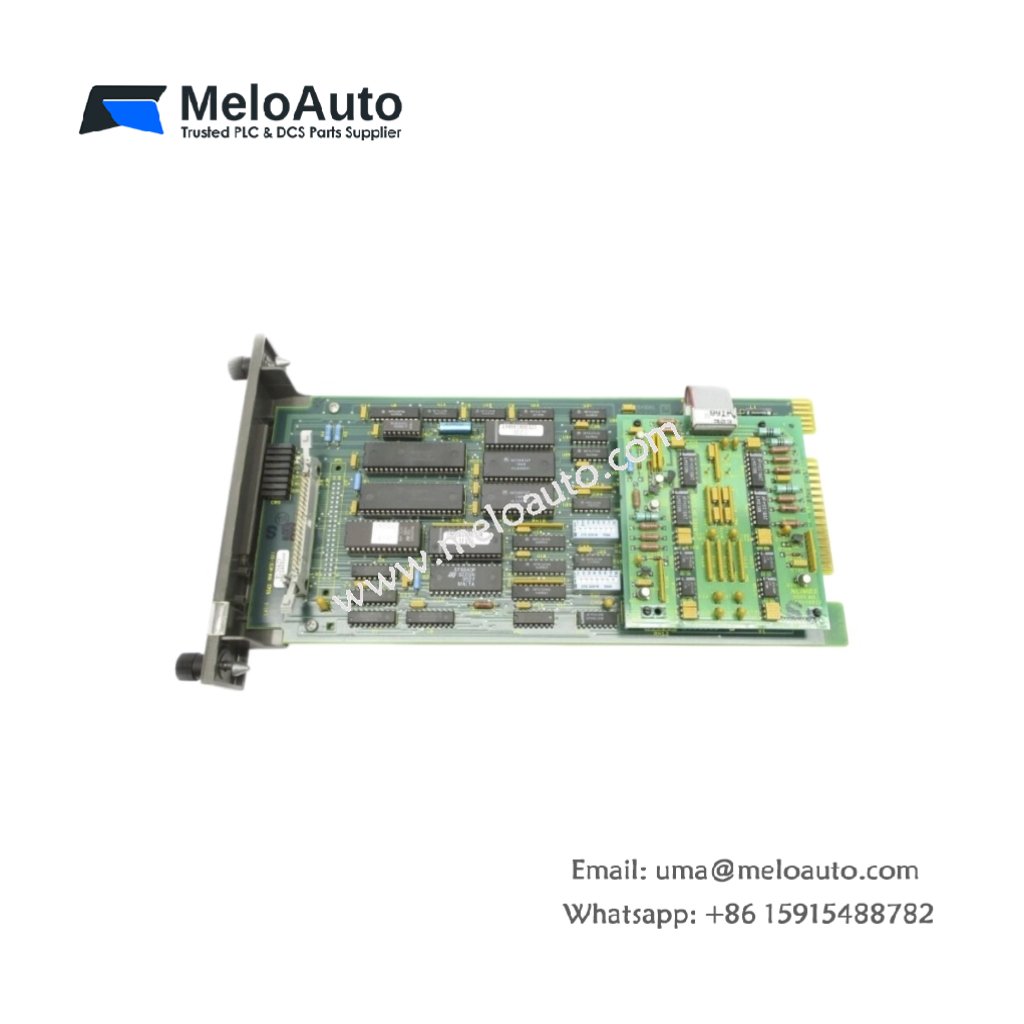

Overview of the ABB Bailey IMFBM01 FIP Slave Module

The ABB Bailey IMFBM01 functions as a dedicated FIP (Factory Instrumentation Protocol) slave module for distributed control systems. We engineer this communication interface specifically for the ABB Bailey Infi 90 platform. Its primary role involves bridging field devices with the control network through high-speed fieldbus connectivity.

Key Technical Specifications and Hardware Architecture

Engineers will recognize the ABB Bailey IMFBM01 for its robust communication capabilities. This module measures approximately 220 mm in height, 160 mm in width, and 35 mm in depth, with a total weight of 0.78 kilograms. It features dual FIP bus connectors using bayonet-style locking mechanisms for secure field wiring.

The internal architecture incorporates three dedicated processing layers for protocol management and data buffering. Additionally, the module includes 2 MB of onboard flash memory for configuration storage and firmware updates. This design maintains communication integrity even during network interruptions. You can integrate this slave module with protection devices like the RMS-TSG-TZ-C Static Trip Unit for comprehensive system monitoring.

Performance Parameters and Network Integration

We designed the ABB Bailey IMFBM01 for deterministic communication in industrial environments. Its FIP bus operates at 1 Mbps data rates with support for up to 32 slave devices per segment. The module provides electrical isolation of 1500 VDC between the fieldbus and control logic sections. Consequently, this FIP slave module delivers the reliable connectivity that modern automation systems require.

Technical Specifications Table
