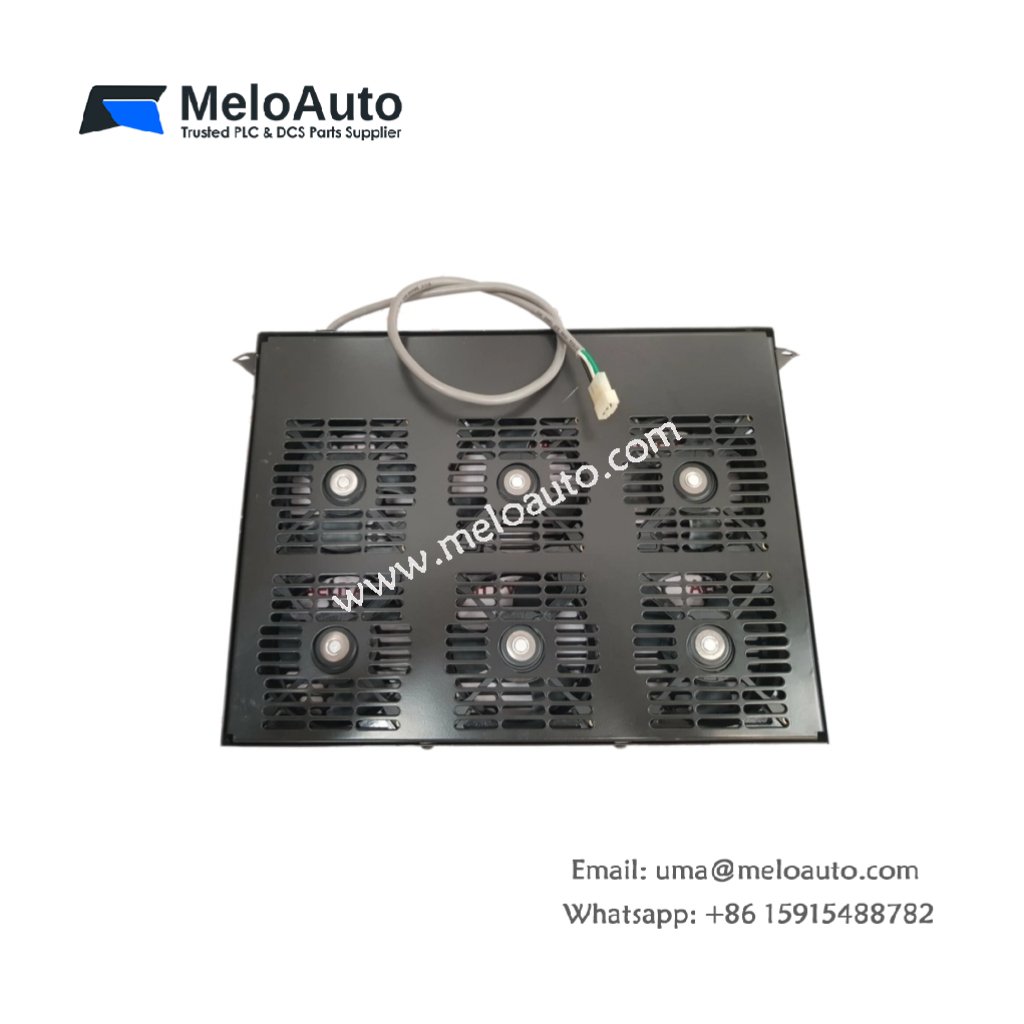

ABB Bailey IEFAN02 | Fan Assembly

This fan assembly provides forced air cooling for INFI 90 rack components. It mounts on the top or bottom of the rack enclosure. The unit ensures proper airflow to prevent overheating of critical modules.

Technical specifications

Parameter	Specification
Brand	ABB Bailey
Model	ABB Bailey IEFAN02
Product Family	INFI 90
Category	Fan Assembly
Fan Size	80 mm x 80 mm x 25 mm
Rated Voltage	24V DC
Operating Voltage Range	18V to 28V DC
Current Consumption	150 mA typical
Power Consumption	3.6 Watts
Airflow	50 CFM (cubic feet per minute)
Static Pressure	0.2 inches of water
Fan Speed	3500 RPM typical
Noise Level	35 dBA
Bearing Type	Dual ball bearing
Life Expectancy	50,000 hours at 25°C
Connector Type	2-pin header (Molex)
Cable Length	30 cm
Component Count	1 fan, 1 housing, 1 cable assembly
Status Indicators	None
Energy Storage	None (no battery or capacitor)
Dimensions (L x W x H)	Approx. 8 cm x 8 cm x 2.5 cm
Weight	Approx. 0.3 kg
Operating Temperature	-10°C to 70°C
Mounting	4 x screw holes

Detailed Technical Analysis

This fan assembly uses a dual ball bearing design for long service life. It delivers 50 CFM of airflow at 3500 RPM. The unit consumes only 3.6 watts from a 24V DC supply. The noise level stays low at 35 decibels for operator comfort.

Now let us examine its installation features. The fan mounts with four screws to the rack enclosure. A 30 cm cable with a 2-pin connector attaches to the power source. The dual ball bearings provide 50,000 hours of continuous operation. The design includes reverse polarity protection for safe installation.

This fan assembly draws 150 milliamps from a 24V DC supply. The ABB Bailey IEFAN02 contains no batteries or capacitors for energy storage. The airflow direction is clearly marked on the fan housing. You can mount the fan as an intake or exhaust unit depending on your needs.

Installation and Wiring Guidelines

You mount this fan to the top or bottom of the INFI 90 rack. Use the four screw holes with M3 screws for secure attachment. Connect the 2-pin connector to the rack’s auxiliary power port. Ensure proper polarity to avoid reverse operation.

Check the airflow direction arrow before final mounting. The fan should pull cool air into the rack or exhaust hot air out. Clean the fan periodically to prevent dust buildup and reduced airflow. Replace the fan after 50,000 hours or if noise increases significantly.

Practical Applications

Engineers use this fan assembly for INFI 90 rack cooling and maintenance. It prevents overheating of densely populated racks. This component also works as a replacement in legacy DCS systems. Its quiet operation suits control room installations.

Summary of Features

To conclude, this fan assembly delivers 50 CFM at 3500 RPM with 35 dBA noise. It weighs 0.3 kilograms and lasts 50,000 hours. Choose ABB Bailey IEFAN02 for reliable rack cooling in INFI 90 systems.
