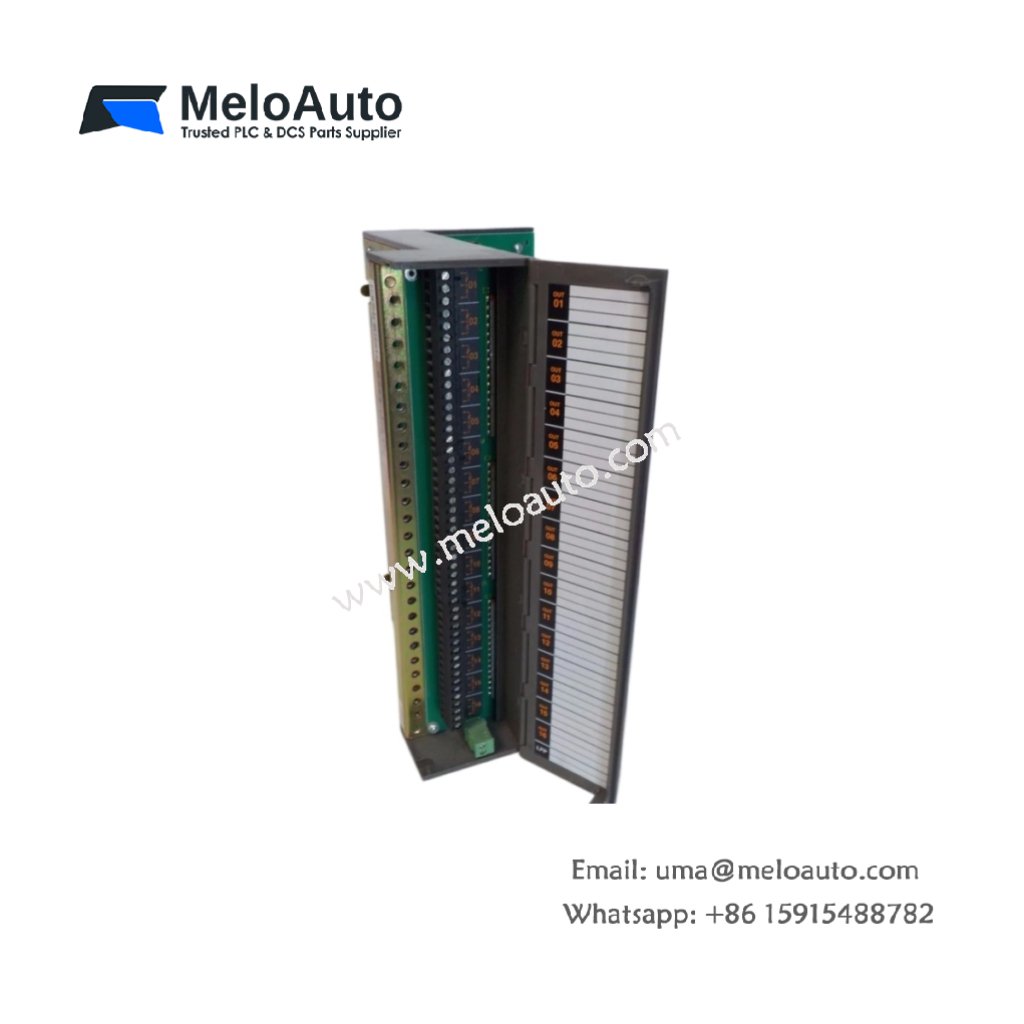

ABB Bailey DOT100 Digital Output Block

Overview

The ABB Bailey DOT100 Digital Output Block offers precise and reliable control for industrial automation systems. It is designed to handle multiple digital outputs, enabling efficient data transmission and system control. With its compact design and robust features, the DOT100 ensures reliable operation in demanding environments, contributing to enhanced system performance.

Key Features

The ABB Bailey DOT100 provides exceptional output capabilities, supporting a wide range of industrial applications. It integrates seamlessly with existing automation systems, providing quick and accurate control. Whether in manufacturing plants or process industries, the DOT100 ensures optimal system functionality and minimal downtime.

Technical Specifications

Feature	Description
Model	DOT100
Manufacturer	ABB
Type	Digital Output Block
Input Voltage	24V DC
Operating Temperature	-20°C to +60°C
Number of Outputs	8 digital outputs
Dimensions	120 mm x 100 mm x 60 mm
Weight	400 g
Mounting	DIN rail or panel mounting
Output Type	Sinking, sourcing
Energy Storage	Capacitor for power hold-up (10 mF)
Protection	Overload and short-circuit protection

Applications

The ABB Bailey DOT100 Digital Output Block is ideal for various industrial automation applications. It is commonly used in control systems, machinery, and process automation. The module ensures that connected devices operate seamlessly, providing reliable digital output signals across various industrial settings.

Advantages

High Output Flexibility: The DOT100 supports both sinking and sourcing outputs, offering compatibility with different system designs.
Robust Protection: It features overload and short-circuit protection, ensuring safe operation in high-demand environments.
Compact and Easy Installation: With its compact design, the DOT100 fits easily into tight spaces, making installation quick and straightforward.
Reliable Performance: Its capacitor ensures stable energy hold-up, minimizing interruptions in system operation.

Conclusion

The ABB Bailey DOT100 Digital Output Block is an essential component for efficient industrial control. Its flexible outputs, reliable protection features, and compact design make it the perfect choice for optimizing digital control in automation systems.
