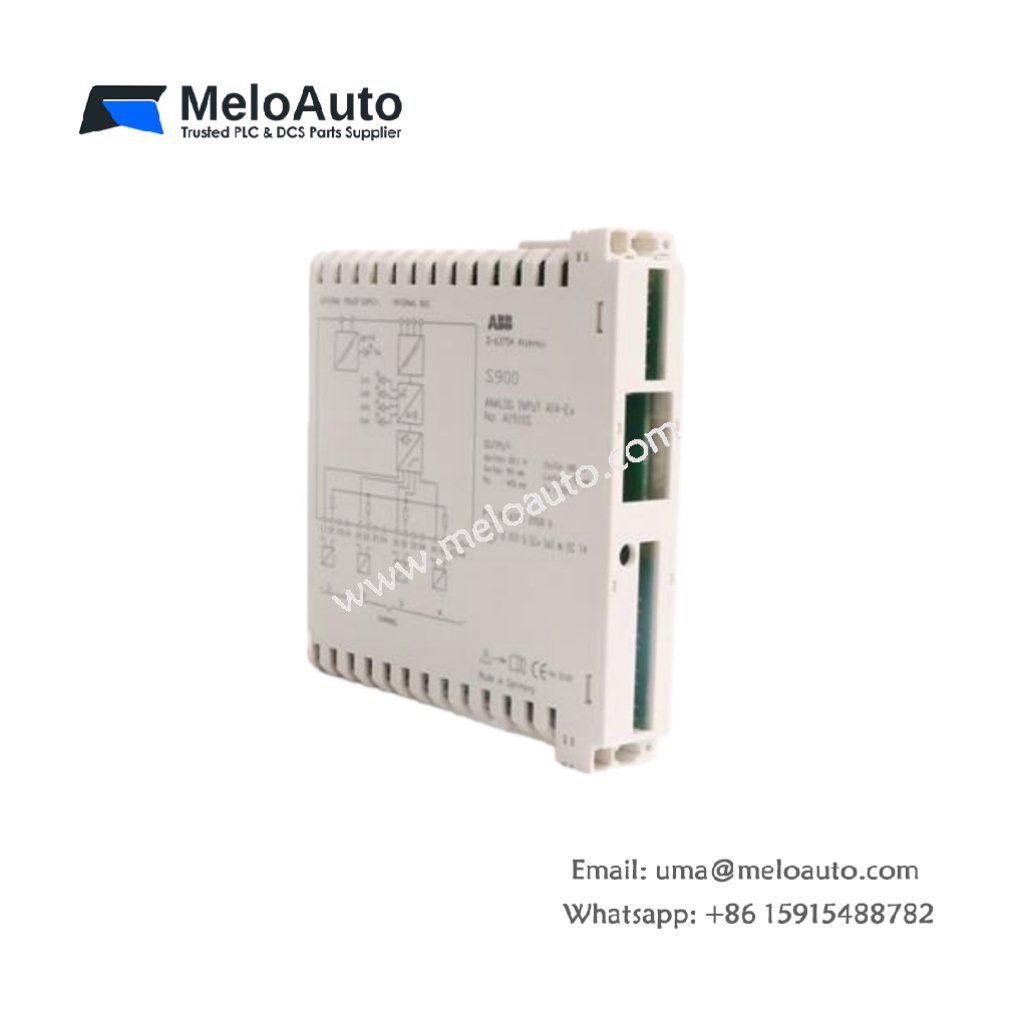

ABB AI910 Analog Input Module

Overview

The ABB AI910 serves as a high-performance analog input module designed for integration with ABB’s 800xA Distributed Control System (DCS). It offers 8 input channels, optimized for 4-20 mA signals, making it ideal for precise process monitoring in demanding industrial environments. This module delivers high accuracy and ensures seamless data acquisition, enabling superior control and monitoring in your automation system.

Key Features

• 8 Input Channels: The ABB AI910 supports 8 differential input channels for 4-20 mA analog signals, offering flexibility for various industrial applications.
• High Resolution: This module provides a 12-bit resolution, ensuring detailed and precise measurements for accurate process control.
• Accuracy: Expect +0.1% accuracy (typical) for reliable readings across all channels.
• High Input Impedance: The AI910 features a high input impedance of >250 kΩ, reducing measurement interference and enhancing signal quality.
• Excellent CMRR: With a >80 dB Common Mode Rejection Ratio (CMRR), the module excels at rejecting noise, ensuring stable signal acquisition in electrically noisy environments.
• Galvanic Isolation: Galvanic isolation between input channels and the power supply ensures safety, protects against electrical faults, and reduces the risk of system damage.
• Power Supply: The module operates with a 24 VDC power supply, providing efficiency and compatibility with standard industrial setups.
• Mounting: The ABB AI910 is designed for DIN rail mounting, making installation quick and hassle-free.

Applications

• Process Control: The ABB AI910 efficiently measures and monitors analog signals, including temperature, pressure, flow, and level, ensuring optimal performance across various industries.
• Integration with ABB 800xA DCS: It integrates seamlessly with the ABB 800xA Distributed Control System, enabling real-time monitoring, control, and feedback.
• Industrial Automation: With broad compatibility, the AI910 fits into various automation setups, providing reliable data for process optimization.

Technical Specifications

Additional Features

• HART Communication Support: The module supports HART communication, enabling easy configuration and diagnostics through standard fieldbus technology.
• Single or Redundant Operation: You can configure the module for either single-channel or redundant operation depending on the needs of your system.
• Diagnostic Capabilities: It includes features for detecting and reporting module faults, channel errors, and other system issues, ensuring reliability and uptime.
• Easy Configuration: The ABB AI910 integrates seamlessly with ABB’s engineering tools, making configuration and system setup fast and efficient.
