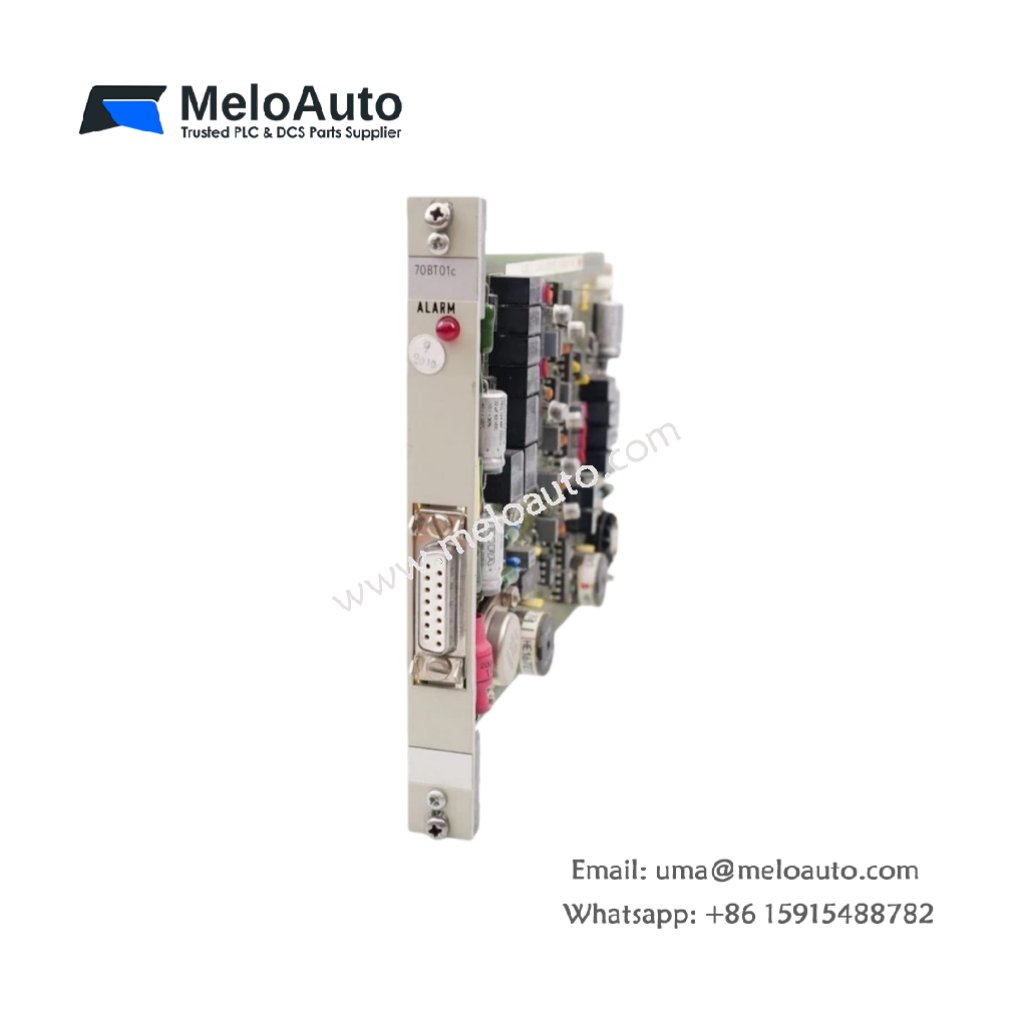

ABB 70BT01C HESG447024R1 Bus Transmitter Module

Overview

The ABB 70BT01C (Part Number: HESG447024R1) is a high-performance bus transmitter module designed specifically for the PROCONTROL-P system. This module ensures reliable, isolated communication between the PROCONTROL-PS protection system and the main control system. It efficiently converts analog signals into digital form, enabling precise data acquisition and seamless industrial data transmission. The 70BT01C supports high-speed communication protocols for optimal performance in industrial environments.

Key Features

Reliable Communication: The ABB 70BT01C HESG447024R1 enables isolated communication between protection and control systems, ensuring data integrity and security.
Analog to Digital Conversion: It converts analog signals into digital form, facilitating high-precision data acquisition for various industrial applications.
Flexible Signal Ranges: The module supports both 0-10 V and 4-20 mA analog signal ranges, allowing for versatile integration into existing systems.
Modbus RTU Protocol: With Modbus RTU and system-specific communication protocols, the 70BT01C ensures compatibility with a wide range of industrial control systems.
Compact and Efficient Design: Designed for DIN rail mounting, it is easy to install and saves space in control panels and industrial enclosures.

Technical Specifications

Parameter	Details
Model	70BT01C
Part Number	HESG447024R1
Function	Bus Transmitter Module
Input Voltage	24 VDC +10%
Power Consumption	Less than 4 W
Communication Protocol	Modbus RTU or system-specific protocols
Data Rate	9600 to 115200 bps
Digital I/O	Configurable digital inputs and outputs
Analog I/O	Supports 0-10 V and 4-20 mA signal ranges
Mounting	DIN rail compatible
Protection Class	IP20
Operating Temperature	-20°C to +60°C (typically 0°C to 60°C)
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95% RH, non-condensing
Dimensions (L x W x H)	20.3 cm x 17.8 cm x 5.1 cm
Weight	0.28 kg

Applications

The ABB 70BT01C HESG447024R1 bus transmitter module is ideal for industrial automation systems where reliable, fast, and isolated communication between control and protection systems is crucial. Its ability to handle high-precision data transmission makes it perfect for applications in energy management, process control, and system monitoring.
