This servo drive controls AC motors for ABB industrial robot systems. It delivers precise current regulation for accurate joint positioning and speed control. Therefore, this component suits robotic applications in welding, painting, and material handling.
Physical Dimensions and Weight Specifications

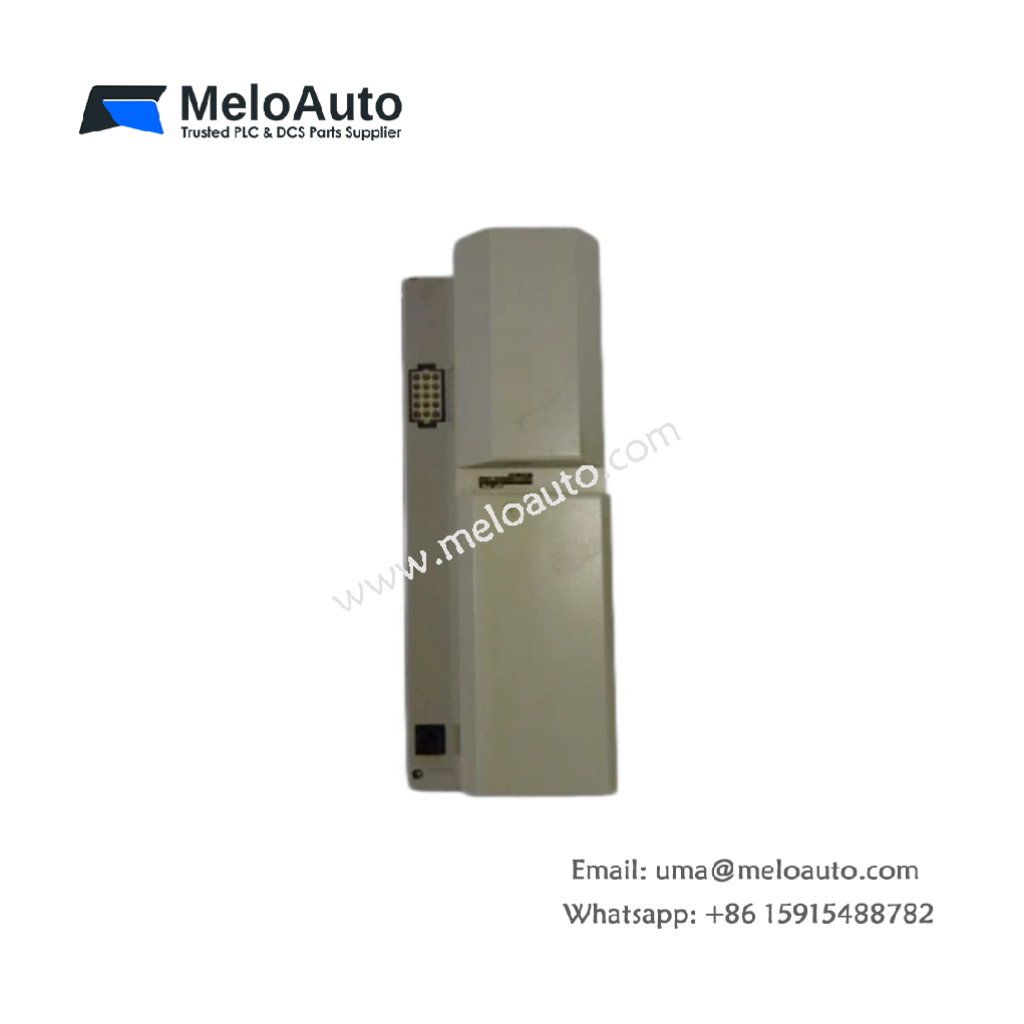

The ABB 3HAB8101-8/07B features a rugged metal housing for heat dissipation. Its width measures 75 mm for standard panel mounting. The total depth reaches 220 mm including the heat sink. Consequently, technicians can install this unit in medium-sized control cabinets.
| Parameter | Specification |
|---|---|
| Product Model | ABB 3HAB8101-8/07B |
| Width | 75 mm |
| Height | 320 mm |
| Depth | 220 mm |
| Weight | 2.65 kg |
Interface Types and Connection Layout
The ABB 3HAB8101-8/07B provides a 15-pin D-sub connector for resolver feedback. A separate 4-pin terminal block supplies three-phase motor power. The front panel carries a 9-pin RS-232 port for configuration software. Hence, users can tune servo parameters without opening the cabinet.
Component Count and Internal Architecture
This servo drive contains one main power board with IGBT modules. The board holds two large electrolytic capacitors for DC bus filtering. You will also find a control board with a 32-bit DSP processor. An onboard braking resistor absorbs regenerative energy during deceleration.
| Technical Feature | Description |
|---|---|
| Input Voltage | 200-240V AC, 3-phase (50/60 Hz) |
| Rated Current | 7A continuous, 12A peak |
| Control Mode | Torque, speed, or position |
| Feedback Interface | Resolver or incremental encoder |
| Communication | RS-232 and optional fieldbus |
Energy Storage and Power Handling
The ABB 3HAB8101-8/07B stores energy in two 1000µF DC bus capacitors. This storage provides 25 ms of ride-through during brief power sags. The unit also features an internal shunt regulator for excess energy. Therefore, the drive handles regenerative loads without external resistors.
Protection Features and Operating Range
The drive includes short-circuit and overcurrent protection on all outputs. It also features overtemperature shutdown with automatic retry. Users can operate this unit in temperatures from 0°C to 50°C. A built-in fan cools the power components under continuous load.
