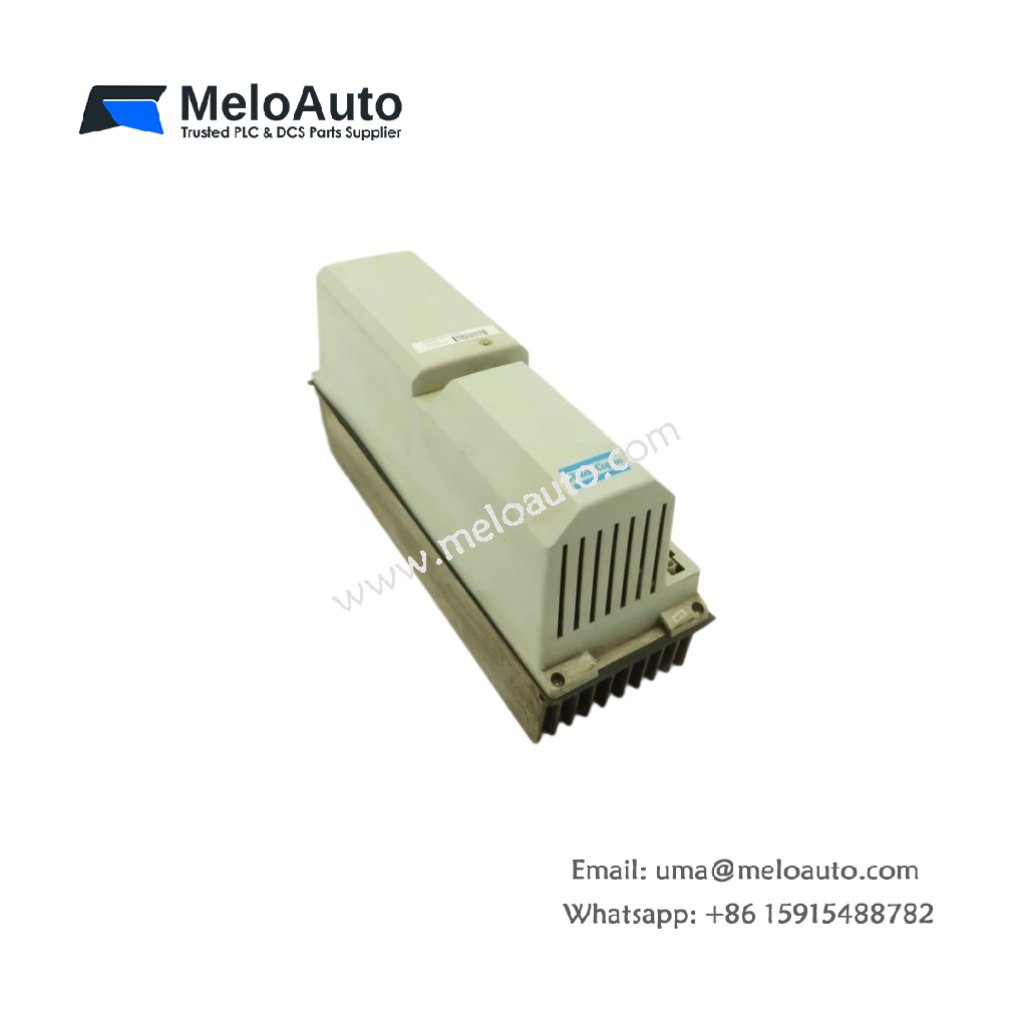

The 3HAB8101-1/03B controls servo motor position and speed for ABB industrial robots. This drive module receives commands from the robot controller and powers the axis motors. You can rely on it for precise robotic arm movements.
Key Technical Parameters
The table below lists all essential technical specifications for this robotic servo drive.
| Specification | Details |
|---|---|
| Part Number | 3HAB8101-1/03B |
| Product Type | Robotic Servo Drive |
| Compatibility | ABB industrial robots (IRC5 series) |
| Number of Axes | 1 axis per drive |
| Input Voltage | 400V to 480V AC (3-phase) |
| Input Frequency | 50 Hz / 60 Hz |
| Output Current | 15 A continuous, 30 A peak |
| Output Frequency | 0 to 400 Hz |
| Control Mode | Position, velocity, torque |
| Feedback Interface | Resolver or encoder |
| Dimensions (W x H x D) | 380 mm x 220 mm x 180 mm |
| Weight | Approx. 4.80 kg |
| Communication Interface | SERCOS or DeviceNet |
| Protection Rating | IP20 |
| Operating Temperature | 5°C to 45°C |
Physical Characteristics and Installation
This servo drive weighs approximately 4.80 kg for secure cabinet mounting. Its dimensions measure 380 mm x 220 mm x 180 mm for robot controller racks. First, slide the 3HAB8101-1/03B into a dedicated drive slot. Then, connect the 3-phase AC input power to the terminal block. Finally, wire the motor feedback and power cables to the front connectors. LED indicators show drive status, fault conditions, and communication activity.
Power Specifications and Motor Control
The 3HAB8101-1/03B accepts 400V to 480V AC three-phase input power. This drive delivers 15 A continuous current for normal robot operation. Peak current reaches 30 A during acceleration and heavy loads. The output frequency ranges from 0 to 400 Hz for wide speed control. Three control modes provide flexible operation. Position mode follows programmed trajectories precisely. Velocity mode maintains constant speed. Torque mode controls applied force.
Feedback and Communication Interfaces
This servo drive accepts resolver or encoder feedback from the motor. A resolver provides rugged position sensing for harsh environments. An encoder offers higher resolution for precision tasks. The 3HAB8101-1/03B uses SERCOS or DeviceNet for real-time command exchange. Consequently, the drive synchronizes perfectly with the main robot controller. The IP20 rating suits installation inside protected electrical cabinets.
