Technical Specifications and Core Features

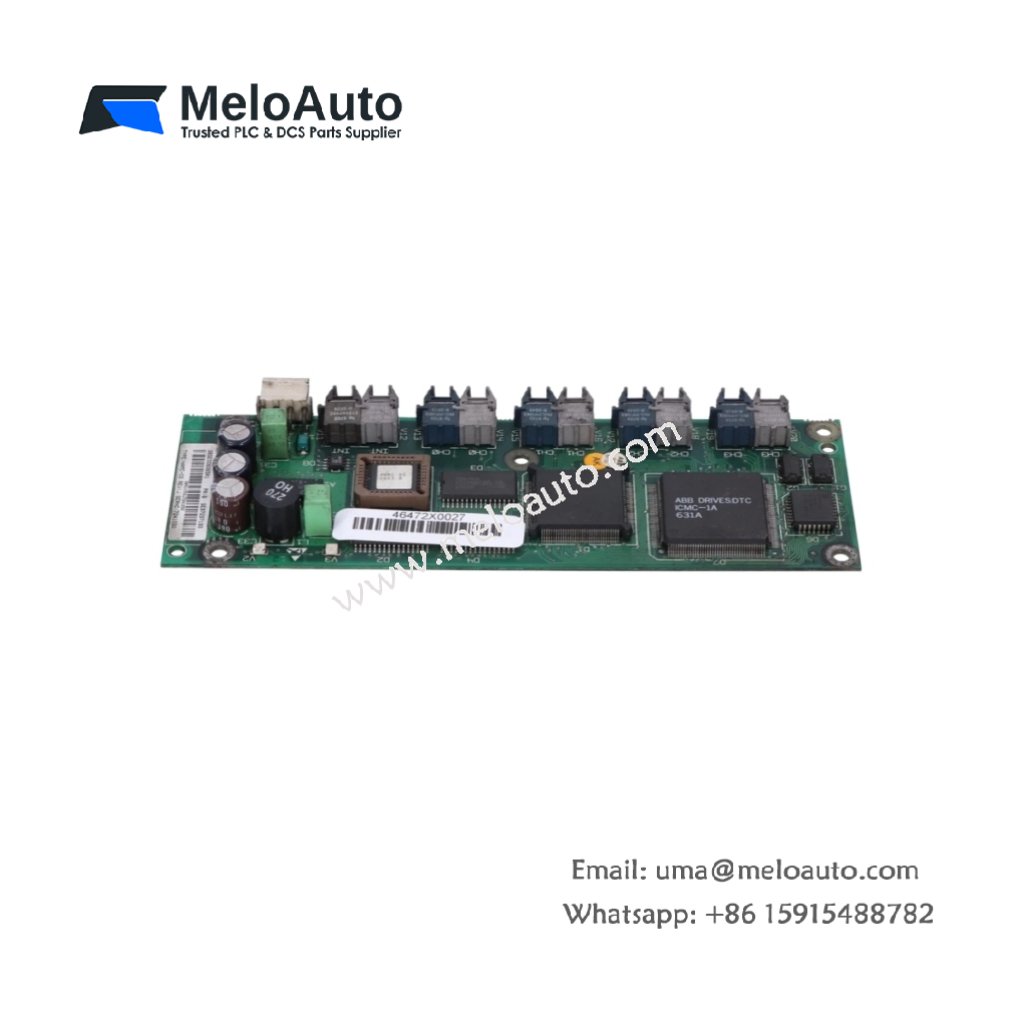

The ABB 3BSE006065R1 inverter control circuit board, also known as the NAMC-03, serves as the main application and motor control board for the ABB ACS600 drive series . This board executes the Direct Torque Control (DTC) algorithm, which ensures high-precision regulation of motor speed, torque, and current . It generates PWM signals and manages I/O operations for comprehensive drive control . The board also features DDCS (Drive-Drive Communication System) fiber-optic communication at 10 Mbaud for reliable data exchange .
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | NAMC-03 |
| Material Number | 3BSE006065R1 |
| Product Type | Application & Motor Control Board |
| Compatible System | ABB ACS600 Drive Series |
| Core Function | DTC algorithm, speed/torque control, PWM generation, DDCS communication |
| Communication Protocol | DDCS (10 Mbaud) |
| Fiber Optic Interface | ST-type multimode, supports up to 2 km transmission |
| Power Supply | 24V DC from backplane |
| Power Consumption | Typically < 10W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| Weight | Approximately 0.5 kg |
| Dimensions (approx.) | 28 x 18 x 20 cm |
| Country of Origin | Sweden |
| Product Status | Discontinued (New Surplus / NOS available) |
Functional Capabilities and Direct Torque Control
The NAMC-03 board functions as the primary control unit for the ACS600 drive. It performs closed-loop motor control and system diagnostics with remarkable precision . The DTC algorithm directly controls motor torque and flux without requiring an encoder, simplifying system design . This approach delivers superior dynamic performance, achieving torque response times of less than 5 milliseconds . The board also supports advanced safety functions such as Safe Torque Off (STO) and Safe Stop 1 (SS1) . Furthermore, it includes comprehensive fault logging capabilities that record the last 10 fault events for effective troubleshooting . The board’s DDCS fiber-optic link supports point-to-point or multi-drop configurations via an NDBU branch unit . This allows for synchronized multi-drive control and communication with上位机 systems. Additionally, the board integrates with ABB software like DriveWare and DriveWindow for configuration and monitoring .
Technical Architecture and Signal Processing
The 3BSE006065R1 board features a modular architecture with clearly defined functional zones. It includes a powerful digital signal processor (DSP) core for executing the DTC algorithm at high speeds . The board also contains onboard memory for storing parameter settings and firmware updates. Its analog input channels accept standard signals such as 4-20mA and 0-10V for process feedback . Meanwhile, its digital input channels support 24V DC signals for start/stop and direction commands. The PWM output stage generates high-frequency switching signals for the IGBT power module . The board provides galvanic isolation between the control and power sections to protect sensitive electronics .
Application Scenarios and System Integration
This control board suits industrial applications that utilize the ABB ACS600 drive series for motion control . It is also compatible with ABB Symphony DCS systems and other industrial automation processes where drives require precise control and high-speed communication . The ABB 3BSE006065R1 serves as a critical replacement or spare part for maintaining legacy drive systems . Typical applications include cranes, hoists, extruders, and high-performance machine tools. Its robust design ensures reliable operation even in harsh industrial environments. For system integrators, this board offers a straightforward replacement path for maintaining existing ACS600 installations.
