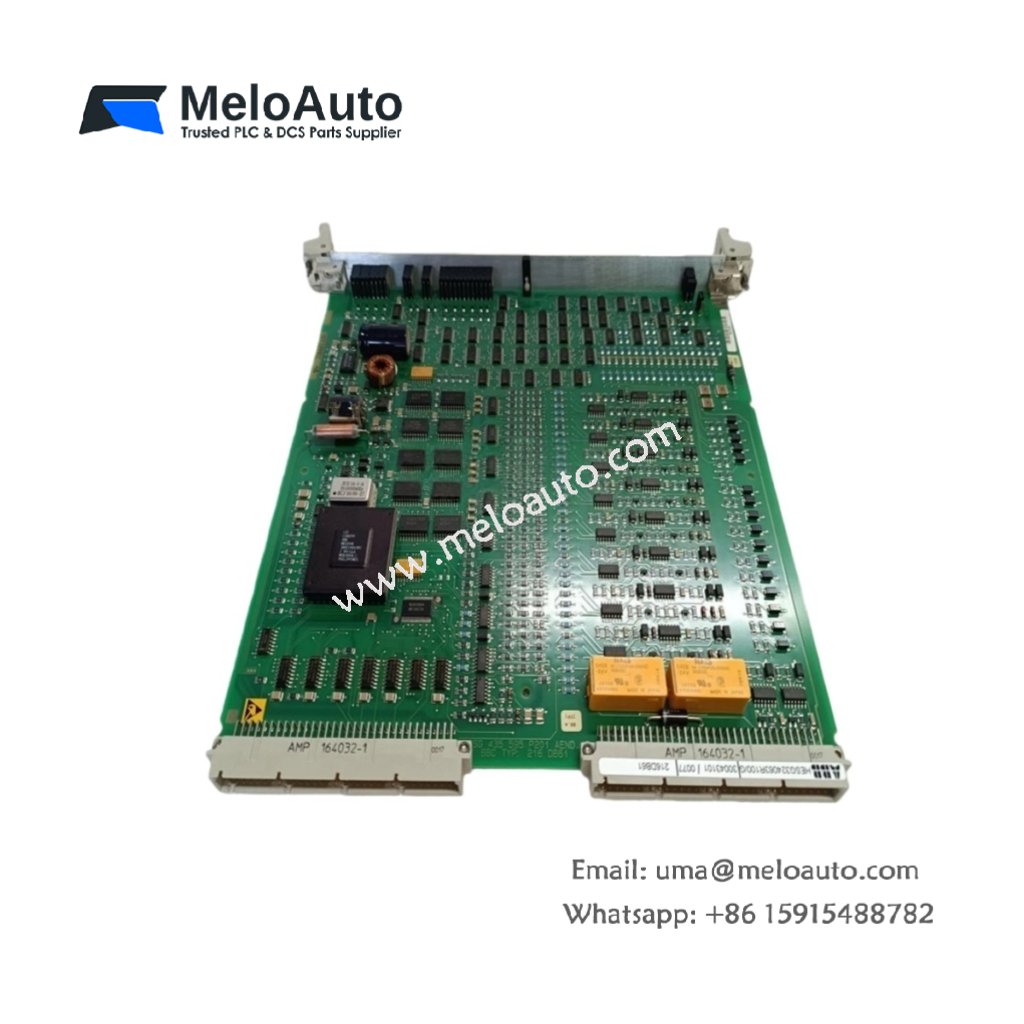

ABB 216EA61B Analog I/P Control Module

The ABB 216EA61B HESG448230R1 HESG324258R12 HE010207-306 HESG324257/E series consists of advanced analog I/P control modules designed for precise current-to-pressure conversion in industrial automation applications. These modules are ideal for pressure regulation and control in process systems, ensuring optimal performance in a wide range of industrial settings. This complete series provides high accuracy and reliability, making it a trusted solution for industrial process control.

Key Features:

Analog I/P Conversion: The 216EA61B HESG448230R1 HESG324258R12 HE010207-306 HESG324257/E modules convert analog current signals (4-20 mA) into precise pressure outputs, providing reliable control in industrial applications.
Seamless Integration: Easily integrates into existing automation systems for a wide range of applications, including valve and actuator control.
High-Precision Control: Offers superior performance in maintaining stable pressure levels and consistent regulation.
Compact and Durable: Designed for durability, the modules are robust and compact, fitting into various system configurations.

Detailed Specifications:

Parameter	Specification
Model	216EA61B HESG448230R1 HESG324258R12 HE010207-306 HESG324257/E
Type	Analog I/P (Current-to-Pressure) Control Unit
Input Signal	4-20 mA
Output Pressure Range	0-2 MPa
Power Supply	24 VDC
Operating Temperature	-40°C to 85°C
Mounting Type	DIN Rail or Panel Mounting
Dimensions	145 mm x 120 mm x 80 mm
Weight	1.2 kg
Response Time	≤ 50 ms
Housing Material	IP65-rated Enclosure

Applications:

Industrial Process Control: Essential for controlling pressure in process systems such as chemical, pharmaceutical, and water treatment industries.
Valve and Actuator Control: Used in applications requiring precise control of actuator movements in control loops.
Flow Control: Suitable for regulating flow rates in various industrial processes that demand high-precision pressure management.
