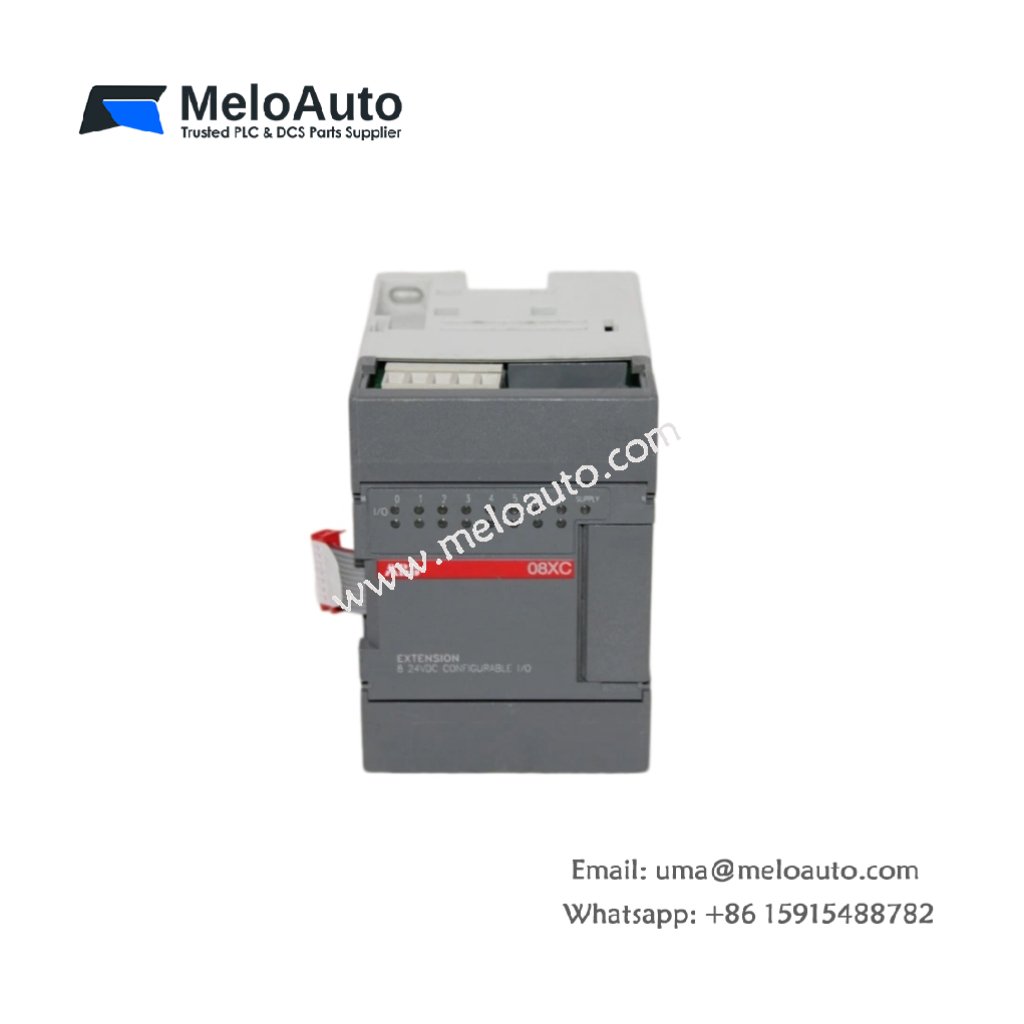

This extension module adds I/O capacity to ABB Advant Controller 31 systems. It connects to the main rack via the backplane bus for seamless integration. Therefore, this component enables system expansion without replacing existing hardware.
Physical Dimensions and Weight Specifications
The ABB 1SBP260132R1001 occupies one standard slot in the Advant chassis. Its housing measures 250 mm in depth for backplane connectivity. The module weighs approximately 0.52 kg for straightforward handling. Consequently, technicians can install this unit without additional rack reinforcement.
| Parameter | Specification |
|---|---|
| Product Model | ABB 1SBP260132R1001 |
| Slot Width | 1 x standard Advant slot |
| Height | 265 mm |
| Depth | 250 mm |
| Weight | 0.52 kg |
Interface Types and Connection Layout
The ABB 1SBP260132R1001 provides a 48-pin front connector for field wiring. A 20-pin backplane connector supplies power and data from the CPU. The front panel carries LED indicators for each input and output channel. Hence, operators can monitor all signal states at a quick glance.
Component Count and Channel Configuration
This extension module contains one main board with 8 digital input channels. The board holds 8 digital output channels for actuator control. You will also find optocoupler isolation between the field and backplane. An onboard microcontroller handles channel scanning and diagnostics.
| Technical Feature | Description |
|---|---|
| Digital Inputs | 8 x 24V DC, optically isolated |
| Digital Outputs | 8 x 24V DC, 0.5A per channel |
| Input Current | 7 mA typical per channel |
| Isolation Voltage | 1500V AC |
| Response Time | 3 ms for both inputs and outputs |
Energy Storage and Power Consumption
The ABB 1SBP260132R1001 draws 90 mA from the 5V backplane supply. It also requires 80 mA from an external 24V supply for field circuits. A small capacitor bank filters noise on the output power rail. This storage prevents false triggering from voltage transients.
Signal Processing and System Integration
The module scans inputs and updates outputs every 3 ms cycle. Users can configure output fallback states for safety during CPU errors. This extension module supports hot-swap replacement without powering down. Therefore, maintenance occurs without interrupting production.
